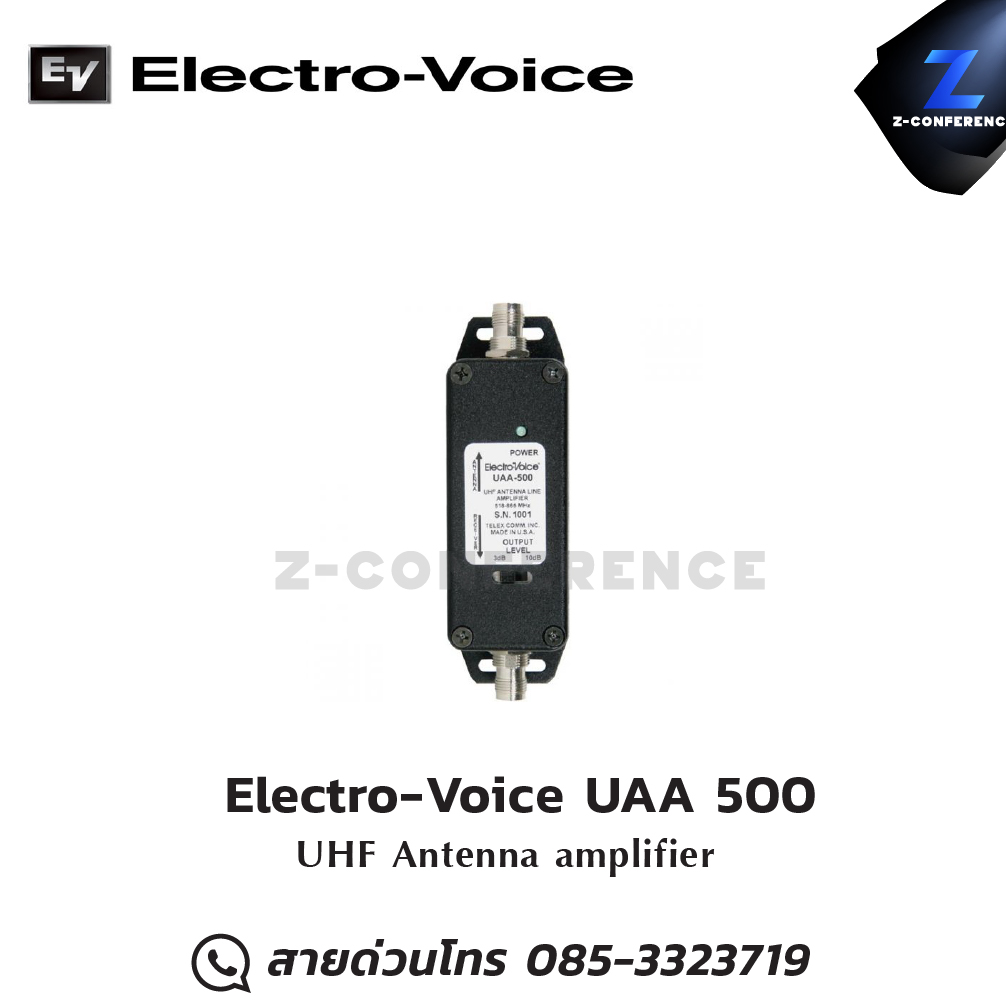

Specifications
- 3 or 10dB selectable gain
- Green LED to indicate power
- Requires phantom power from APD4+ or REV receiver
- Wideband 500 – 900 MHz operating range
Cast aluminum case with mounting tabs
Case Material Cast Aluminum
Connector Type TNC Female
Operating Current 65 mA typical
Operating Voltage 12 VDC
RF Frequency Range 500-900 MHz
RF Signal Gain 3 or 10 dB
Third Order Intermod 30 dBm
Height 119 mm (4.69")
Width 38 mm (1.5")
Depth 32 mm (1.26")
