Specifications
System
Type of System UHF Frequency Agile Diversity
RF Carrier Frequency Range Band A – 648 – 676MHz (TV Channels 43 – 48)
Approx. Working Range 300′
Overall Frequency Response 50 – 15kHz +/- 2dB
Signal-to-Noise Ratio > 100dB (A)
# Of Channels 1,112 – programmable in 25kHz steps across 24MHz bandwidth
# Of Simultaneous Systems 16 – for additional consult with EV about custom programmed frequency groups
Receiver
Type of Receiver Synthesized PLL Agile UHF
Type of Outputs Balanced: 3-pin XLR – mic level
Unbalanced: 1/4″ Phone – adjustable line level
Headphone Monitoring No
Power Requirements 12V AC/DC 300mA
Battery Type/Approx. Life AC powered only
Display Backlit LCD
Mounting Options Rack Mountable
Antenna Type Detachable 1/4 wave
Dimensions 1.72 x 7.50 x 5.90″ (43.69 x 190.50 x 150.00mm) (H x W x D)
Weight not specified by manufacturer

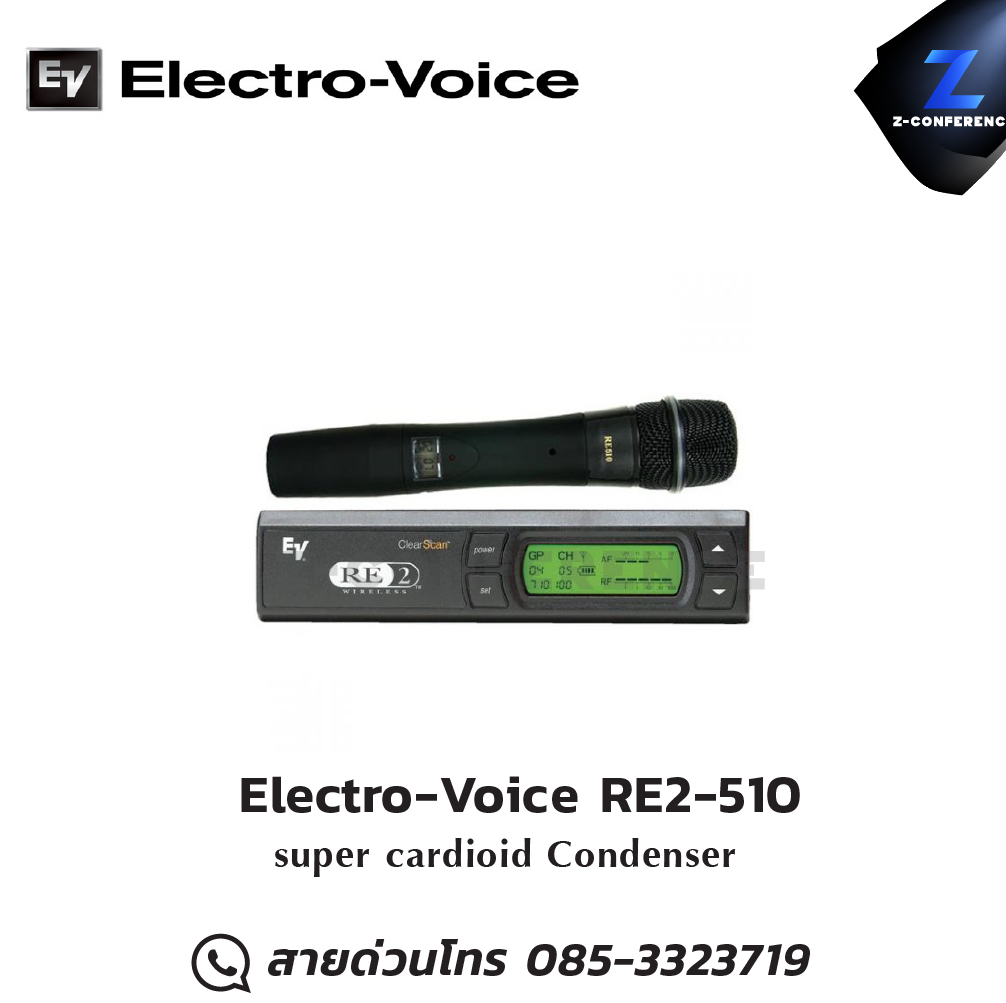

Handheld Transmitter
Type of Transmitter UHF Frequency Agile Handheld
Type of Input Connector not applicable
Type of Microphone RE510
Polar Pattern Super-cardioid
Interchangeable Mic Heads No
Battery Type/Approx. Life 8 hours with 9-Volt alkaline battery (typical)
Mute Switch On / Off & Mute Switch (combined)
Level Control Gain Adjustment: 40dB range
Microphone / Instrument Switch: 0, -20dB
Antenna Type Internal 1/4 wave detachable
Display Backlit LCD
Displays – Group, Channel, Frequency and Low Battery Level
Red LED
Low Battery Indicator
Dimensions 10.5″ (26.8cm) (Long)
Weight not specified by manufacturer
Packaging Info
Package Weight 5.95 lb
Box Dimensions (LxWxH) 16.8 x 12.0 x 4.1″
