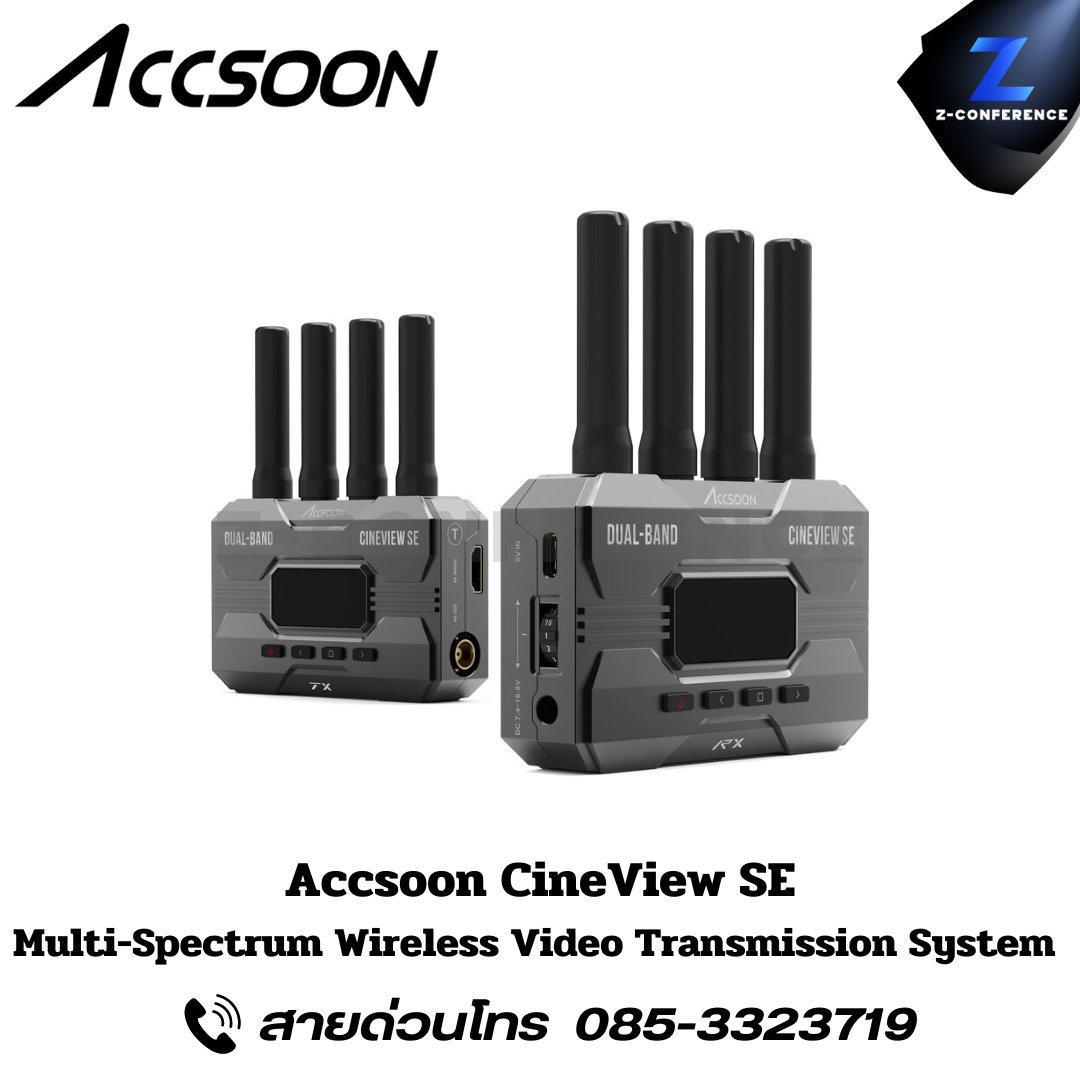

CineView SE Multi-Spectrum Wireless Video Transmission System from Accsoon has been updated from previous models with an even smaller and lighter form factor. With the SE, you can now send signal to a total of four devices simultaneously over distances up to 1200′ with only a 50ms delay, and you can still transmit to any mix of receivers and iOS/Android smartphones and tablets.
Like other models, the CineView SE allows you to send a 1080p60 camera signal to the included receiver plus up to three mobile devices. This versatile wireless video transmission system provides a cost-effective way of allowing four people on set to monitor an HDMI or SDI camera signal. Its Quad technology allows you to transmit exact copies of your transmission over 2.4 and 5 GHz signals for redundant, high-quality images.
The included dedicated receiver is easy to set up and pair, and it features an HDMI and SDI output. The free-to-download companion app installs on a tablet or smartphone and it features image tools such as peaking, zebras, false color for exposure, and .cube 3D LUT overlay, and new features include Smart Sharpening and Onion Skin overlay. The transmitter and receiver feature DC power inputs, USB Type-C power inputs, and they also support an optional L-series battery that can power the set for up to 12 hours.
Video I/O |
Transmitter: 1 x HDMI Input
Transmitter: 1 x BNC (3G-SDI) Input Receiver: 1 x HDMI Output Receiver: 1 x BNC (3G-SDI) Output |
Embedded Audio |
HDMI/SDI
|
Video I/O |
Transmitter: 1 x HDMI Input
Transmitter: 1 x BNC (3G-SDI) Input Receiver: 1 x HDMI Output Receiver: 1 x BNC (3G-SDI) Output |
Embedded Audio |
HDMI/SDI
|
Audio I/O |
None
|
Power |
Transmitter/Receiver: 1 x Barrel 2.1 mm (16.8 VDC) Input
Transmitter/Receiver: 1 x USB-C (5 VDC) Input |
Encryption |
None
|
Wireless Range |
1200′ / 365.8 m
|
# of Channels |
20
|
Frequency Range |
2412 to 2472 MHz
5180 to 5580 MHz 5660 to 5825 MHz |
Latency |
< 50 ms
|
RF Power |
17 dBm
|
Wi-Fi |
Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)
|
Bluetooth |
None
|
Video Format |
HDMI/SDI/Wireless
1080p: 60/59.94/50/30/29.97/25/24/23.98 |
Audio Format |
2-Channel 24-Bit 48 kHz PCM Audio
|
Timecode Support |
No
|
DC Input Power |
7.4 to 16.8 VDC
|
Battery Type |
Transmitter/Receiver: 1 x L-Series
|
Power Consumption |
Transmitter: 4.5 W (Typical)
Receiver: 3.5 W (Typical) |
Mounting |
1 x 1/4″-20 Female
|
Environmental Protection |
None
|
Operating Temperature |
22 to 72°F / -10 to 40°C
|
Material of Construction |
Aluminum
|
Dimensions |
Transmitter/Receiver: 4.1 x 2.6 x 1.3″ / 10.5 x 6.6 x 3.2 cm
|
Weight |
Transmitter/Receiver: 7.4 oz / 210 g, Including Antenna
|
