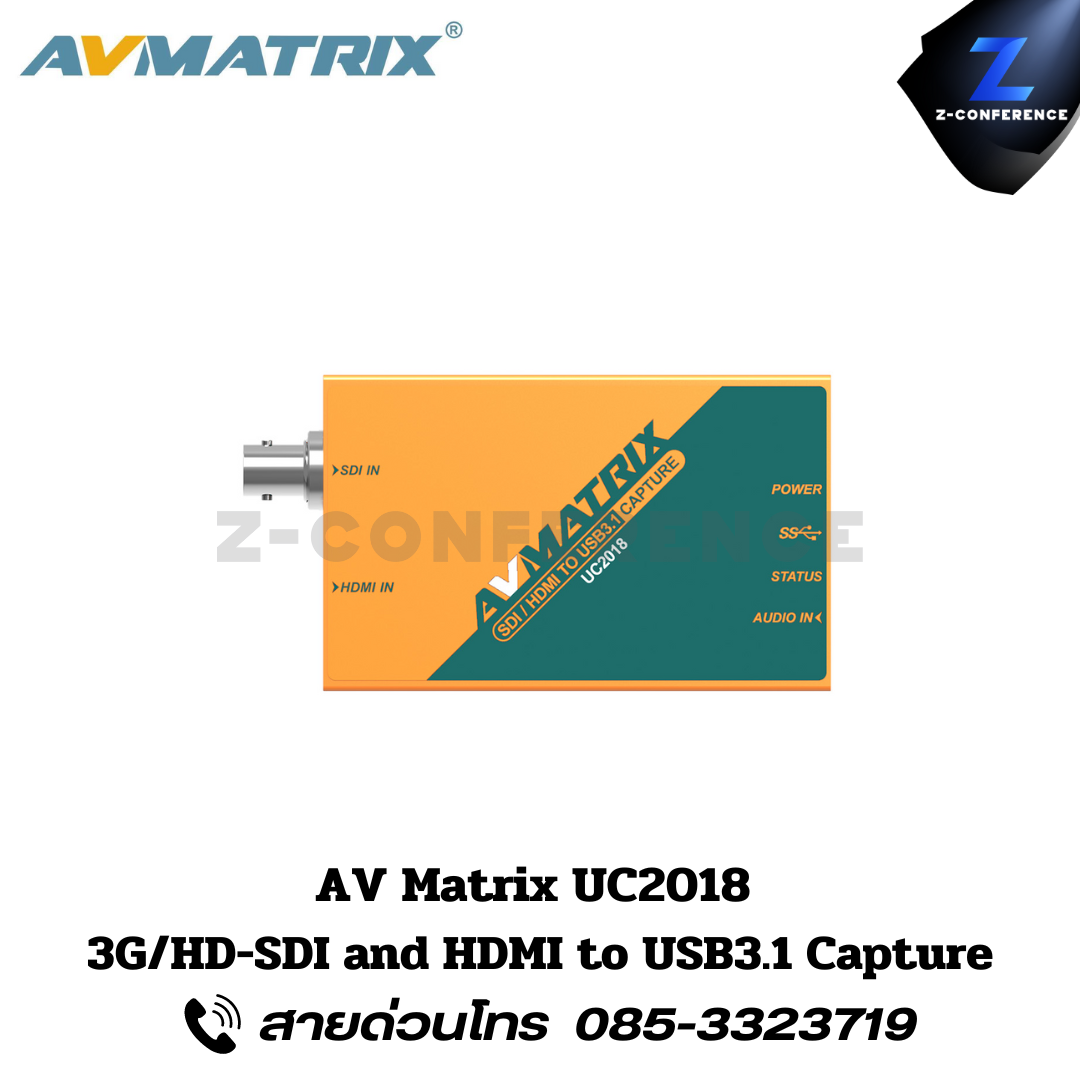

AVMATRIX UC2018, 3G/HD-SDI and HDMI to USB 3.1 Capture, การ์ดแคปเจอร์, แคปเจอร์การ์ด, sdi to hdmi,

– Plug and Play,
– Free drive, standalone
– Capture HDMI or 3G/HD-SDI video with HDMI loopout,
– USB3.0 transmission rate up to 300~ 350MB/s.USB3.0
– chipset (Intel, Renesas, ASMedia, Fresco Logic etc.) and withPCIe Gen 1.1 x1 expansion via USB3.0 interface.
– Supports analog stereo audio extract from SDI source.
– Windows, Linux, OS X operating systems.
– VLC, OBS, XSPLIT and AMCAP etc. PC capture software.Multiple dongles to one machine,
– USB power supply.

– Input interface 1×SDI, 1×HDMI 1.4a
– Output interface 1×USB3.0 (compatiable USB2.0),1×HDMI local loop out
– Audio input format HDMI/SDI embedded audio

Input format
– HDMI 1.4a compliance, Support 1080P/60hz 8-bit,(RGB,YUV)
– SD/HD/3G-SDI, SMPTE-259/274/296/372/424/425/292 compliance
– HDMI sampling rate 165MHz
– USB3.0 output format 1920×1080, 1920×960, 1680×1050, 1280×720, 1024×768, 960×540, 720×576, 720×540, 720×480, 640×480, 640×360
– Frame rate 25/29.97/30/50/59.94/60fps
– Audio input format 1×PCM stereo audio
– Video & audio capture UVC (USB video class) & UAC (USB audio class) standard
– Output color space YUY2
– Supports OS Windows 7, Windows 10
– CONNECTION FORMAT OTHERS /8/10, Linux (Kernel version 2.6.38 and above), OS X (10.8 and above)
-Software compatibility OBS (Windows), Windows Media Encoder (Windows), Adobe Flash Media
-Live Encoder (Windows, OS X), VLC (Windows, OS X, Linux), QuickTime Broadcaster (OS X), QuickTime Player (OS X), Wirecast (Windows, OS X) and Potplayer (Windows) etc.
-Compatible SDK DirectShow (Windows), DirectSound (Windows)

Dimensions 99.6×70×24

Weight 114g

Power consumption 3W
