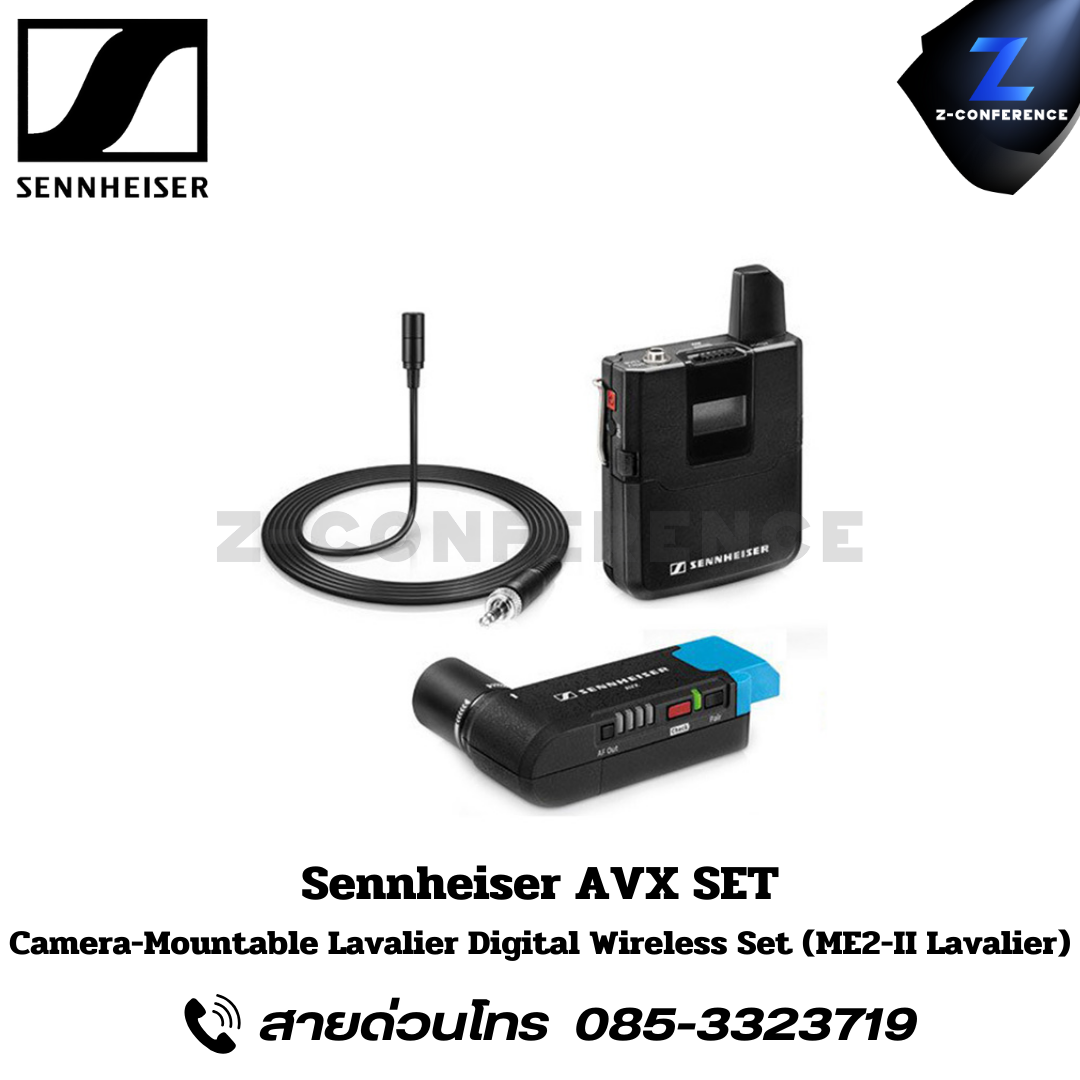

Sennheiser AVX Camera-Mountable Lavalier Digital Wireless Set (ME2-II Lavalier)
PRODUCT HIGHLIGHTS

EKP XLR Receiver
SK Bodypack Transmitter
ME2-II Lavalier Microphone
Plug and Record Functionality
Automatic Sensitivity Adjustment
Receiver Switches On/Off Via 48V
AES 256-bit Encryption
Metal Housing

ME 2 Lavalier Mic
Transducer Electret Condenser
Polar Pattern Omnidirectional
Frequency Response 30 Hz – 20 kHz
Sensitivity 20 mV/Pa (in free field, no load @ 1 kHz)
Equivalent Noise Level 36 dB
Maximum Sound Pressure Level (SPL) 130 dB (passive)
Power Requirements Phantom Power Provided by Wireless Transmitter
Operating Voltage 7.5 V (stand alone)
Output Connector 1/8″ (3.5 mm) Mini-Jack (Unbalanced)
Applications Speakers, Hands-free vocals, broadcast, live performance, wireless videography, etc.
Cable Length 5.25′ (1.6 m)
Dimensions Not Specified by Manufacturer
Weight Not Specified by Manufacturer
Packaging Info
Box Dimensions (LxWxH) 3.2 x 2.6 x 0.4″
AVX Digital Bodypack Transmitter (CH 8: 1920 to 1930 MHz)
System
Frequency Response 20 to 20,000 Hz
Dynamic Range > 120 dB (A)
THD Typical 0.1%
Audio Sampling 24-bit at 48 kHz
Signal to Noise Ratio > 90 dB (A)
RF Frequency Range 1880 to 1930 MHz (country specific)
Modulation GFSK with return channel
Diversity TDMA fast switching antenna diversity
Latency 19 ms
Temperature Range Operation: 14 to 131° F (-10 to +55° C)
Storage: -4 to 158°F (-20 to +70°C)
Simultaneous Operation of Units Up to 8 units simultaneously under optimal conditions
Transmitter
Transmission Power 100 mW average (250 mW peak), country specific
Frequency Response Mic: 50 to 20,000 Hz
Line: 20 to 20,000 Hz
Microphone Max Input Level Mic: 2.2 V RMS
Line Max Input Level 3.3 V RMS
Input Impedance 1 MOhm
Input Sensitivity Automatic sensitivity adjustment
Power Supply Optional Battery: Li-ion 3.7 V
Operating Time Typical: 15 hour with Energy pack
Input Connector 1/8″ (3.5 mm) jack
Weight 3.1 ounces (87.0 g) excluding energy pack
Packaging Info
Box Dimensions (LxWxH) 13.8 x 3.3 x 2.7″
AVX EKP Camera Plug-On Digital Wireless Receiver (CH 8: 1920 to 1930 MHz)
System
Frequency Response 20 to 20,000 Hz
Dynamic Range > 120 dB (A)
THD Typical 0.1%
Audio Sampling 24-bit at 48 kHz
Signal to Noise Ratio > 90 dB (A)
RF Frequency Range 1880 to 1930 MHz (country specific)
Modulation GFSK with return channel
Diversity TDMA fast switching antenna diversity
Latency 19 ms
Temperature Range Operation: 14 to 131° F (-10 to +55° C)
Storage: -4 to 158°F (-20 to +70°C)
Simultaneous Operation of Units Up to 8 units under optimal conditions
Receiver
RF Sensitivity4 hours
Weight 3 oz (85 g)
Packaging Info
Box Dimensions (LxWxH) 12.7 x 6.7 x 2.9″
