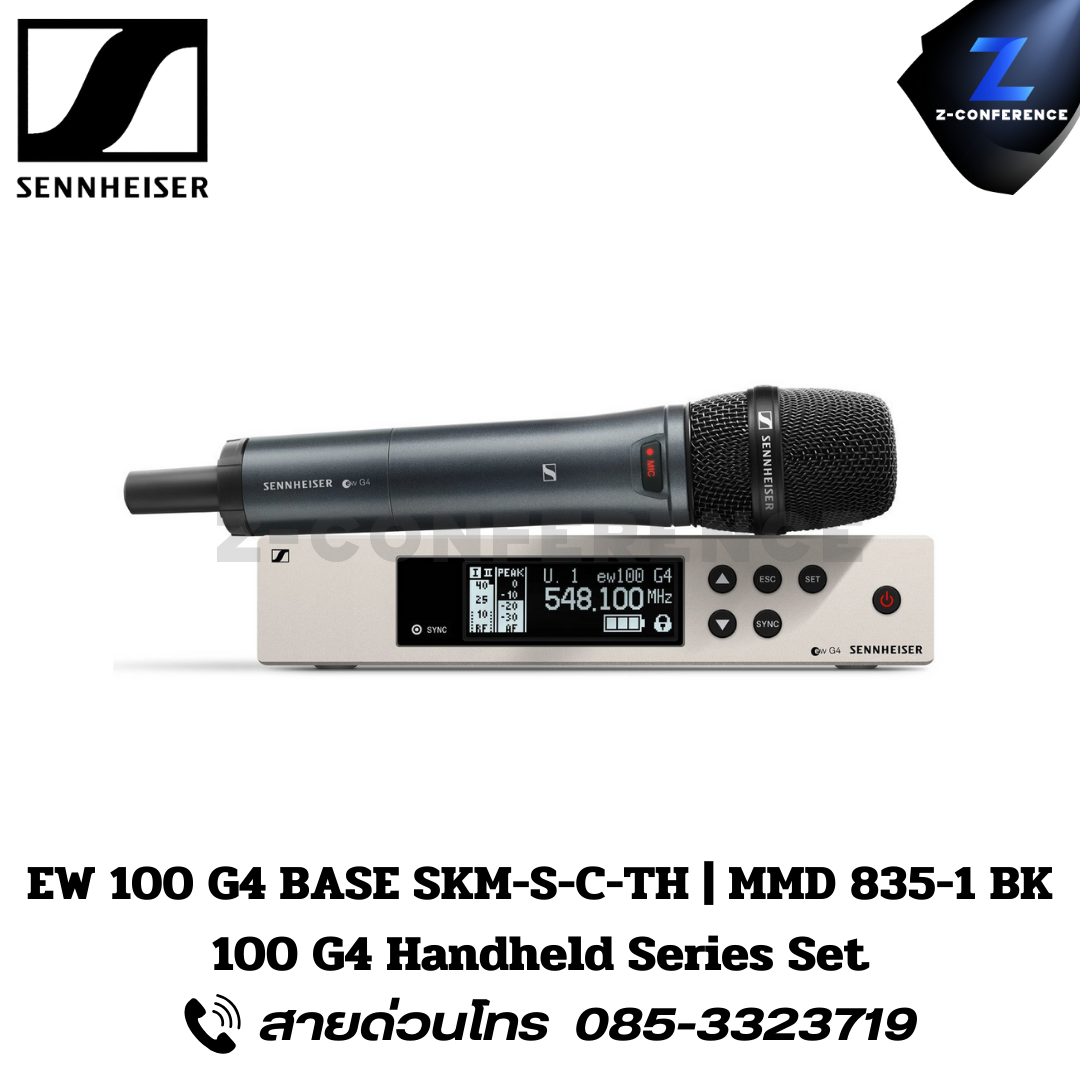

EW 100 G4 BASE SKM-S-C-TH | MMD 835-1 BK, 100 G4 Handheld Series Set, senhierser microphone, microphone, mic, ไมค์, ไมค์โครโฟน, ไมค์ลอย, ไมค์ไร้สาย,

EM 100 G4

• Frequency range



  A1: 470 – 516 MHz

  A: 516 – 558 MHz

  AS: 520 – 558 MHz

  GB: 606 – 648 MHz

  G: 566 – 608 MHz

  B: 626 – 668 MHz

  C: 734 – 776 MHz

  D: 780 – 822 MHz

  E: 823 – 865 MHz

  1G8: 1785 – 1800 MHz

  JB: 806 – 810 MHz

  K+: 925 – 937,5 MHz

• Dimensions



  Approx. 190 x 212 x 43 mm

• Compander



  Sennheiser HDX

• THD, total harmonic distortion



  ≤ 0.9 %

• Weight



  Approx. 980 g

• Audio output



  6.3 mm jack socket (unbalanced): +12 dBu

  XLR socket (balanced): +18 dBu

• Signal-to-noise ratio



  ≥ 110 dBA

• Switching bandwidth



  up to 42 MHz

• Peak deviation



  ±48 kHz

• Nominal deviation



  ±24 kHz

• Modulation



  Wideband FM

• Power supply



  12 V DC

• Antenna connector



  2 BNC sockets

• Current consumption



  300 mA

• Adjacent channel rejection



  Typically ≥ 65 dB

• Intermodulation attenuation



  Typically ≥ 65 dB

• Receiving frequency



  Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels

• RF sensitivity



  < 2.5 μV for 52 dBA eff S/N

• Squelch



  low: 5 dBµV middle: 15 dBµV high: 25 dBμV

• Equalizer



  Preset 1: Flat

  Preset 2: Low Cut (-3 dB at 180 Hz)

  Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)

  Preset 4: High Boost (+6 dB at 10 kHz)

• Temperature Range



  -10 °C to +55 °C

• Receiver Principle



  True diversity

• Blocking



  ≥ 70 dB

SKM 100 G4-S

• Dimensions



  Approx. Ø 50 x 265 mm

• Compander



  Sennheiser HDX

• THD, total harmonic distortion



  ≤ 0.9 %

• Weight



  (incl. batteries) approx. 450 g

• Signal-to-noise ratio



  ≥ 110 dBA

• RF output power



  Max. 30 mW

• Switching bandwidth



  up to 42 MHz

• Peak deviation



  ±48 kHz

• Nominal deviation



  ±24 kHz

• Operating time



  Typically 8 h

• Modulation



  Wideband FM

• Power supply



  2 AA batteries, 1.5 V or BA 2015 accupack

• Current consumption



  at nominal voltage: typ. 180 mA

  with transmitter switched off: ≤ 25 µA

• Input impedance



  40 kΩ

• Max. Input voltage



  3 Veff

• Powering



  3 V battery / 2.4 V rechargeable battery

• Transmission frequency



  Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels

• AF frequency response



  80 – 18,000 Hz

• Temperature Range



  -10 °C to +55 °C

• Frequency stability



  ≤ ±15 ppm

MMD 835-1

• Sound pressure level (SPL)



  154 dB SPL

• Transducer principle



  dynamic

• Pick-up pattern



  cardioid
