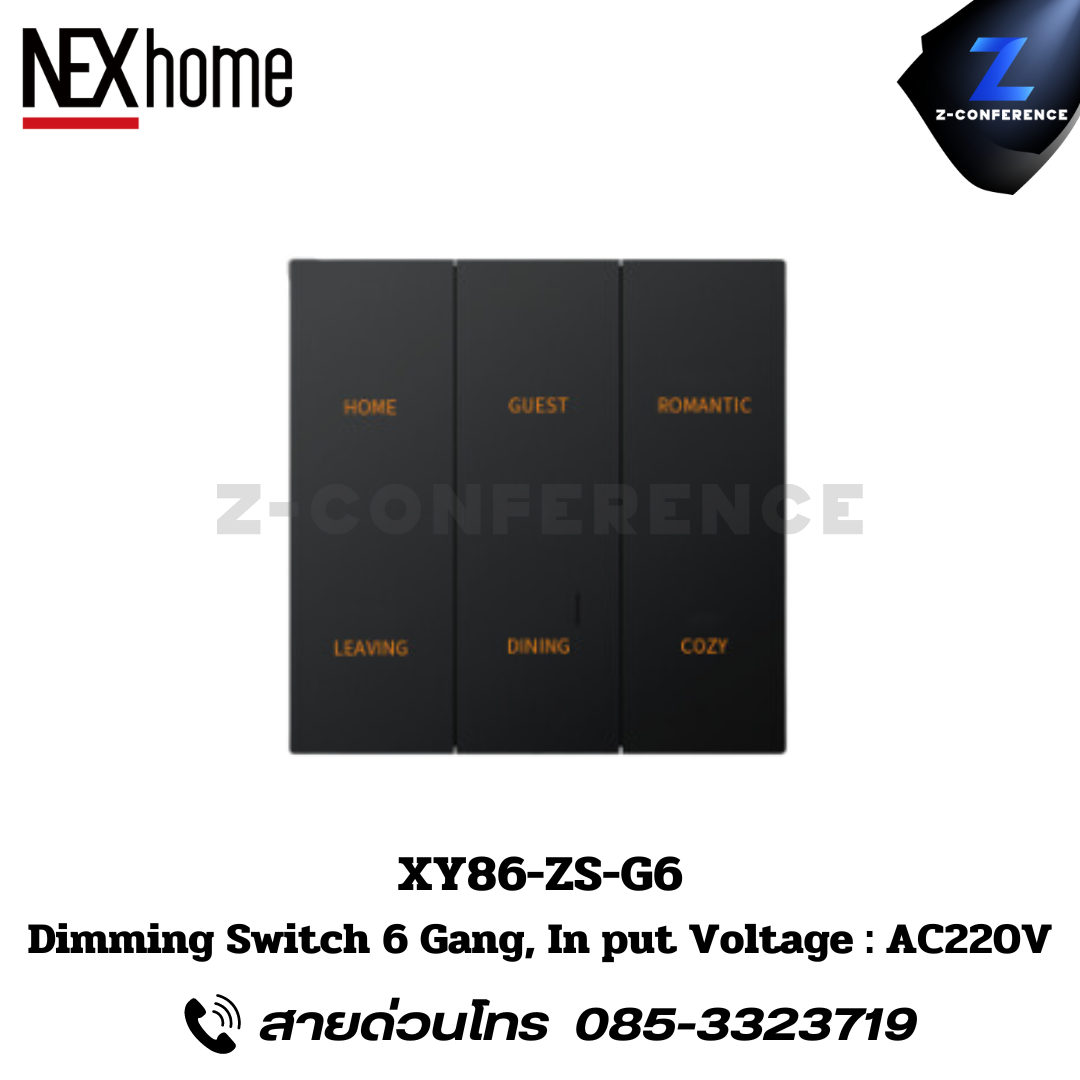

XY86-ZS-G6 6-button dimming switch
Input voltage: Neutral + Phase wire AC220V±10% 50/60Hz
Working frequency: 2.4GHz
Protocol: ZigBee 3.0
Dimming circuit: 2 channels, SCR dimming
Mechanical buttons: 6
Load power: 600W/channel (resistive load)
100W/channel (inductive or capacitive load)
Network organization: ZigBee self-organizing network
Size: 86×86×36 mm
Installation: Standard box 86
(Standard colors: black, white, gray, gold; the black frame cannot be customized, the invisible frame has a corresponding color scheme)
