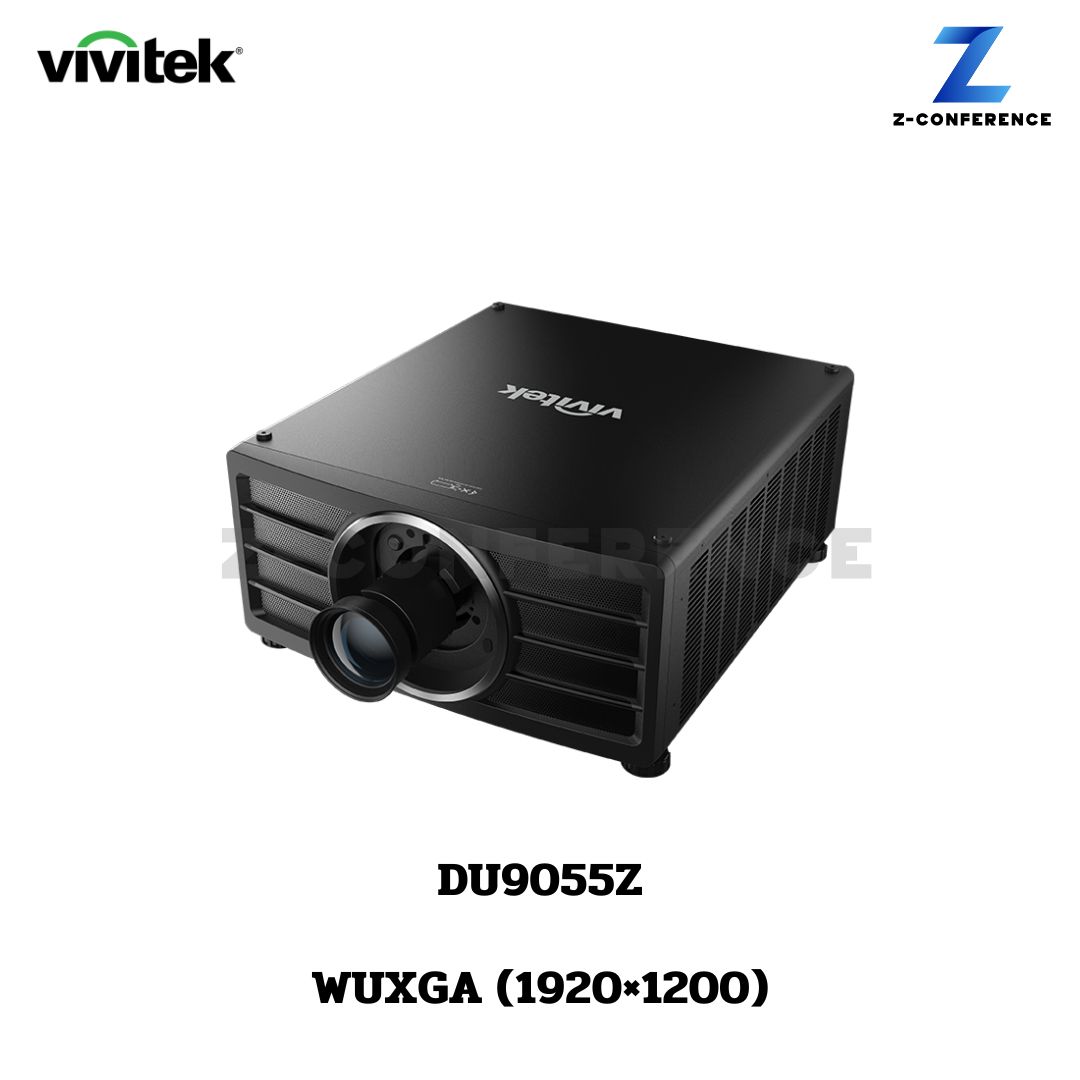

Projector Vivitek DU9055Z Laser Projector (24,000 lumens)
DLP® technology with dual laser 4 corner geometric adjustment ,รองรับ HDBaseT™,Warping,Edge blending ฟังก์ชั่นจดจําการตั้งค่าเลนส์เปลี่ยนเลนส์ได้ 7 ชนิด ,PJ Control Tool
-
Specifications
-
CATEGORY |
SPECIFICATION |
Projection System |
1-Chip DLP™ 0.96 inch |
Resolution |
WUXGA (1920 x 1200) |
Light Source |
Dual Laser Technology |
OPTICS |
Brightness |
24,000 lm |
Brightness Uniformity |
90% |
Contrast Ratio |
1,500:1 (Native) / 20,000:1 (Dynamic) / 3,000,000:1 (Full On/Off) |
Light Source Life |
20,000 hrs (Normal) |
Lens Type |
Optional (D98/D99 Lenses) |
Zoom Ratio |
Base On Lens Spec |
Lens Throw Ratio |
0.38:1 / 0.9~1.20:1 / 1.2~1.56:1 / 1.5~ 2.0:1 2.0~4.0:1 / 4.0~7.0:1 |
Lens Shift – Horizontal (Full Image Width) |
+15% ~ -15% |
Offset (Full Image Width) |
+50% ~ -50% |
GEOMETRY ADJUSTMENT |
Keystone Correction |
Yes (H/V) |
Four Corner Adjustment |
Yes |
I/O TERMINAL |
HDMI |
2.0 x2 |
SDI |
12G-SDI In x1 / Out x1 |
DVI-D |
x1 |
D-Sub |
N/A |
3D Sync |
3D SYNC IR x1 / SYNC In x1 / SYNC Out x1 |
RJ45 |
HDBaseT x1, LAN x1 |
RS-232 |
In x1 |
Wire Remote |
In x1 / Out x1 |
Speaker |
10W x2 |
USB |
Type A*1 (Power Only 5V/2A) x1 |
12V Trigger (mini Jack) |
x1 |
SYSTEM |
Power Supply |
AC 100-240V 50/60Hz |
Power Consumption ±5% |
1400W@220Vac(Normal) / 1050W@220Vac (Eco) |
Standby Power |
< 1.0W (Network Off) / < 6.0W( Network On) |
Acoustic Noise ±5% |
Normal 47dB / Eco 45dB |
Dimension ±2% |
676.6 x 598.8 x 270mm |
Weight ±1kg |
45.4 kg |
3D Display |
Active |
24×7 Operation |
Yes |
Dust Proof*4 |
IP6X (Óptico Engine) |
Operation Oreinetation |
360˚ free installation |
Operation Environment |
Temp. 5~40˚C / Humidity10~85% |
Storage Environment |
Temp. -10~60˚C / Humidity 5~95% |
-
