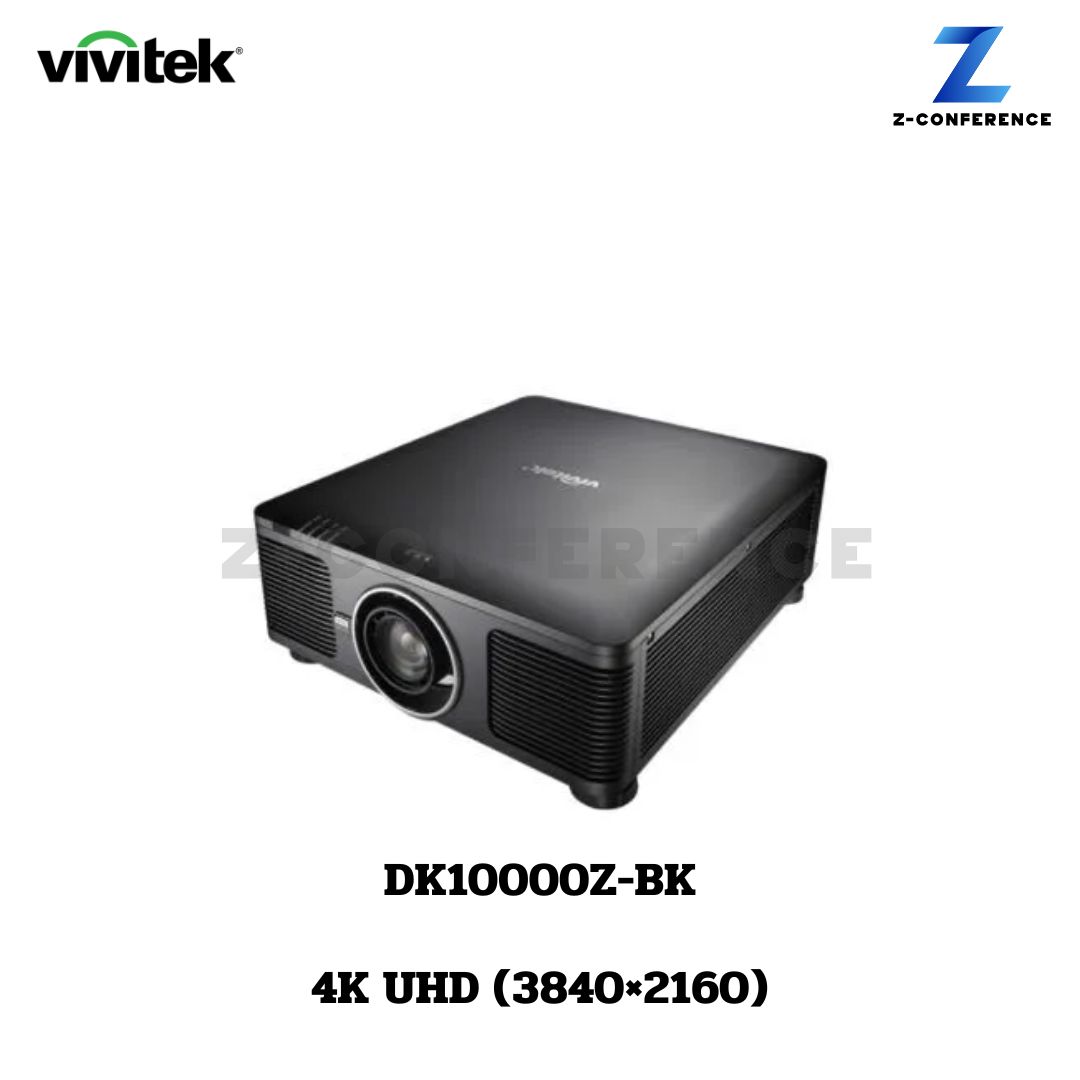

Projector Vivitek DK10000Z-BK Laser Projector (10,000 lumens)
Laser 4K DLP® technology พร้อม BrilliantColor™, DLP®Darkchip3™ ช่วยเติมเต็มสีสันและระดับสีดําเพื่อภาพที่ดียิ่งขึ้น 4 corner geometric adjustment รองรับ HDBaseT™,Edge blending โหมดภาพซ้อนภาพ(PiP: Picture in Picture), โหมดภาพเคียงภาพ(PbP: Picture by Picture) • ฟังก์ชันจดจําการตั้งค่าเลนส์เปลี่ยนเลนส์ได้ 8 ชนิด
-
Specifications
-
CATEGORY |
SPECIFICATION |
Projection System |
1-Chip DLP™ 0.66 inch |
Resolution |
4K-UHD (3840 x 2160) |
Light Source |
Laser |
OPTICS |
Brightness |
10,000 lm |
Brightness Uniformity |
90% |
Contrast Ratio |
1,000:1 (Native) / 6,000:1 (Dynamic) / 3,000,000:1 (Full On/Off) |
Light Source Life |
20,000 hrs (Normal) |
Lens Type |
Optional (D88/D86 Lenses) |
Zoom Ratio |
Base On Lens Spec |
Lens Throw Ratio |
D88 Lenses: 0.38:1 / 0.76:1 / 0.75~0.93:1 / 1.25~1.79:1 1.73~2.27:1 / 2.22~3.67:1 / 3.58~5.38:1 / 5.31~8.26:1 |
Lens Shift – Horizontal (Full Image Width) |
+10% ~ -10% |
Offset (Full Image Width) |
+50% ~ -0% |
GEOMETRY ADJUSTMENT |
Keystone Correction |
Yes (H/V) |
Four Corner Adjustment |
Yes |
I/O TERMINAL |
HDMI |
2.0 x2 |
DisplayPort |
N/A |
SDI |
In x1 / Out x1 |
DVI-D |
N/A |
YPbPr |
x1 |
D-Sub |
In x1 / Out x1 |
3D Sync |
In x1 / Out x1 |
RJ45 |
HDBaseT x1, LAN x1 |
RS-232 |
In x1 |
Wire Remote |
In x1 |
Speaker |
N/A |
USB |
N/A |
12V Trigger (mini Jack) |
x2 |
5 BNC |
N/A |
Audio |
N/A |
SYSTEM |
Power Supply |
AC 100-240V 50/60Hz |
Power Consumption ±5% |
1,350W |
Standby Power |
< 0.5W (Network Off)/< 3.0W( Network On) |
Acoustic Noise ±5% |
Normal: 43dB / Eco: 41dB |
Dimension ±2% |
580 x 500 x 205 mm |
Weight ±1kg |
30 kg |
3D Display |
Active / Passive |
24×7 Operation |
Yes |
Dust Proof*4 |
IP6X |
Operation Oreinetation |
360˚ free installation |
Operation Environment |
Temp. 5~40˚C / Humidity10~85% |
Storage Environment |
Temp. -10~60˚C / Humidity 5~95% |
-
