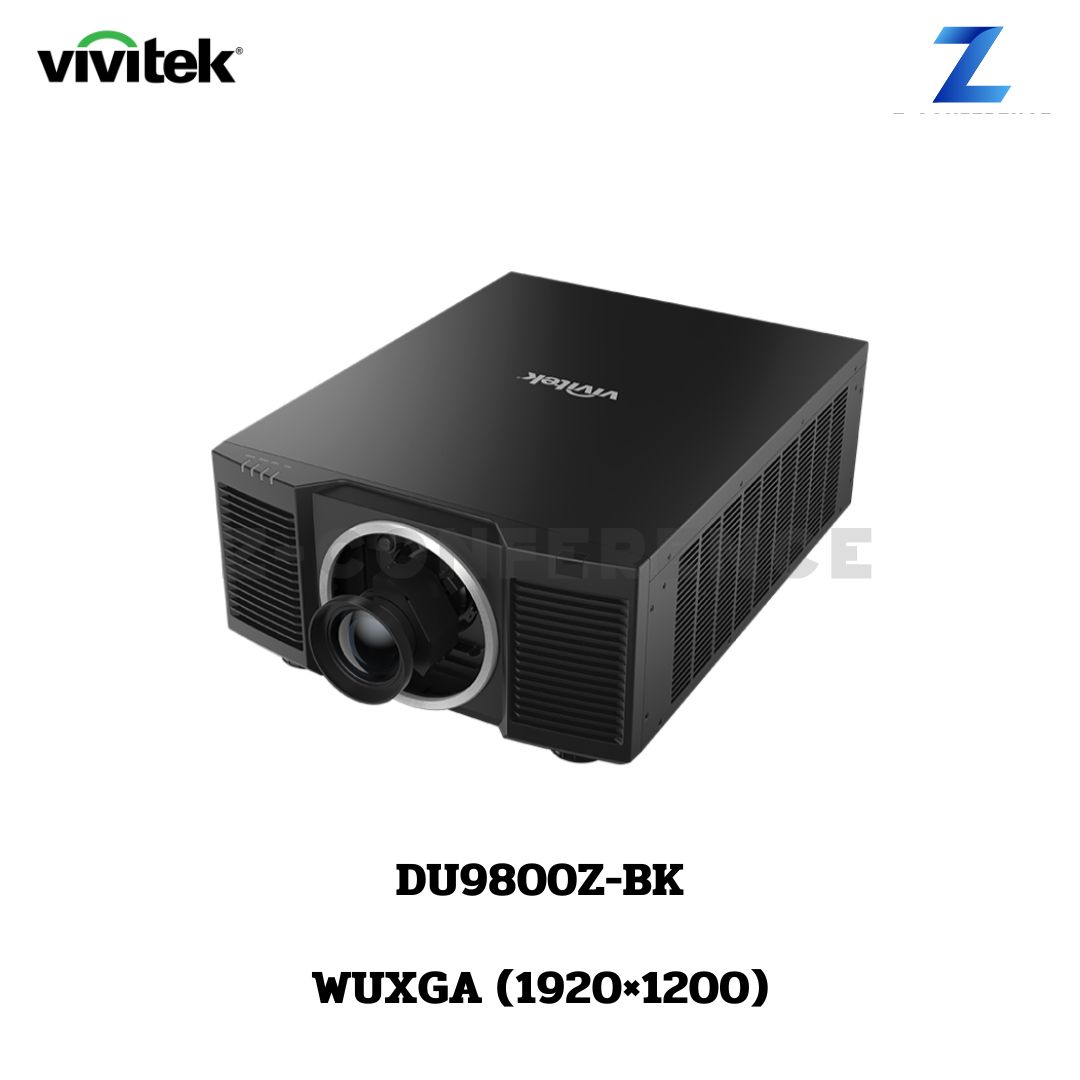

Projector Vivitek DU9800Z-BK Laser Projector (18,000 lumens)
Laser DLP® technology พร้อม BrilliantColor™ ช่วยเติมเต็มสีสันเพื่อภาพที่ดียิ่งขึ้น ,เซ็นเซอร์ปรับระดับแสงอัตโนมัติ (Automatically brightness level) , 4 corner geometric adjustment ,รองรับ HDBaseT™ โหมดภาพซ้อนภาพ(PiP: Picture in Picture) ฟังก์ชันจดจําการตั้งค่าเลนส์เปลี่ยนเลนส์ได้ 5 ชนิด
-
Specifications
-
-
CATEGORY |
SPECIFICATION |
Projection System |
DLP™ Single Chip 0.96 inch |
Resolution |
WUXGA (1920 x 1200) |
Light Source |
Laser |
OPTICS |
Brightness |
18,000 lm |
Brightness Uniformity |
90% |
Contrast Ratio |
1,250:1 (Native) / 10,000:1 (Dynamic) / 3,000,000:1 (Full On/Off) |
Light Source Life |
20,000 hrs (Normal) |
Lens Type |
Optional (D98 Lenses) |
Zoom Ratio |
Base On Lens Spec |
Lens Throw Ratio |
0.9~1.20:1 / 1.2~1.56:1 / 1.5~ 2:1 / 2~4:1 / 4~7:1 |
Lens Shift – Horizontal (Full Image Width) |
+50% ~ -50% |
Offset (Full Image Width) |
+15% ~ -15% |
GEOMETRY ADJUSTMENT |
Keystone Correction |
Yes (H/V) |
Four Corner Adjustment |
Yes |
I/O TERMINAL |
HDMI |
1.4a x2 |
DisplayPort |
x1 |
SDI |
In x1 / Out x1 |
DVI-D |
x1 |
D-Sub |
In x1 / Out x1 |
3D Sync |
In x1 / Out x1 |
RJ45 |
HDBaseT x1, LAN x1 |
RS-232 |
In x1 |
Wire Remote |
In x1 |
12V Trigger (mini Jack) |
x2 |
5 BNC |
x1 |
SYSTEM |
Power Supply |
AC 110-240V 50/60Hz |
Power Consumption ±5% |
1,950W |
Standby Power |
< 0.5W (Network Off) / < 6.0W( Network On) |
Acoustic Noise ±5% |
Normal 43dB / Eco 41dB |
Dimension ±2% |
684 x 530 x 248 mm |
Weight ±1kg |
48 kg |
3D Display |
Active / Passive |
24×7 Operation |
Yes |
Dust Proof*4 |
IP6X |
Operation Oreinetation |
360˚ free installation |
Operation Environment |
Temp. 5~40˚C / Humidity10~85% |
Storage Environment |
Temp. -10~60˚C / Humidity 5~95% |
