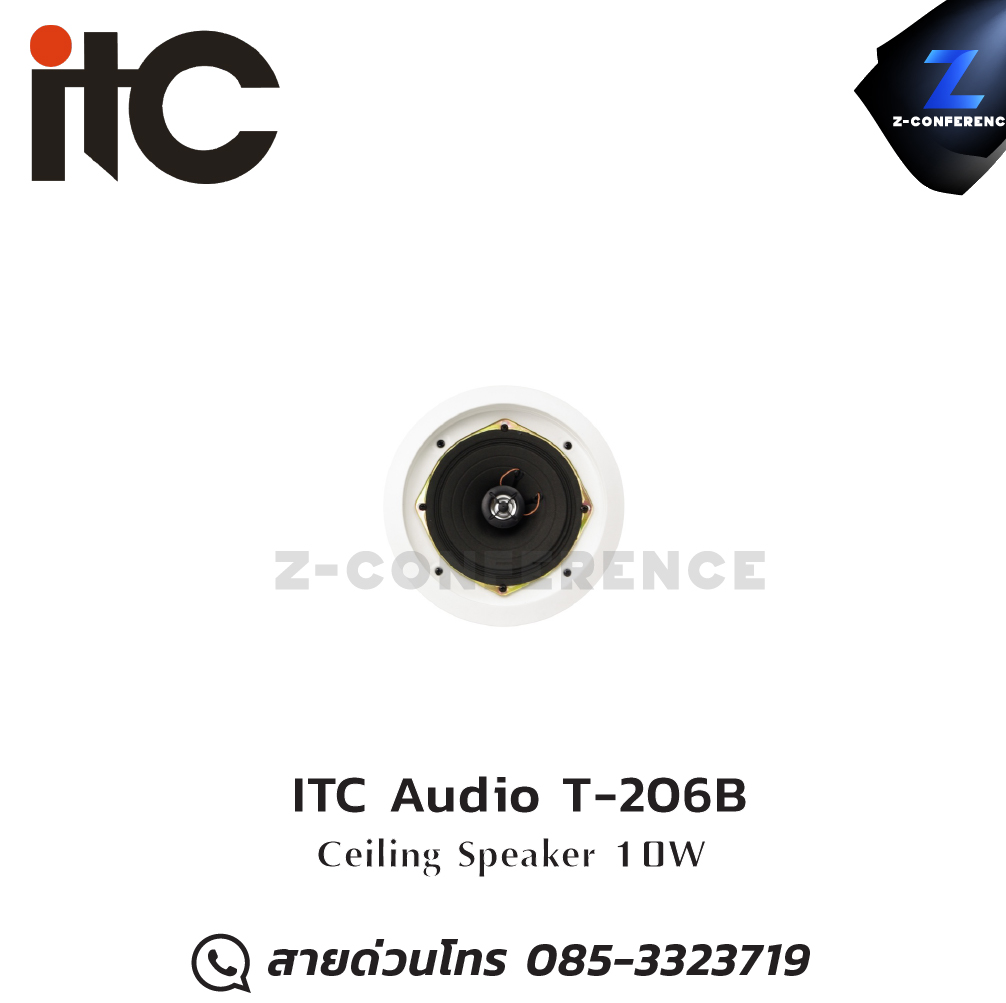

ITC Audio T-206B 10W ceiling speaker , ลำโพงเพดาน , ลำโพงฝังฝ้า , ลำโพงติดเพดาน

Model

T-205B

T-206B

Power Taps @100V

6W, 3W, 1.5W, 0.75W

10W, 5W, 2.5W, 1.25W

Power Taps @70V

3W, 1.5W, 0.75W, 0.38W

5W, 2.5W, 1.25W, 0.62W

Impedance

Black: Com  Blue: 1.7KΩ Brown: 3.3KΩ

Yellow: 6.6KΩ Green: 13.3KΩ

Black: Com  Blue: 1KΩ Brown: 2KΩ Yellow: 4KΩ Green: 8KΩ

SPL(1W/1M)

88dB

89dB

Max. SPL (Rated W/1M)

96dB

99dB

Frequency Response (-10dB)

80-20KHz

80-20KHz

Finish

Baffle: ABS, White

Grille: Steel, White

Baffle: ABS, White

Grille: Steel, White

Speaker Driver

5" ×1   1.5" ×1

6" ×1   1.5" ×1

Cutout Size

171mm

202mm

Dimensions

202 ×98mm

232 ×107mm

Weight

0.6Kg

1Kg

Mounting

Flush-mount dog ears

Flush-mount dog ears

Product

 LBC 3437/00

 LBC 3438/00

Maximum power

22.5W

37.5W

Rated power

15/75/5/4/2/0.8 W

25/12.5/6/4/2/1 W

SPL at RP / 1 W
(1 kHz, 1 m)

112 / 100 dB (SPL)

114 / 100 dB (SPL)

Effective frequency range (-10 dB)

420 Hz to 3.5 kHz

 420 Hz to 3.5 kHz

Opening angle at 1 kHz
/ 4 kHz (-6 dB)

160° / 60°

160° / 60°

Rated voltage

100 V

100 V

Rated impedance

667 ohm

400 ohm

Dimensions (L x D max)

271 x 170 mm / (10.7 x 6.7 in)

271 x 170 mm  / (10.7 x 6.7 in)

Weight

5 kg (11 lbs)

5 kg (11 lbs)
