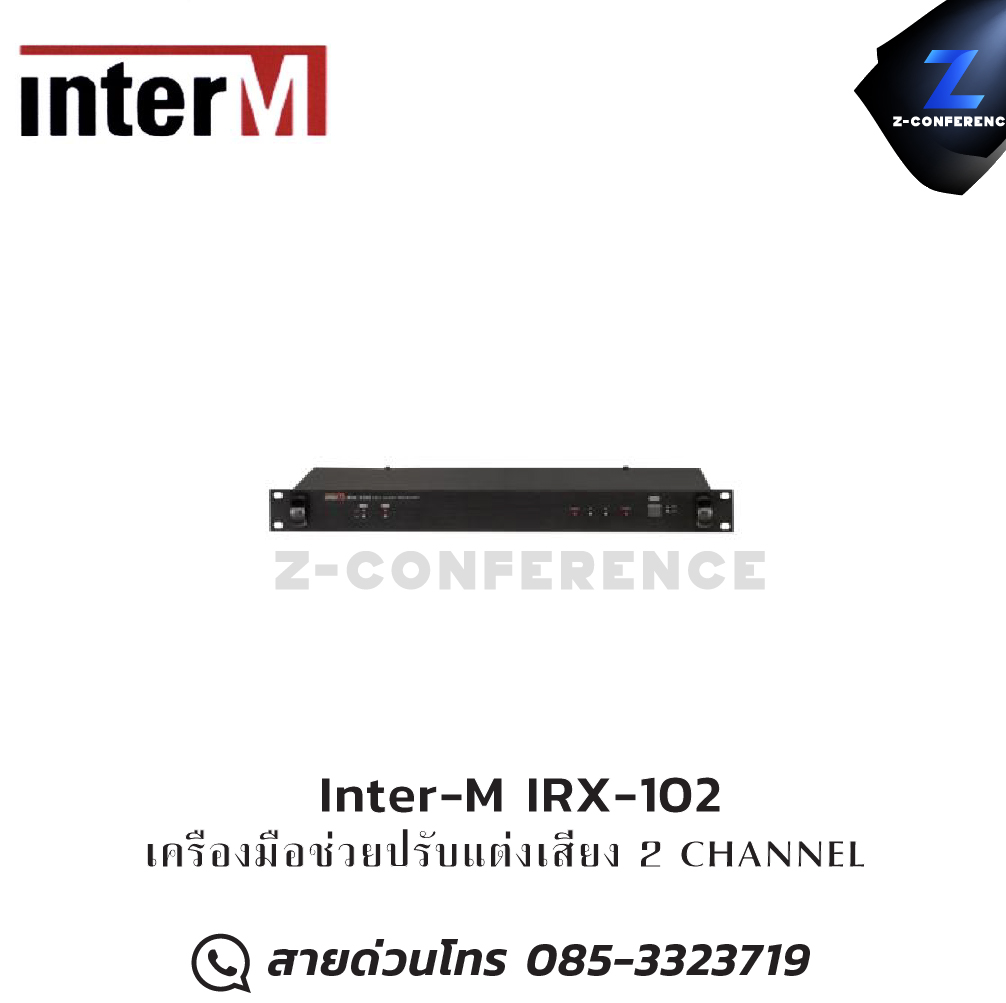

Inter-M IRX-102 2 CHANNEL AUDIO/DATA RECIEVER digital signal processor , เครื่องปรับแต่งสัญญาณเสียง , อุปกรณ์ปรับแต่งสัญญานเสียง

- TRANSMIT THE 2 CHANNEL AND 8 CHANNEL BALANCED AUDIO SIGNAL

2 Channel Model: ITX/IRX-102, 2 channel balanced audio signal transmission

8 Channel Model: FTA/FRA/ITX/IRX-108, 8 channel balanced audio signal transmission

- THE SOLUTION OF SENDING A SOUND SOURCE IN LONG DISTANCE

Optical Cable Communication [FTA/FRA-108S] : Sending a signal in long distance (maximum 15km)

UTP Cable Communication [ITX/IRX-108(102)] : Sending a signal in long distance (maximum 150m)

- HIGH QUALITY AUDIO SIGNAL

It sends the digital signal converted to 24Bit, 48kHz to provide the high quality audio signal

(higher than S/N 90dB, less than THD 0.01%)

- AC/DC SUPPORTS

It responses to the field conditions with supporting AC and DC power input terminals

- INPUT SENSITIVITY CONTROL FUNCTION THROUGH PAD SWITCHES

If it is clipped due to high input audio signal level, push the PAD switch to decrease the input signal in 10dB

- INPUT SIGNAL DISPLAY

Detects the audio signal and clip approved to each channel and display on the front panel.

- RS-232/RS-422/CONTACT POINT DATA RECEIVING/SENDING (OPTION MODULE)

The optional module (CT-100M/CR-100M) can be installed to make a possible to receive and send a RS-232,

RS-422 and 8 channel contact point data.
