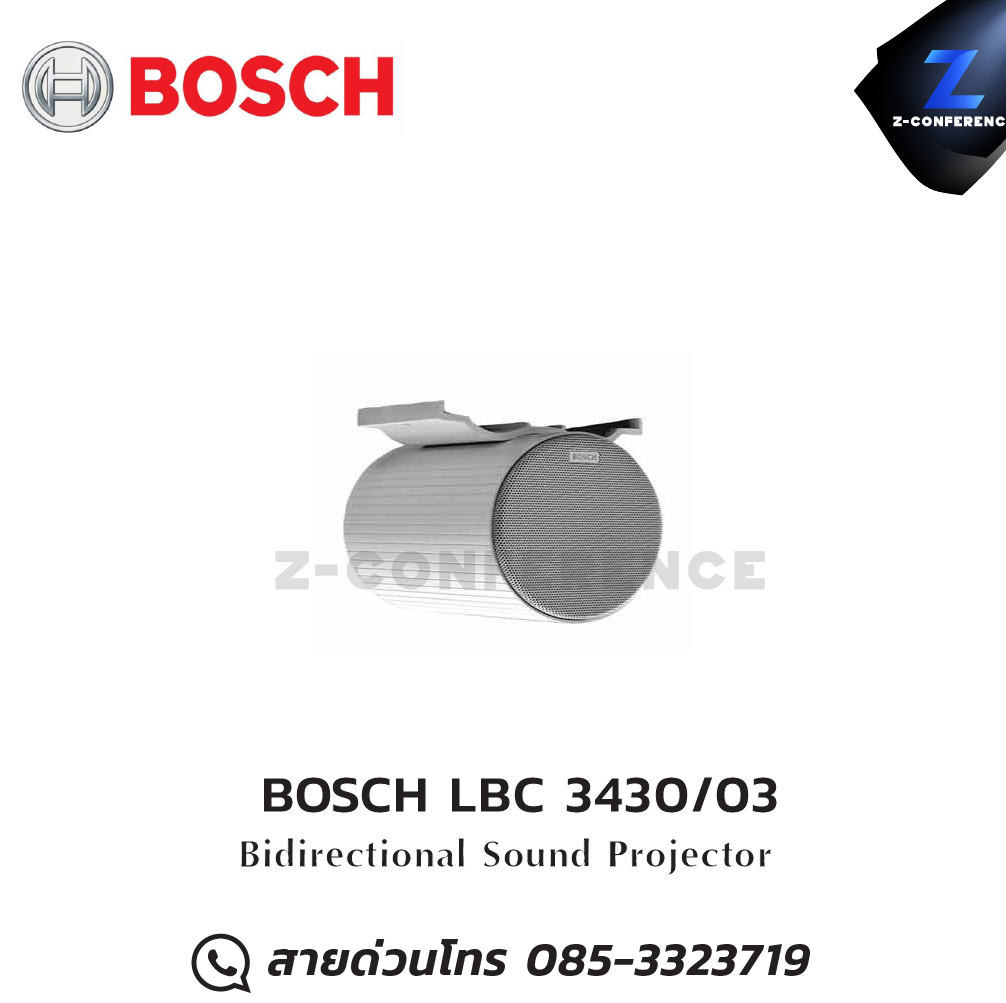

BOSCH LBC 3430/03 Bidirectional Sound Projector horn speaker , ลำโพงฮอร์น , ลำโพงฮอร์นเสียงดี , ลำโพงฮอน , ลำโพงฮอร์นกลางแจ้ง

• The Bosch LBC 3430/03 Bidirectional Sound White Projector is a 12 W bidirectional sound projector intended for speech and music reproduction in indoor and outdoor applications. The two loudspeakers facing in opposite directions are ideally suited to applications such as subway tunnels, long corridors and shopping arcades. The sturdy, aluminum enclosure is finished in the color white. It has provisions for cable loop-through connection and inside mounting of a line- or loudspeaker- supervision board. The sound projector is suitable for use in voice alarm systems.

  Functions
  Voice alarm loudspeakers are specifically designed for use in buildings where performance of systems for verbal communication announcements is governed by regulations. The LBC 3430/03 is designed for use in voice alarm systems and is compliant with British Standard BS 5839-8 and EN 60849.

  The loudspeaker has built-in protection to secure that, in the event of a fire; damage to the loudspeaker does not result in failure of the circuit to which it is connected. In this way, system integrity is maintained; ensuring loudspeakers in other areas can still be used to inform people of the situation. The loudspeaker has a ceramic terminal block, thermal fuse and heat resistant, high-temperature wiring. The sound projector is constructed from extruded aluminum and finished in white. The front-grills and bracket are made from aluminum to increase corrosion resistance.

Specs.

Maximum Power18 WRated power (PHC)12 WPower tapping12/6/3/1.5 W (0.75 W, 70 V only)Sound pressure level104/93dB SPL at 12 W / 1 W (1kHz, 1 m)Opening angle158 deg. / 58 deg. at 1 kHz / 4 kHz (-6 dB)Effective frequency range (-10 dB)190Hz-20kHzRated Voltage70/100 VRated Impedance416/833OhmMaterialAluminumConnectionScrew terminal blockOperating temperature-25 deg.C to +55 deg.C (-13 deg.F to +131 deg.F)Storage temperature-40 deg.C to +70 deg.C (-40 deg.F to +158 deg.F)Relative humidity<95%Water/dust protectedAccording to EN 60529 IP55Dimensions (D x L)146 x 186mm (5.74 x 7.32")Weight



3.5kg (7.71lbs)
