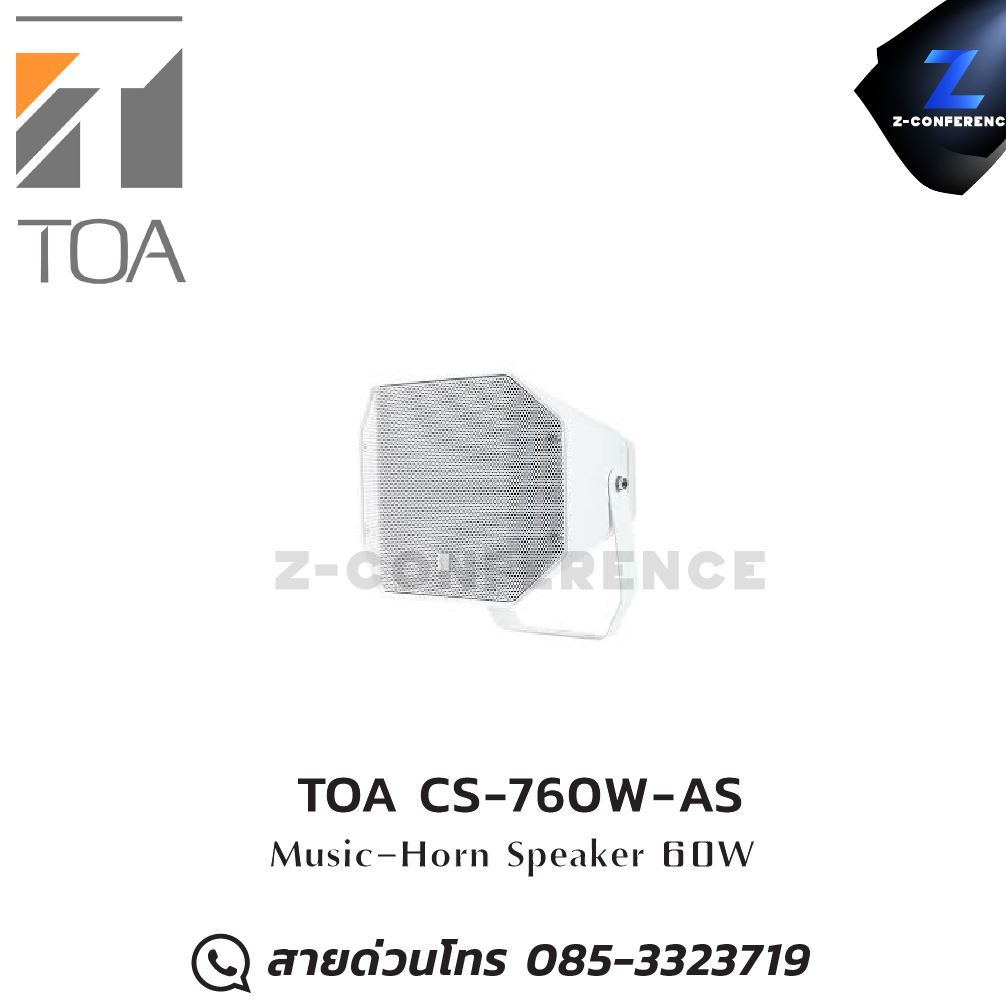

TOA CS-760W-AS 60W Music-horn speaker , ลำโพงฮอร์น , ลำโพงฮอร์นเสียงดี , ลำโพงฮอน , ลำโพงฮอร์นกลางแจ้ง

Rated Input        60 W (high impedance)

Rated Impedance            100 V line: 170 Ω (60 W), 330 Ω (30 W), 670 Ω (15 W), 1.3 kΩ (7.5 W)

70 V line: 83 Ω (60 W), 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W)

Sensitivity           100 dB (1 W, 1 m)

Maximum Sound Pressure Level               117 dB (60W, 1 m)

Frequency Response     100 - 20 kHz

Crossover Frequency     2.5 kHz

Directivity Angle               Horizontal: 90° ; Vertical: 80°

Speaker Component      Low Frequency: 16 cm cone-type

High Frequency: 2.5 cm dome tweeter

Dust/Water Protection  IP 66

Connection         Speaker Cord (Hot: Black ; Com: White)

Finish    Enclosure: ABS, Black, paint coating

Punched net: Surface treated steel plate, Black, paint coating

Bracket: Stainless steel, Black, powder coating

Dimensions        388 (W) × 310 (H) × 367 (D) mm

Weight 7.4 kg

Option  Pole Mounting Bracket: SP-131

Speaker Mounting Bracket: SP-201

Pole Band: YS-60B

Speaker Stand: ST-34B
