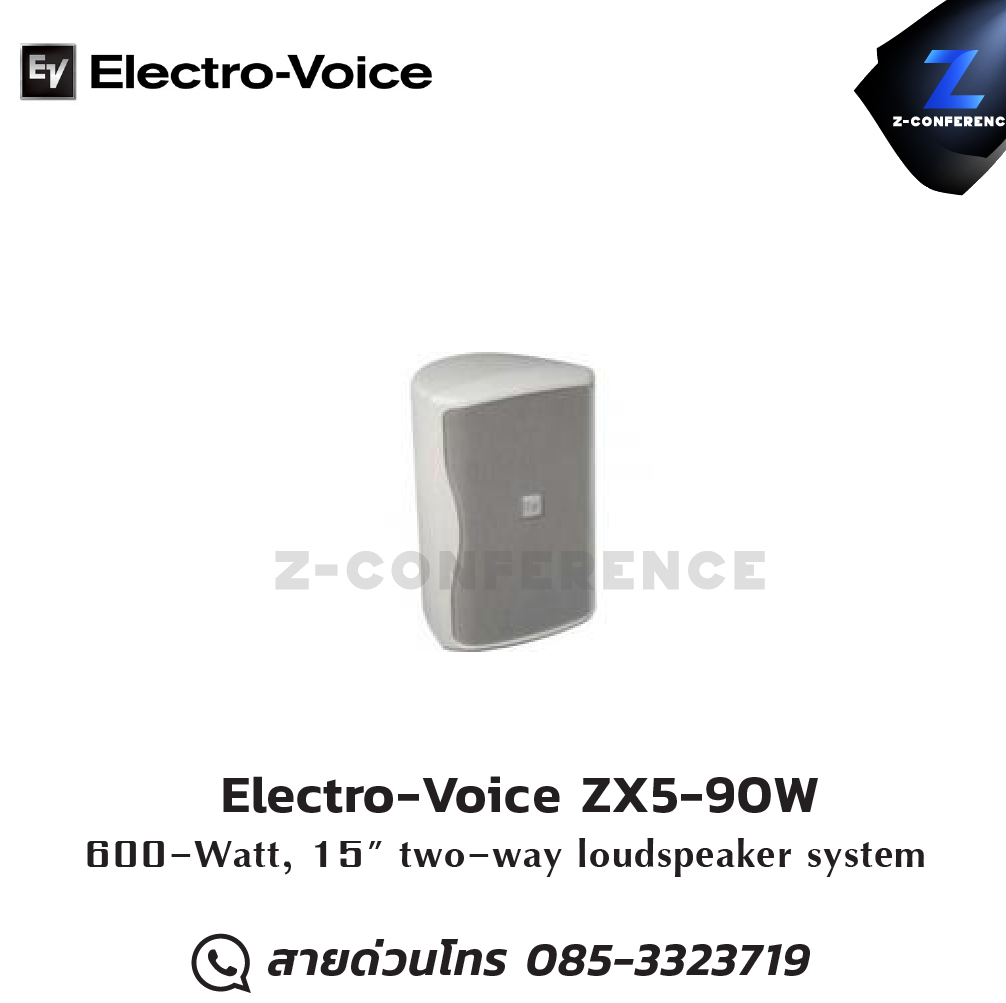

Electro-Voice ZX5-90W 600W 15-inch two-way cabinet with a high-impact ลำโพง , ตู้ลำโพง , speaker

Features

• Versatile performance for mains, fills, or monitors
• DVX3151 500 W woofer with forced-air cooling
• 2-inch ND2 titanium/neodymium HF driver
• Switchable biamp or passive crossover operation
• 90º x 50º coverage horn
• High sensitivity, 132 dB maximum SPL
• Power handling: 600 W continuous, 2400 W peak
• Compact highly weather-resistant enclosure of high-impact polypropylene
• Wedge shape for monitors at 45° or 55°
• Up to five anchor-plate attachments
• M8 mounting inserts (10)

Specifications

• Chassis Size 381 mm (15")
• Color White
• Input Connections Parallel Neutrik® NL4
• Speaker Type Fullrange, Mid-High, Two-Way, Wedges
• Frequency Response (-3 dB) 58 - 18000 Hz
• Frequency Response (-10 dB) 39 - 20000 Hz
• Internal Crossover Switchable biamp or passive crossover
• Recommended High-Pass Frequency 36 Hz
• Sensitivity 1 W/1 m 98 dB
• Max. SPL/1m (calc) 132 dB
• Coverage (Nominal -6 dB) H 90°
• Coverage (Nominal -6 dB) V 50°
• System Power Handling (Continuous/Program/Peak) 600//2400 Watts
• LF Transducer 15-inch DVX3150
• LF Power Handling 500 Watts
• HF Power Handling 40 Watts
• LF Nominal Impedance 8 Ω
• HF Transducer 2-inch ND2
• HF Nominal Impedance 8 Ω
• Crossover Frequency 1500 Hz
• Nominal Impedance (Passive) 8 Ω
• Minimum Impedance 6.5 Ω
• Flying Yes
• Outdoor Yes
• Height 692 mm (27.24")
• Width 446 mm (17.56")
• Depth 411 mm (16.18")
• Weight Net 5 kg (11.02 lbs)
