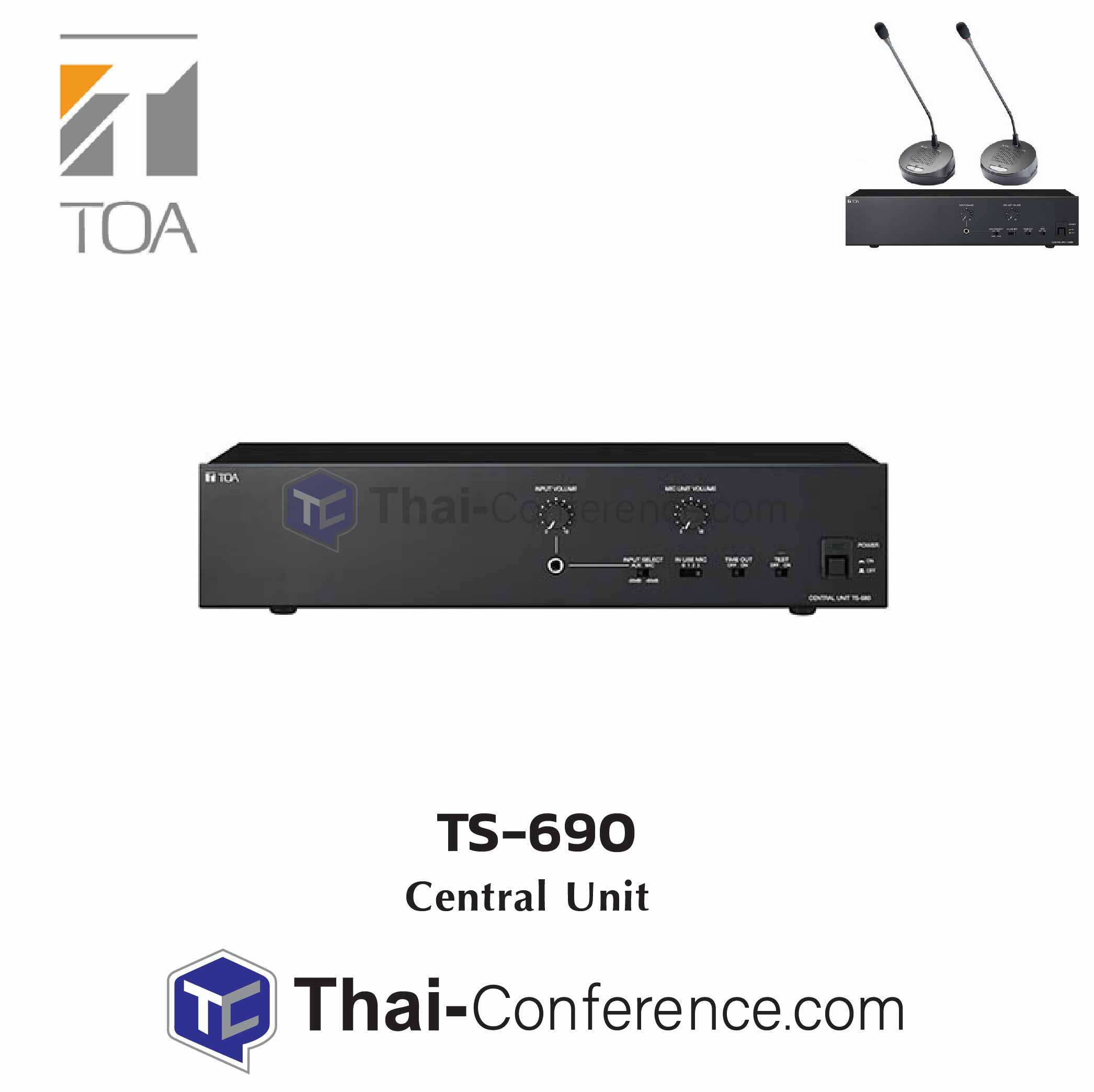

TOA TS-690-AS Central Unit

System Benefits

Plug-and-play system.

Up to 24 units can be connected per Central Unit.

Suitable for small-scale corporate boardrooms and

meeting rooms.

Test function allows connections to be accurately verified.

Connect a recording device for high-quality audio recording

of conferences.

Compact and stable hardware design.

Power Source 220 - 240 V AC, 50/60 Hz

Power Consumption 20 W

Rated Output 36 V DC, 480 mA

Input

Selectable MIC or AUX

Mic: -60dB*, 600 Ω, unbalanced, phone jack

AUX: -20 dB*, 10k Ω, unbalanced, phone jack

Output Recording: -20dB*, 10k Ω, unbalanced, RCA jack

No. of connectable

Chairman/Delegate Unit Max. 24 units

Control

Priority speech chime: Operation of TS-691L-AS prority button activates a single-tone chime

Speaker restriction: No. of simultaneous-usable TS-692L-AS can be set to 0 - 3

Automatic Mic-off function: Off, 30 sec. (selectable)

Applicable Unit TS-691L-AS / TS-692L-AS

Finish Panel: Aluminum, black, 30% gloss, paint

Case: Steel plate, black, 30% gloss, paint

Dimensions 420(W) x 96.1 (H) x 222.5(D) mm

Weight 2.7 kg

Accessory Power Cord (2m) x 1
