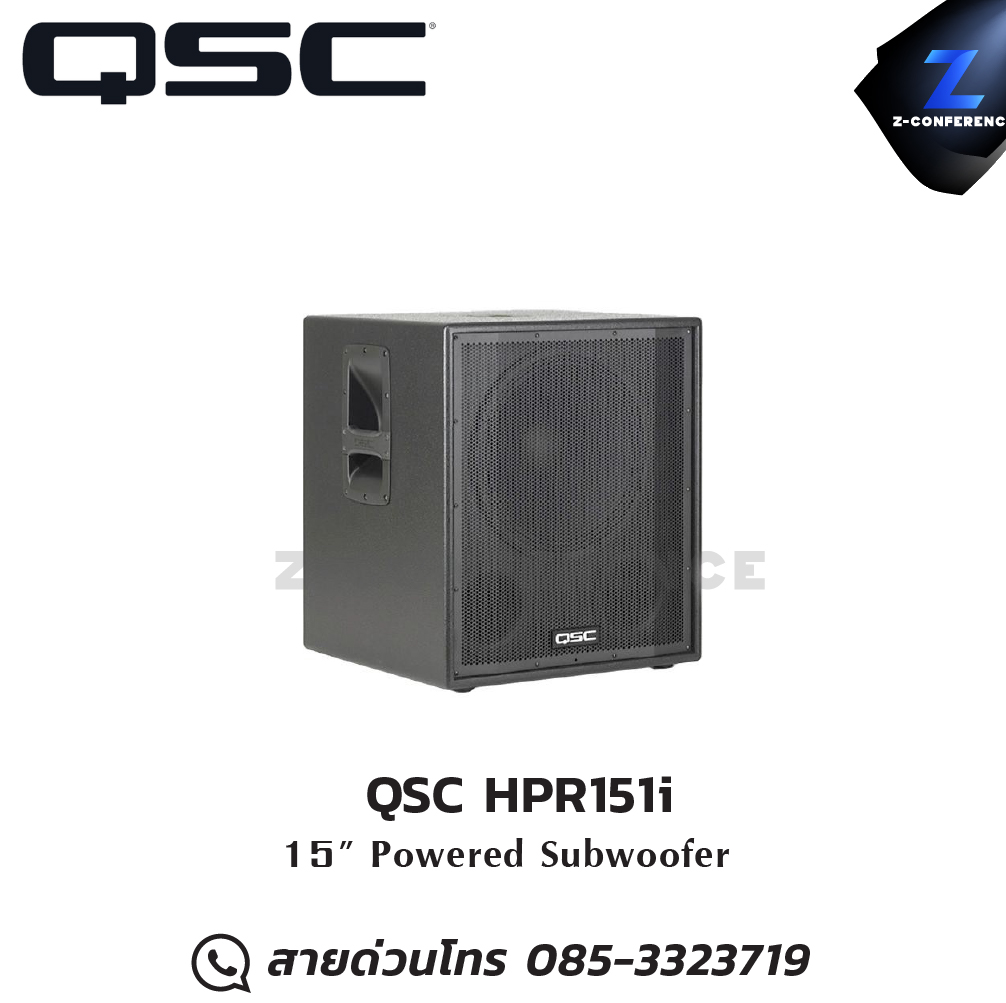

QSC HPR151i ลำโพง Powered Subwoofer ลำโพง , ตู้ลำโพง , speaker

SPECIFICATIONS

HPR151i

Configuration

15" powered subwoofer

Transducer

15" cone transducer with 3" voice coil

Frequency Response (-3 dB) ¹
Frequency Range (-10 dB) ¹

51 Hz - 105 Hz
43 Hz - 145 Hz

Maximum SPL (1 meter)

133 dB peak

Amplifier

Power output

700W Class H

Input impedance

22k balanced
11k unbalanced

Controls

Gain
Front LED On/Off
Power
Circuit breaker
Phase

Indicators

Power
Signal
Limit

Cooling

Convection

Amplifier protection

Thermal and Output Limiting
Output Short Circuit
Overtemperature Muting
Driver DC Protection

Current consumption at 120 VAC
(1/8 power EIA noise)

2.2A

Enclosure

Painted Birch plywood

Finish

Black textured paint

Grille

Powder coated 16 gauge steel

Connectors

Balanced female XLR line level inputs x 2 (L+R)
Balanced male XLR full range line level throughputs x 2 (L+R)
Male XLR low-cut line level outputs x 2 (L+R)

Dimensions

25.6" H x 22" W x 20.75" D
(651mm x 559mm x 525mm)

Net weight

98 lbs. / 44.5 kg

Available Accessories

HPR COVER 151
HPR POLE 26
HPR POLE 31

SPECIFICATIONS

HPR152i

Configuration

15" 2-way full-range powered loudspeaker

Transducers
  Low Frequency
  High Frequency

15" cone transducer with 3" voice coil
1.75" diaphragm compression driver

Frequency Response (-3 dB) ¹
Frequency Range (-10 dB) ¹

54 Hz - 17.5 kHz
47 Hz - 20 kHz

Nominal Coverage, -6 dB

90° x 60°

Maximum SPL (1 meter)

135 dB peak

Amplifier

Power output

400W LF Class H
100W HF Class AB+B

Input impedance

22k balanced
11k unbalanced

Controls

Gain
Low-cut filter
Front LED On/Off
Power
Circuit breaker

Indicators

Power
Signal
Limit

Cooling

Convection

Amplifier protection

Thermal and Output Limiting
Output Short Circuit
Overtemperature Muting
Driver DC Protection

Current consumption at 120 VAC
(1/8 power EIA noise)

1.5A

Enclosure

Painted Birch plywood

Finish

Black textured paint

Grille

Powder coated 16 gauge steel

Connectors

Balanced female XLR line level input
Balanced male XLR full range line level out

Suspension / Attachment Points

3 M10 rigging locations

Dimensions

33.6" H x 19.1" W x17.9" D
(853mm x 485mm x 455mm)

Net weight

100 lbs. / 45.5 kg

Available Accessories

HPR COVER 152
HPR POLE 26
HPR M10 KIT
