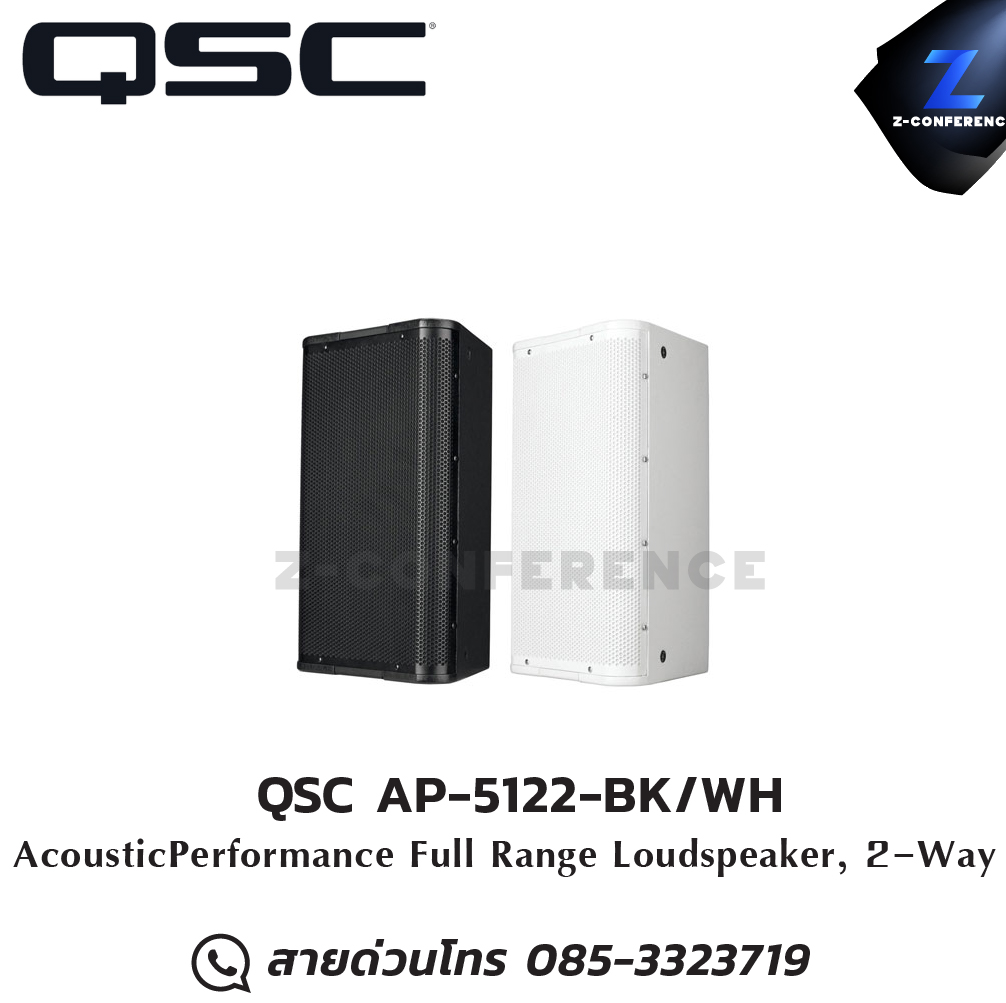

QSC AP-5122-BK/WH ตู้ลำโพง 2 ทาง 12 นิ้ว 550 วัตต์ ลำโพง , ตู้ลำโพง , speaker

AP-5102

AP-5122

Frequency Response (-10dB)

60Hz – 18kHz

48Hz – 18kHz

Power Capacity1

450W / 54V continuous

550W / 60V continuous

System Sensitivity2

94dB, 1W@1m

95dB, 1W@1m

Coverage Angle

105˚ Axisymmetric

90˚ Axisymmetric

Directivity Factor (Q)

4.6

6.0

Directivity Index (DI)

6.6

7.8

Recommended Crossover

950 Hz, 48dB/octave

950 Hz, 48dB/octave

Maximum Rated SPL

Passive: 121dB @1m, continuous3127dB @1m, peak4

Passive: 122dB @1m, continuous3128dB @1m, peak4

Rated Impedance

8Ω

8Ω

HF Transducer

76 mm (3-inch) voice coil, compression
driver; 72W / 24V (2 Hrs)

76 mm (3-inch) voice coil, compression
driver; 72W / 24V (2 Hrs)

LF Transducer

254 mm (10-inch) driver with 76 mm (3-inch) VC; 450W / 54V (2 Hrs)

305 mm (12in) driver with 102 mm (4in) VC; 450W / 60V (2 Hrs)

Optional Accessories

AP-YM10 Yoke mount
M10 Kit-W

AP-YM12 Yoke mount
M10 Kit-W

Enclosure Details

Input Connector

Barrier Strip, NL4 connector

Barrier Strip, NL4 connector

Enclosure Material

15-ply Baltic birch plywood

15-ply Baltic birch plywood

Attachment Points

15x M10 threaded inserts

15x M10 threaded inserts

Color

Black (RAL 9011), White (RAL 9010)

Black (RAL 9011), White (RAL 9010)

Grille

16 Gauge powder coated steel

16 Gauge powder coated steel

Dimensions (HxWxD)

559 mm x 305 mm x 267 mm (22" x 12" x 10.5")

660 mm x 381 mm x 330 mm (26" x 15" x 13")

Net Weight

21.7 kg (48 lb)

29.5 kg (65 lb)
