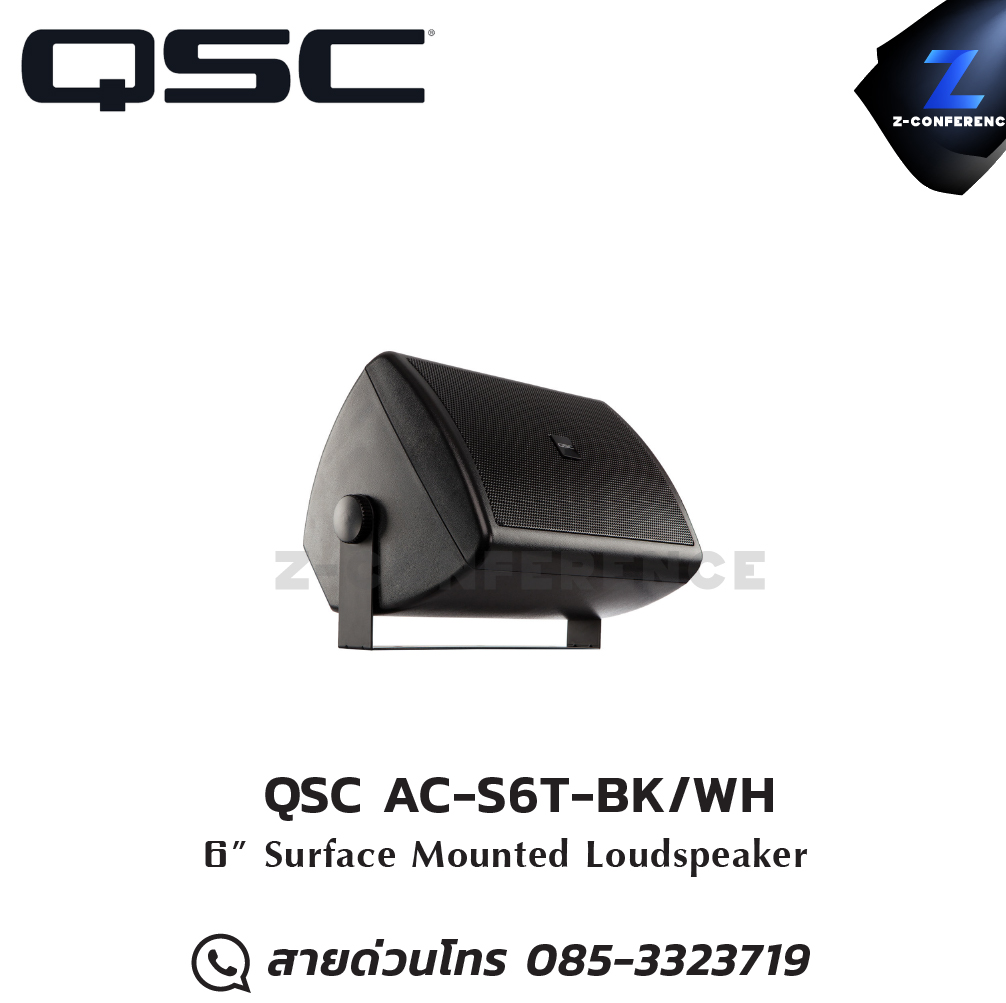

QSC AC-S6T-BK/WH surface mounted 6.5” two-way loudspeaker with 70/100V transformer ลำโพง , ตู้ลำโพง , speaker

Features:

• High quality transducers provide exceptional clarity through the critical voice range.
• Improved musicality often not seen in typical BGM class products.
• Ported baffle for increased low frequency extension down to 70 Hz.
• Low saturation 70/100V transformers with 8 ohm bypass.
• 4-pole Euroblock connector eases system wiring.
• Advanced voicing via QSC Intrinsic Correction™, applied using Q-Sys processing or CXD amplifier platforms.
• Available in black (RAL 9011) or white (RAL 9010).
• Complete EASE, CAD & BIM information available online.

Specifications:
• Effective Frequency Range: 60 Hz – 20 kHz
• Rated Noise Power / Voltage: 150 Watts / 35Volts (RMS)
• Broadband Sensitivity: 89 dB SPL
• Coverage Angle (-6 dB): 105°
• Directivity Factor (Q): 5
• Directivity Index: 7 dB
• Maximum continuous SPL: 110 dB
• Maximum Peak SPL: 116 dB
• Rated Impedance: 8 Ohms
• Recommended Amplifier: 300 watts
• Transformer Taps:
70V: 60, 30, 15, 7.5 watts and 8 ohm bypass
100V: 60, 30, 15 watts and 8 ohm bypass
• HF transducer: 1” silk dome tweeter / 1”voice-coil horn loaded
• LF Transducer: 6.5” weather resistant paper cone woofer, 1.5” / 38mm voice-coil
• Input Connector Type: Euroblock connector with parallel output
• Enclosure Material: Painted ABS polymer
• Grille Material: Powder coated aluminum
• X-Mount Material: Powder coated aluminum
• Enclosure Details:
Ingress Protection: IP-54
Operating Environment: Designed for indoor and outdoor use
Testing:
The AD Series loudspeakers qualified for outdoor use using the following tests:
Salt Fog: MIL-STD-810G Method 509.5 for100 hrs.
Humidity: MIL-STD-810G Method 507.5,Natural cycle B2, cyclic high RH for 7 days
High and Low Temperature: Tested to QSC internal standards between -20° and 50° C
• Operating Temperature Range: -4°F to 122°F(-20°C to 50°C)
• Net Weight: 13.6 lb (6.2 kg)
• Product Dimensions: 14.4” x 8.5” x 8.5” (365mm x 215mm x 215mm)
• Shipping Weight: 33.4 lb (15.2 kg) (pair packed)
• Shipping Dimensions: 20″ x 12” x 23” (510mm x 305mm x 585mm) (pair packed)
• Included Accessories:
X-Mount mounting system
Euroblock connector
Input panel cover
