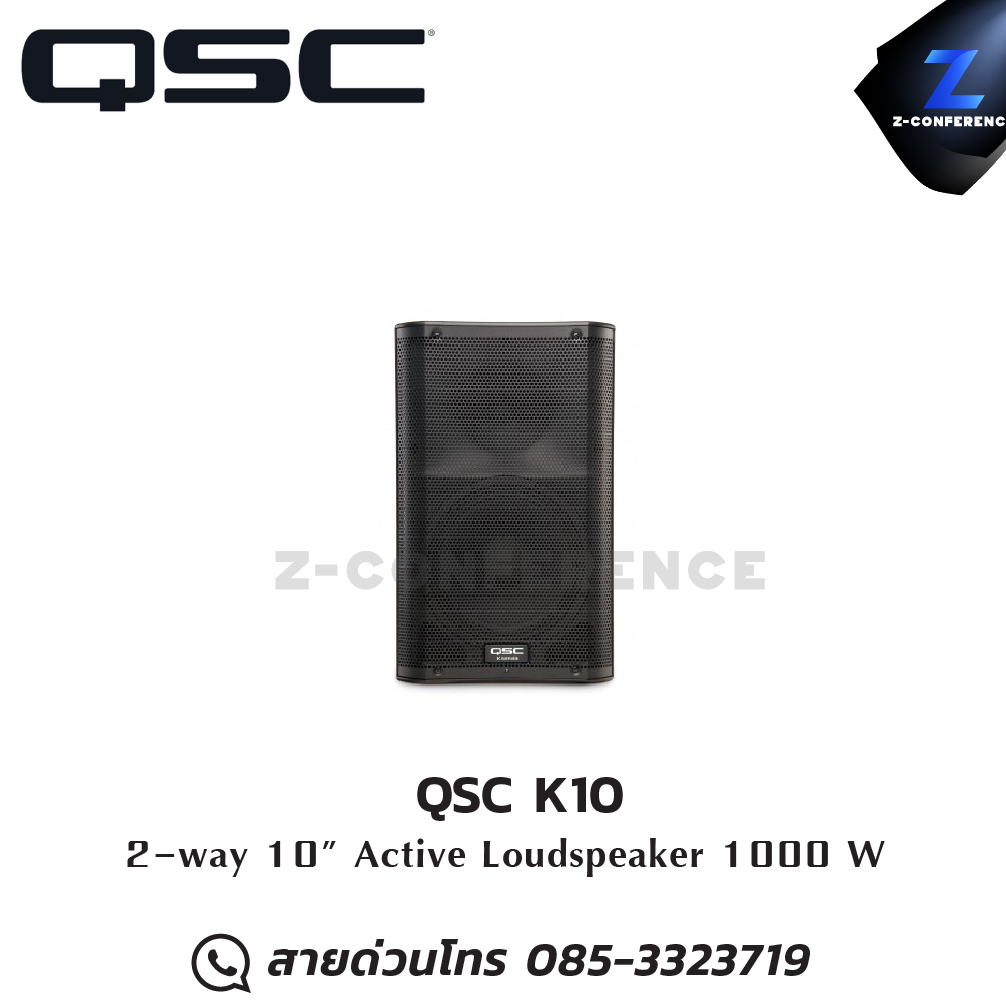

QSC K10 2-way 10" Active Loudspeaker 1000 watt ลำโพง , ตู้ลำโพง , speaker

Configuration    Multipurpose 2-way

Transducers

  Low-frequency                               10" cone transducer

  High-frequency              1.75" diaphragm compression driver

Frequency Response (-6 dB)       60 Hz - 18 kHz

Frequency Range (-10 dB)            56 Hz - 20 kHz

Nominal Coverage (-6 dB)           90° conical

Maximum SPL1                 129 dB peak

Amplifiers

Power Output2                 1000 W continuous Class D

(500 W LF, 500 W HF)

2000 W peak

Input Impedance (ohms)             XLR / ¼": 40k balanced / 20k unbalanced

XLR / ¼" MIC mode: 2260 balanced

RCA: 10k

Controls               Power, Gain A, Gain B, Mic/Line, LF Mode (Ext Sub/Norm/DEEP™), HF Mode (Flat/Vocal Boost), Front LED (On/Off/Limit)

Indicators            Power, Signal A, Signal B, Standby, Limit, Mic

Connectors         Balanced female XLR/¼" line/mic level input, Balanced female XLR/¼" line level input, Dual Balanced male XLR full range line level out , Balanced male XLR "mix" out, Stereo RCA line level input, Remote gain control, Locking IEC power connector

Cooling                 On demand, 50 mm variable speed fan

Amplifier Protection      Thermal limiting, output overcurrent, overtemperature muting, GuardRail™

Transducer Protection   Thermal limiting, excursion limiting

AC Power Input                                Universal power supply 100 - 240 VAC, 50 - 60 Hz

AC Power Consumption (1/8 Power)      100 VAC, 2.3 A

120 VAC, 2.01 A

230 VAC, 1.13 A

Enclosure

Material              Impact resistant ABS

Finish    Black paint

Grille    Black powder coated 18 gauge steel

Dimensions (HWD)        20.4" x 12.6" x 11.8"

519 mm x 320 mm x 300 mm

Weight (Net)     32 lb / 14.5 kg

Available Accessories    K10 TOTE, K10 YOKE, K SERIES M10 KIT
