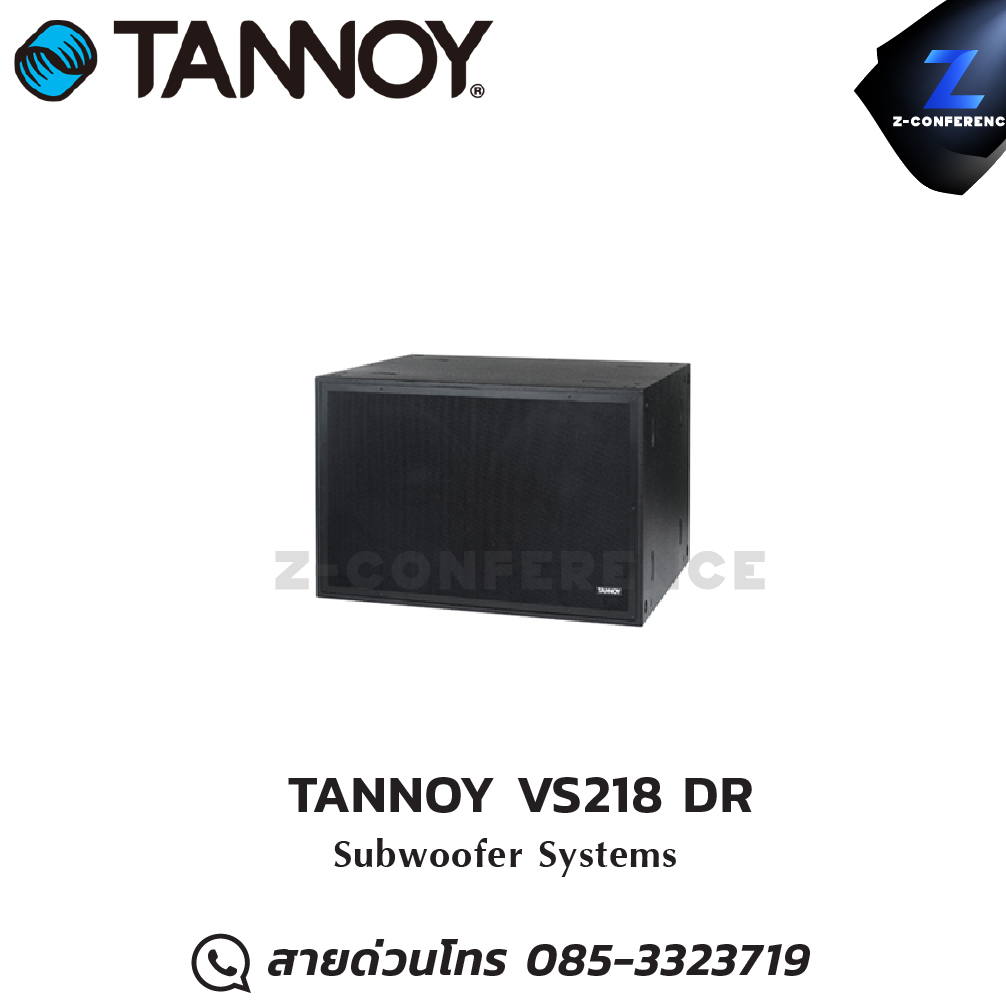

TANNOY VS218 DR Twin 18" Direct Radiating Passive Subwoofer ลำโพง , ตู้ลำโพง , speaker

Specifications :

VS 218DR

System

System Type    Subwoofer - Direct Radiating

Frequency Response (-3dB) 1    31Hz - 600Hz

Frequency Response (-10dB) 1    24Hz - 1.5kHz

System Sensitivity (1W @1m) 2    106dB (1W = 2V for 4Ohms)

Power Handling

Average          Program          Peak (10ms)

2000 Watts     4000 Watts      8000 Watts

Recommended Amplifier Power    2 x 1200 - 2000 Watts / 8Ohms, or 2400 - 4000 Watts / 4Ohms

Rated Maximum SPL 2

139dB (average)

145dB (peak)

Nominal Impedance    2 x 8 Ohms

Driver Complement    2 x 458mm (18”) Bass drivers

Recommended Crossover

70Hz - 300Hz, 24dB/octave

Recommended High-pass filter 25Hz, 24dB/octave

Distortion

10% Full Power (28.3V)    2nd Harmonic    3rd Harmonic

40Hz    1.22%              1.34%

100Hz    3.48%              1.98%

Distortion

1% Full Power (8.94V)    2nd Harmonic    3rd Harmonic

40Hz    0.41%              0.41%

100Hz    0.88%              1.03%

Construction

Enclosure    500 litres, 18mm (5/8”) birch plywood internally braced.

Finish    Black or white textured paint (custom colours on request).

Connectors    2 x Speakon NL4MPR IN/OUT and Barrier strip terminals

Fittings

16 x Recessed carrying handles

16 x M10 flying inserts.

4 x Pullback points

4 x Rubber feet

Dimensions

700mm(H) x 1050mm(W) x 850mm(D)

27.56“(H) x 41.34 ”(W) x 33.46”(D)

Weight

105kg (231.3lbs) net

120kg (264.3lbs) shipping
