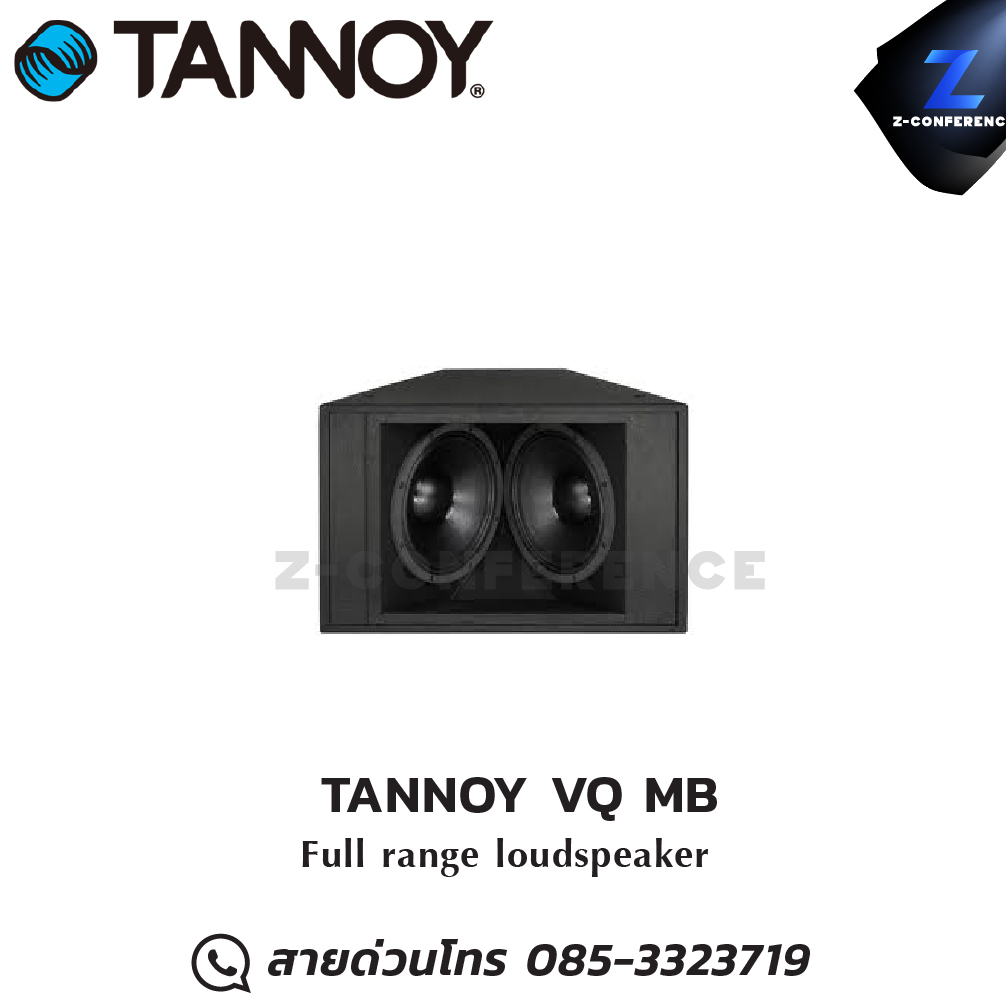

TANNOY VQ MB ลำโพง Full range loudspeaker ลำโพง , ตู้ลำโพง , speaker

Feature.

Designed to extend the pattern control of VQ full range systems

Identical performance to low/mid section of VQ full range systems

Compact Dimensions

Extremely high sensitivity, therefore high SPL’s can be achieved with a very modest amount of amplifier power

Applications:Large Houses of Worship, Large Corporate AV applications, Stadiums & other Sports facilities, Dance Clubs, Live sound – concert halls, theatres, open-air venues.

Specs.

Power Handling : 1000W Average

Maximum Frequency Response (Bandwidth) : 500 Hz

Maximum Frequency Response (Bandwidth) : 0.50 kHz

Minimum Frequency Response (Bandwidth) : 115 Hz

Minimum Frequency Response (Bandwidth) : 0.12 kHz

Construction : 18mm (0.71”) birch plywood.Internally braced/Powder coated perforated steel grille

Impedance : 4 ohm

Maximum SPL (Sound Pressure Level) : 141 dB

Power Handling : 1000 Watt

Sensitivity : 105 dB

Active Power : 1000 Watt

Peak Power : 2000 Watt

Depth : 515 mm

Depth : 20.28 in

Height : 433 mm

Height : 17.05 in

Width : 694 mm

Width : 27.32 in

Product Weight : 81.60 lbs

Product Weight : 37.01 kg

Color : Black/White

System Type : Mid Bass - Vented

Frequency Response : 115Hz - 500Hz

System Sensitivity & Operating Freq. (1W @1m)2 : 105dB (2.0V @ 4ohms)

Driver complement : 2 x 300mm (12.00”) Low Frequency Transducers, Semi Horn Loaded
