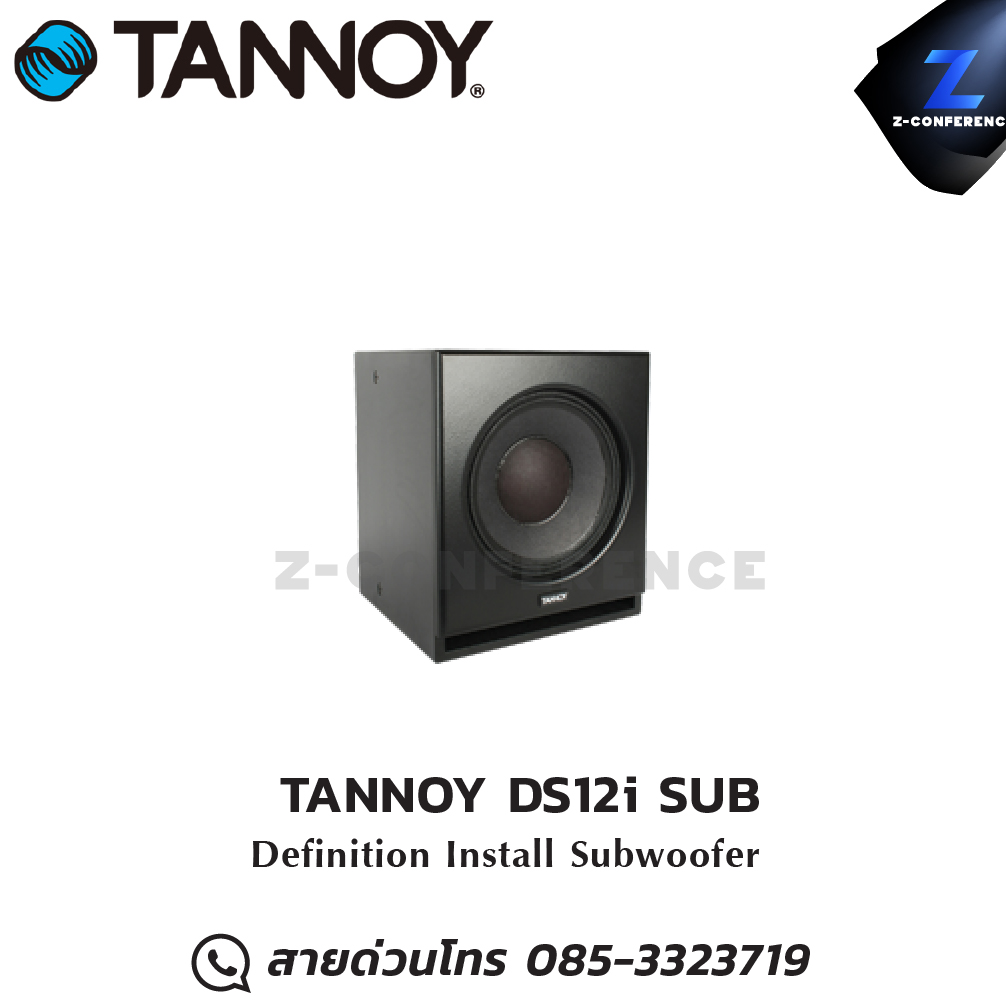

TANNOY DS12i SUB Definition Install Subwoofer ลำโพง , ตู้ลำโพง , speaker

Model

DS12i SUB

Part Number

8000 5200

Product Type

Definition Install Subwoofer

Frequency Range 1

38 Hz

System Sensitivity (1W @1m) 2

94dB (1W = 2.83V for 8 Ohms)

Dispersion (-6dB)

90 degrees conical

Driver Complement

1 x 300mm (12.00”) bass driver

Rated Maximum SPL

Average: 120dB, Peak: 126dB

Power Handling

Specifications

Average

400W

Programme

800W

Peak

1600W

Recommended Amplifier Power

400W - 800W @ 8 Ohms

Recommended Crossover

80Hz - 300Hz, 24dB/octave Recommended High-pass filter 40Hz, 24dB/octave

Nominal Impedance

8 Ohms

Distortion

Specifications

10% Full Power (17.9V)

2nd Harmonic, 3rd Harmonic

2nd Harmonic

40Hz: 0.28%, 100Hz: 0.29%

3rd Harmonic

40Hz: 2.26%, 100Hz: 0.60%

1% Full Power (5.6V)

2nd Harmonic, 3rd Harmonic

2nd Harmonic

40Hz: 0.19%, 100Hz: 0.13%

3rd Harmonic

40Hz: 0.39%, 100Hz: 0.02%

Enclosure

38 litres, front baffle 36mm (1.37") other panels 15mm (0.62") MDF internally braced.

Finish

Black paint

Connectors

2 x Binding posts

Fittings

8 x M10 inserts, 4 x Rubber feet

Dimensions (HxWxD)

435mm x 370mm x 355mm (17.10” x 14.60” x 14.00”)

Weight

46.3lbs (21kg)
