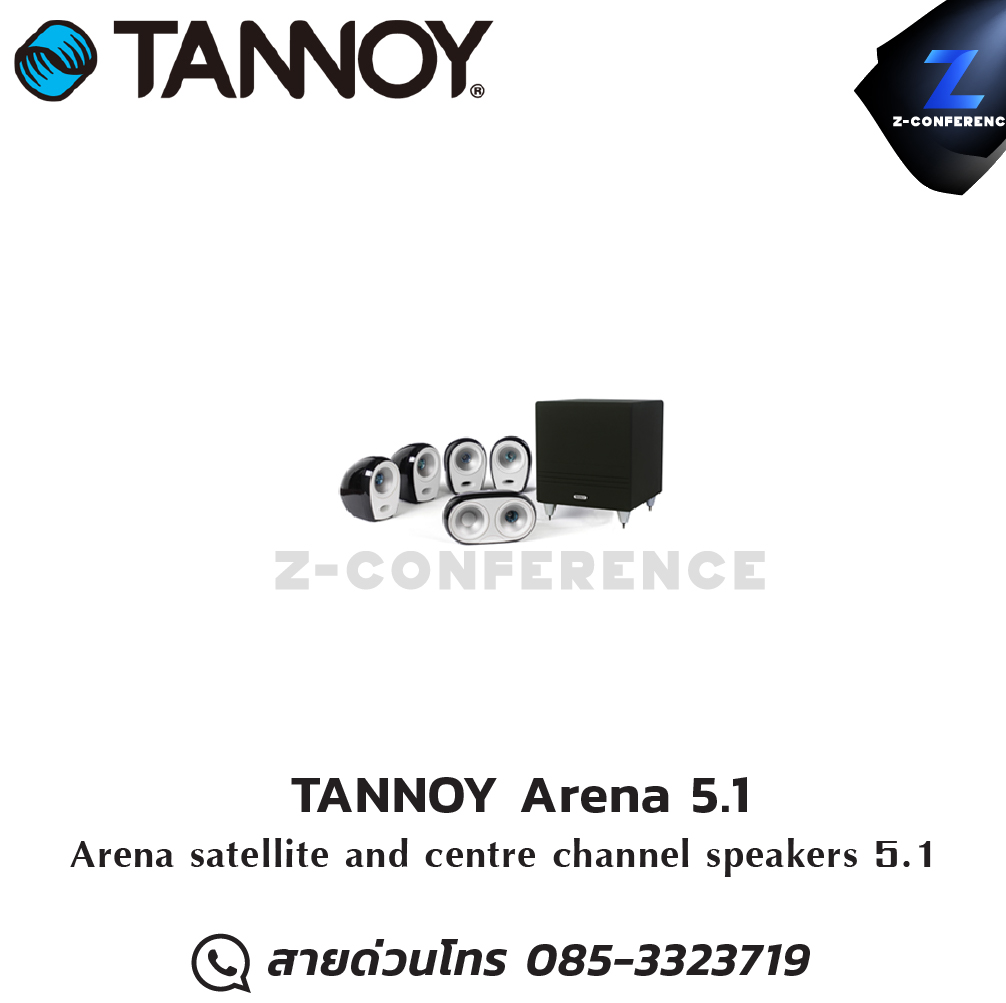

TANNOY Arena 5.1 Arena satellite and centre channel speakers 5.1 ลำโพง , ตู้ลำโพง , speaker

Arena Satellite

PERFORMANCE

Recommended amplifier power

15 - 100W

Sensitivity (2.83V @ 1m)

88dB

Nominal impedance

8 Ohms

Frequency response (-6dB)

80Hz - 54kHz

CROSSOVER

Crossover frequency

1.75kHz mid to high, 80Hz to subwoofer

Crossover type

2nd order low pass, 1st order high pass

DRIVE UNIT

Dual Concentric Driver

LF 100mm mixed fibre pulp cone, Dynamic overload Protection, HF 19mm titanium dome with neodymium magnet system

CONSTRUCTION

Enclosure Type

Ported

Internal volume (Satellite)

2.0L, 0.07cu.ft

Dimensions (Satellite) Including Grille

187.0mm x 133.5mm x 175.5mm

Weight (Satellite)

2.5kg (5.5lbs)

Arena Centre

PERFORMANCE

Recommended amplifier power

15 - 100W

Sensitivity (2.83V @ 1m)

88dB

Nominal impedance

8 ohm

Frequency response (-6dB)

80Hz - 54kHz

CROSSOVER

Crossover frequency

1.75kHz mid to high, 80Hz to subwoofer

Crossover type

2nd order low pass, 1st order high pass

DRIVE UNIT

Dual Concentric Driver

LF 100mm mixed fibre pulp cone, Dynamic overload Protection, HF 19mm titanium dome with neodymium magnet system

Bass Driver

100mm mixed fibre pulp cone

CONSTRUCTION

Enclosure Type

Ported

Internal volume

2.6L, 0.09cu.ft

Dimensions Including grille

133mm x 245mm x 149mm

Weight

4.0kg (8.8lbs)

TS10 Subwoofer

PERFORMANCE

Output Power

300W RMS

Low Frequency Response (-6dB)

29Hz

Input

2 x line level phono, 2 x XLR balanced

Input Filter

2nd order low pass, 50Hz - 150Hz, -6dB.

Auto Mute

After approximately 12 mins, in absence of input signal

DRIVE UNIT

Driver Type

250mm (10.00”)

CONTRUCTION

Enclosure Type

Closed box

Enclosure Volume

16.75L litre/ 0.6 cu.ft

Additional Features

Phase control, crossover defeat switch for LFE operation, Soft limiting to avoid overload, LF extension control

Enclosure Dimensions (Excluding feet)

323 x 286 x 286mm (12.75 x 11.30 x 11.30”)

Enclosure Weight

9.5kg / 21lbs

Mains Voltage

120V nominal AC ~, 60Hz, 230V nominal AC ~, 50Hz

Mains Fuse

120V - T3.15AL / 250V, 230V - T1.6AL / 250V

Maximum Power Consumption

416VA

Finish

Black
