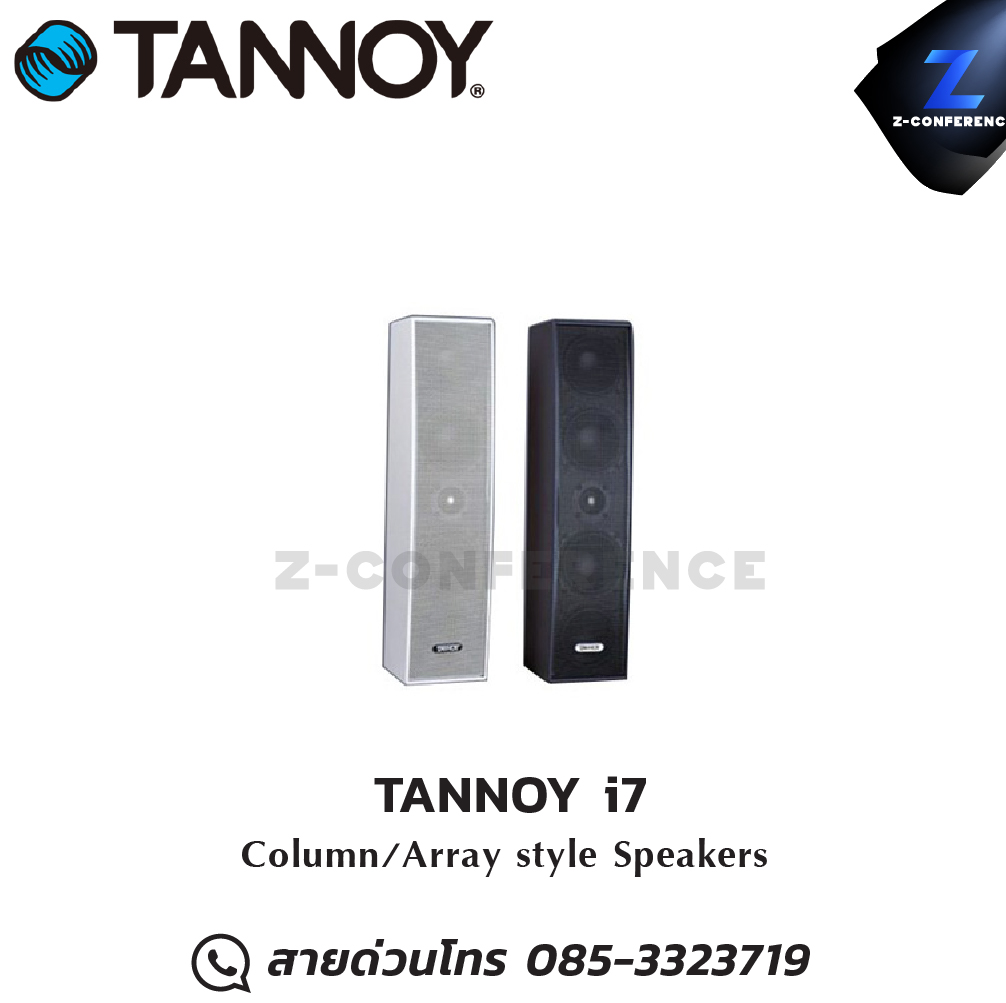

TANNOY i7 Column Speakers · Switchable 70 Volt / 100 Volt or 8Ω ลำโพง , ตู้ลำโพง , speaker

- Slim line profile, allowing discreet installation.

- Switchable 70 Volt / 100 Volt or 8 ohms.

- Multi tab voltage and wattage.

- THP 60 line transformer providing low insertion loss resulting in a more dynamic performance with extended bandwidth.

- Wide controlled dispersion (110° x 70°).

- Multiple angle bracket (i7 MAB) and i7 yoke.

- Five year loudspeaker warranty.

Model

i7-W

Product Type

Column Loudspeaker

Performance

Specifications

Recommended Amplifier Power

Up to 180 Watt / 8 ohms

Power Handling (2)

(Average) 90 Watt, (Programme) 180 Watt, (Peak) 360 Watt

Sensitivity 2.83 Volts @ 1 metre (3)

(Anechoic) 89dB, (Half Space) 92dB

Maximum SPL

(Average) 108dB, (Peak) 114dB

Wattage Tap Selections

60, 30, 15, 7.5 Watts

Switchable Transformer Options

70 Volt / 100 Volt or 8 ohms

Impedance

8 ohms

Crossover

Specifications

Frequency

1.8 kHz, 2.5 kHz

Type

Passive

Drive Unit

Specifications

Dispersion

110° x 70° (H x V)

Driver Complement

4 x 100mm (4”) bass unit, 1 x 25mm (1”) titanium tweeter

Construction

Specifications

Enclosure

7.88 litre MDF infinite baffle with perforated steel grille

Finish

Textured Black or White - paintable

Connectors

2 x Speakon NL4MP IN / OUT

Fittings

2 x M10 threaded inserts for i7Y & i7 MAB brackets

Mounting Options

(i7 MAB) Multiple angle bracket, (i7Y) Yoke

Dimensions

572 x 135 x 175mm (22 1/2 x 5 3/8 x 6 3/4“)

Dimensions (Shipping)

632 x 200 x 235 mm (24 7/8 x 7 7/8 x 9 1/4“) (Pack)

Weight (Each)

19 lbs (9kg)

Weight (Shipping)

20 lbs (9.1kg)
