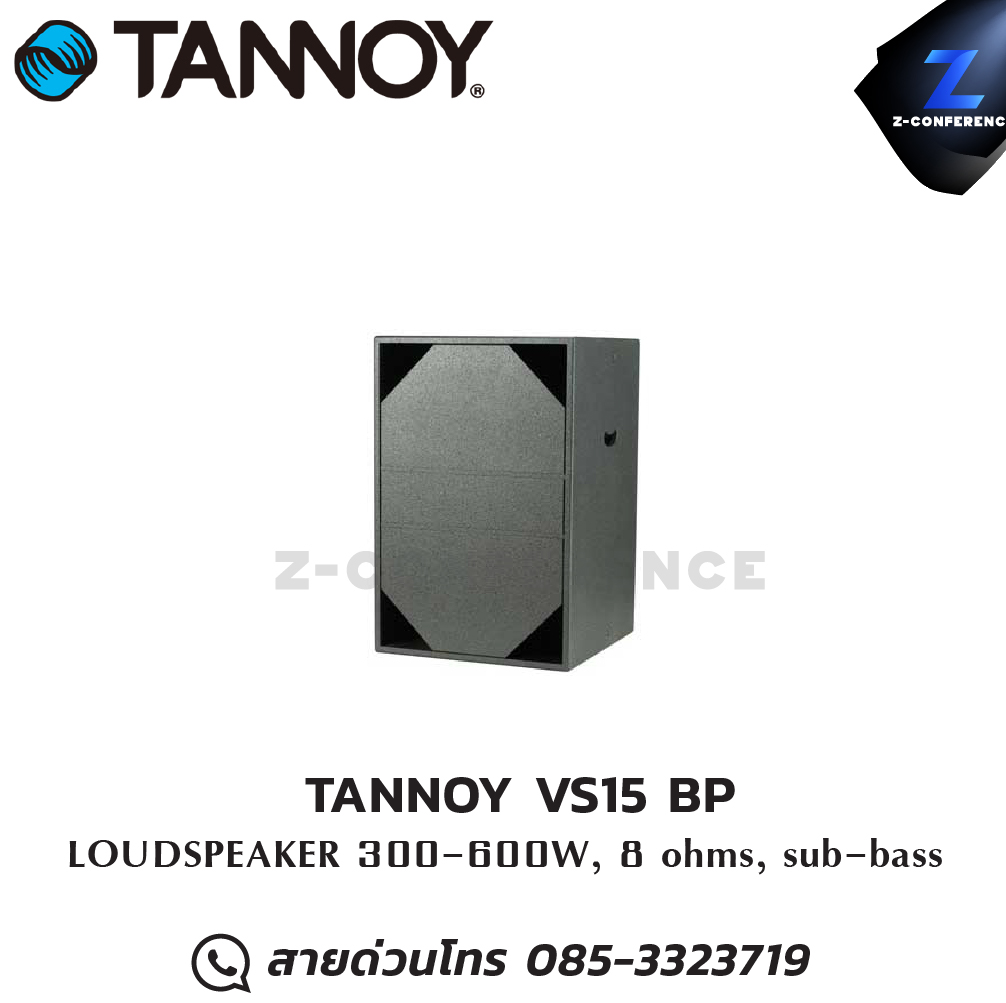

TANNOY VS15 BP compact, versatile subwoofer system ลำโพง , ตู้ลำโพง , speaker

Specifications :

System Type    Subwoofer-Bandpass

Frequency Response (-3dB) (1)    47Hz - 160Hz

Frequency Response (-10dB) (1)    37Hz - 200Hz

System Sensitivity (1W @1m) (2)     99dB (1W = 2.83V for 8 Ohms)

Power Handling    Average(2): 300 watt

Programme: 600 watt

Peak (10ms): 1200 watt

Recommended Amplifier Power    300 - 600 Watt / 8 Ohms

Rated Maximum SPL (2)    Average: 124dB

Peak: 130dB

Nominal Impedance    8 Ohms

Driver Complement    380mm (15.00”) High excursion bass driver

Recommended Crossover    80Hz - 160Hz, 24dB/octave

Recommended High-pass filter-30Hz, 24dB/octave

Distortion    10% Full Power (15.5V)

2nd Harmonic

40Hz: 0.65%

100kHz: 3.05%

3rd Harmonic

40Hz: 0.67%

100kHz: 0.70%

1% Full Power (4.9V)

2nd Harmonic

40Hz: 0.13%

100kHz: 0.76%

3rd Harmonic

40Hz: 0.30%

100kHz: 0.24%

Construction

Enclosure    100 litre Bandpass, 15mm (0.62”) birch plywood internally braced.

Finish    Textured black or white paint, custom colours on request

Connectors    2 x Speakon NL4MPR IN/OUT

Fittings    8 x M10 Flying inserts

2 x recessed carrying handles

Blanking plate for optional VTH pole mount

4 x Rubber Feet

Dimensions (HxWxD)    665 x 440 x 440mm

(26.18 x 17.32 x 17.32”)

Weight    27 Kg

(59.40 lbs)
