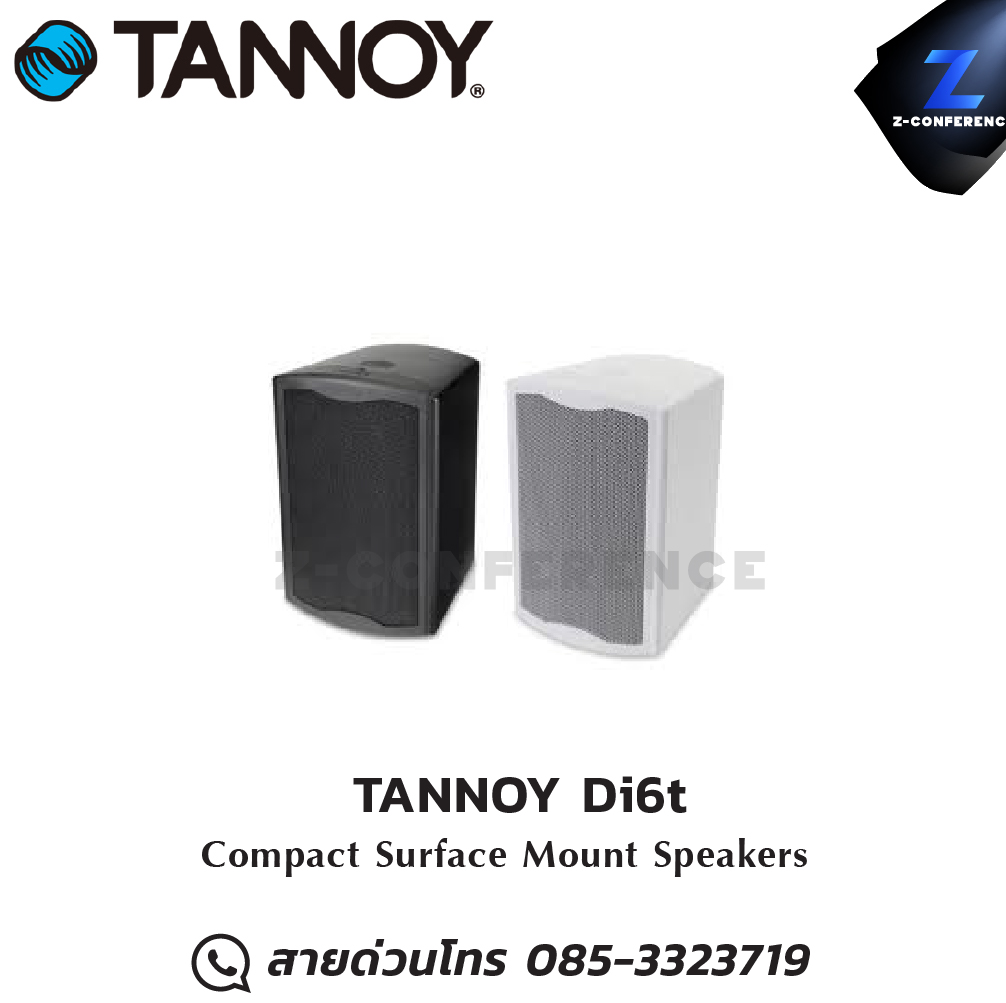

TANNOY Di6t ลำโพง Compact Surface Mount Speakers ลำโพง , ตู้ลำโพง , speaker

- 165mm (6.50") ICT™ transducer for high performance and durability.

- 90 degree controlled conical dispersion for optimum coverage and forward gain.

- Weather resistant rated IP64 to EN60529 (IEC529).

- High power handling and extended bandwidth.

- Phase coherent design for superior vocal articulation and music reproduction.

- No crossover required, ensuring better phase, impedance and sensitivity response and increased durability.

- Yoke bracket supplied, optional accessories include pole mount adaptor and the unique K-Ball™ pre-wired, fully adjustable multi-angle bracket.

- Low insertion loss 60W transformer for a more and dynamic performance in distributed audio installations.

- Bottom mounted switch for line voltage settings.

Model

Di6t

Product Type

Surface Mount Speaker

Frequency Response (-3dB)

75Hz - 22kHz

Frequency Range (-10dB)

55Hz - 24kHz

System Sensitivity (1W @1m)

90dB (1W = 2.45V for 6 Ohms)

Dispersion (-6dB)

90 degrees conical

Driver Complement

Specifications

Low Frequency

1x 165mm (6.50") Mineral loaded polypropylene

High Frequency

25mm (1.00") ICT

Crossover

7kHz inductively coupled

Directivity Factor (Q)

10.5 averaged 1kHz to 10kHz

Directivity Index (DI)

8.4 averaged 1kHz to 10kHz

Rated Maximum SPL

Average: 107dB Peak: 113dB

Power Handling

Average: 60W Programme: 120W Peak: 240W

Recommended Amplifier Power

120W @ 6 Ohms

Nominal Impedance

6 Ohms

Transformer Taps (Bottom rotary switch)

Specifications

70V

60W / 30W/15W / 7.5W / 3 / OFF & low impedance operation

100V

60W / 30W / 15W / 7.5W / OFF & low impedance operation

Distortion

Specifications

10% Full Power (6V) 250Hz, 1kHz, 10kHz

2nd Harmonic: 1.86%, 1.17%, 1.1% 3rd Harmonic: 0.12%, 0.54%, 0.04%

1% Full Power (1.9V) 250Hz, 1kHz, 10kHz

2nd Harmonic: 0.70%, 0.45%, 0.25% 3rd Harmonic: 0.14%, 0.39%, 0.065%

Construction

Specifications

Enclosure

High Impact Polystyrene (HIPS) rated IP64 to EN60529 (IEC529)

Grille

Steel, with weather resistant coating

Finish

Textured black or white paint

Connectors

Euroblock type removable locking connector with screw terminals with "loop through" facility

Fittings

1 x K-Ball™ bracket socket, 2 x M8 yoke bracket inserts

Supplied Accessories

Yoke bracket

Optional Accessories

Pole mount adaptor, multi angle K-Ball™ pre-wired bracket

Dimensions

357.5 x 230 x 223.2mm (H x W x D) (14.08 x 9.05 x 8.79”) (H x W X D)

NET Weight

11.02 lbs (5.0kg)
