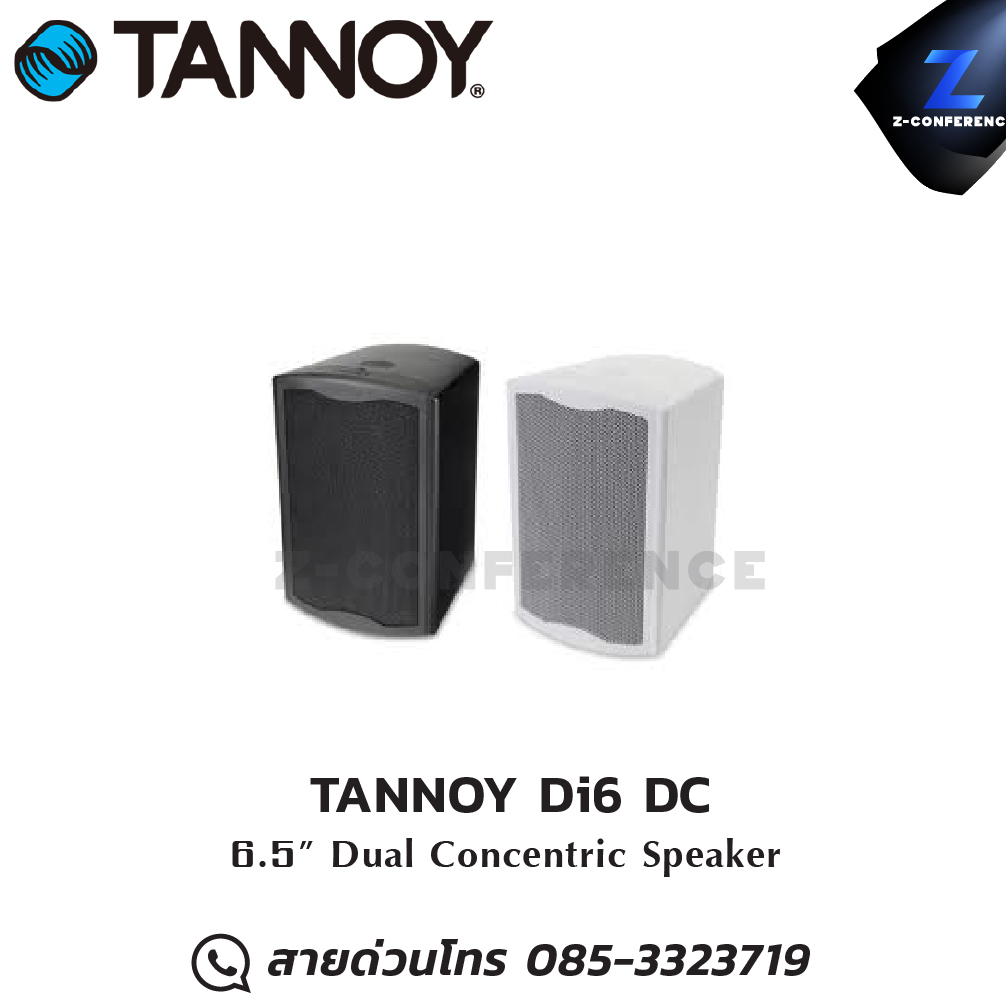

TANNOY Di6 DC ลำโพง Dual Concentric Speaker ลำโพง , ตู้ลำโพง , speaker

Tannoy Di6 DC Specifications:

• Frequency Response (-3dB): 75Hz -30kHz
• Frequency Range (-10dB): 55Hz - 35kHz
• System Sensitivity (1W @1m): 89dB (1W = 2.83V for 8 Ohms)
• Nominal Coverage Angle: 90 degrees conical
• Driver Complement: Dual Concentric™ constant directivity driver
  • Low Frequency: 165mm (6.50") resin treated multi fibre paper pulp cone
  • High Frequency: 25mm (1.00") titanium dome with neodymium magnet system
• Crossover:
  • 1.6kHz - 2nd order LF,
  • 2nd order HF (with dynamic HF protection)
• Directivity Factor (Q): 5.6 averaged 1kHz to 10kHz
• Directivity Index (DI): 7 averaged 1kHz to 10kHz
• Rated Maximum SPL:
  • Average: 109dB
  • Average: 107dB (60W tapping on transformer)
  • Peak: 115dB
• Power Handling:
  • Average: 90W
  • Programm: 180W
  • Peak: 360W
• Recommended Amplifier Power: 180W @ 8 Ohms
• Nominal Impedance: 8 Ohms
• Enclosure: High Impact Polystyrene (HIPS) rated IP64 to EN60529(IEC529)
• Grille: Steel, with weather resistant coating
• Finish: Textured black or white paint
• Connectors: Euroblock type removable locking connector with screw terminals with "loop through" facility
• Fittings:
  • 1x K-Ball™ Bracket socket
  • 2x M8 yoke bracket inserts
• Supplied Accessories: Yoke bracket
• Optional Accessories:
  • Pole mount adaptor
  • K-Ball™ pre-wired multi-angle bracket
• Dimensions: 14.08" x 9.05" x 8.79"
• NET Weight: 12.12 lbs
