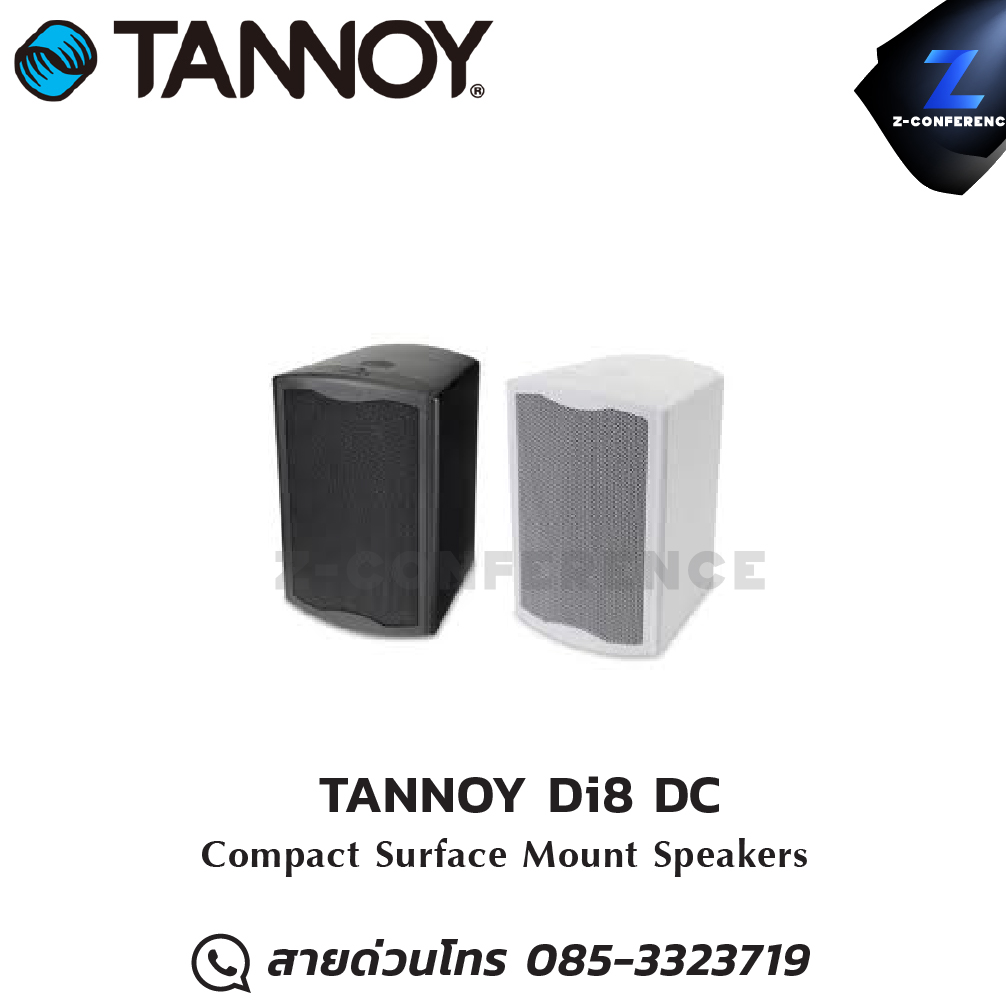

TANNOY Di8 DC ลำโพง Compact Surface Mount Speakers ลำโพง , ตู้ลำโพง , speaker

Di8 DC/ Di8 DCt

SYSTEM

Frequency Response (-3dB) (1)

65Hz - 30kHz

Frequency Range (-10dB) (1)

53Hz - 35kHz

System Sensitivity (1W @1m) (2)

91dB (1W = 2.83V for 8 Ohms)

Nominal Coverage Angle

90 degrees conical

Driver Complement

Dual Concentric constant directivity driver Low Frequency: 200mm (8.00") resin treated multi fibre paper pulp cone
High Frequency: 25mm (1.00") titanium dome with neodymium magnet system

Crossover

1.5kHz - 2nd order LF
2nd order HF (with dynamic HF protection)

Directivity Factor (Q)

5.5 averaged 1kHz to 10kHz

Directivity Index (DI)

7 averaged 1kHz to 10kHz

Rated Maximum SPL

Average: 111dB
Peak: 117dB

Power Handling (3)

Average: 90W
Programme: 180W
Peak: 360W

Recommended Amplifier Power

180W @ 8 Ohms

Nominal Impedance

8 Ohms

CONSTRUCTION

Enclosure

High Impact Polystyrene (HIPS)
rated IP64 to EN60529 (IEC529)

Grille

Steel, with weather resistant coating

Finish

Textured black or white paint
(custom trim colours can be supplied pre-fitted to special order - minimum order quantity applies)

Connectors

Euroblock type removable locking connector with screw terminals with "loop through" facility

Fittings

1 x K-Ball receiver Bracket socket
2 x M8 yoke bracket inserts

Supplied:
Accessories

Standard Yoke bracket included

Optional
Accessories

Pole mount adaptor, OPTIONAL
K-Ball pre-wired multi angle bracket, OPTIONAL

Dimensions

404.3 x 260 x 260.3mm
(15.92 x 10.24 x 10.25)

NET Weight

7.0kg
                  (15.87lbs)
