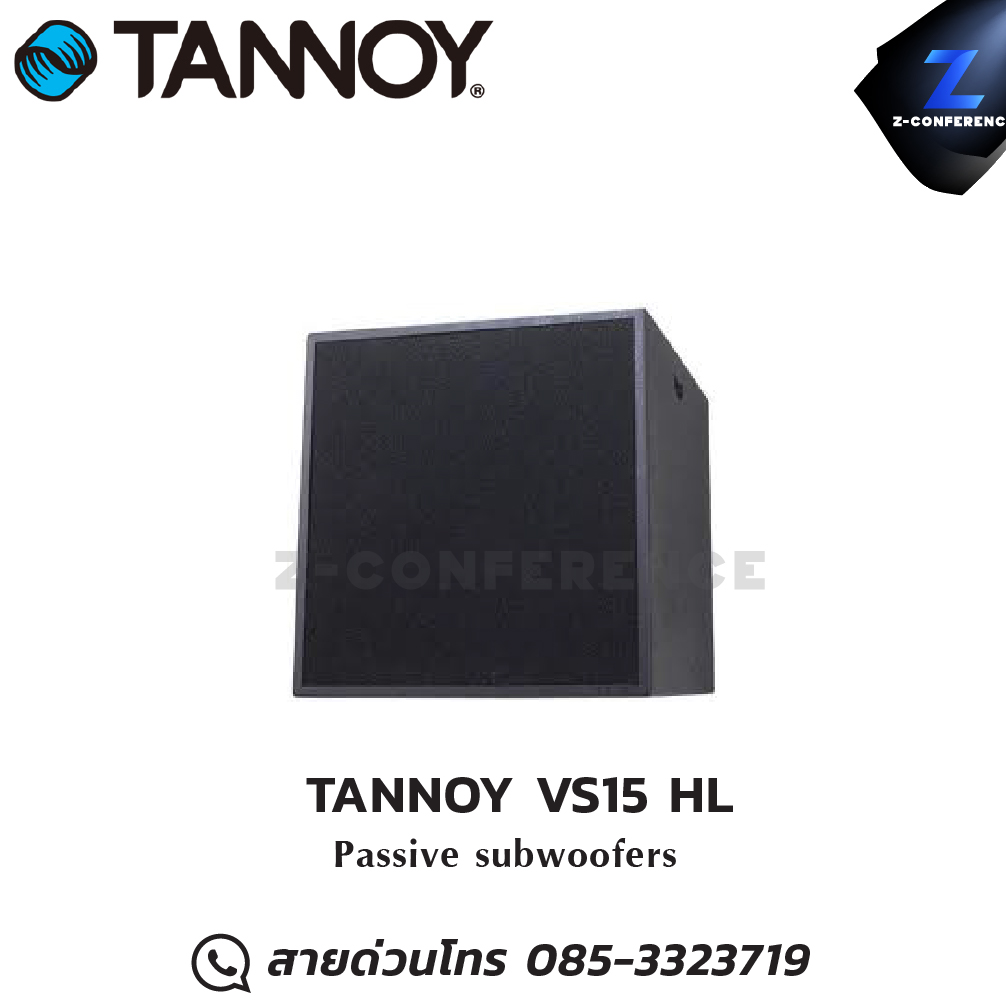

TANNOY VS15 HL ลำโพง Passive Subwoofers ลำโพง , ตู้ลำโพง , speaker

- 381 mm (15") bass unit.

- Deep, powerful bass enclosure.

- High power handling.

- High efficiency and low distortion.

- Rugged birch plywood construction.

- Convenient aspect ratio.

- 2 x integral carrying handles.

- Integral flying points.

Model

VS15 HL

Product Type

Subwoofer

Performance

Specifications

System type

Subwoofer – Horn Loaded

Frequency Response (1)

(+/- 3db) 60Hz - 300kHz

Recommended Amplifier Power

400 - 900 Watt / 8 ohms

Power Handling (2)

(Average) 400 Watt, (Programme) 800 Watt

Sensitivity 2.83 Volts @ 1 metre (3)

(Anechoic) 101dB, (Half Space) 104dB

Maximum SPL

(Average) 130dB, (Peak) 136dB

Impedance

8 ohms

Recommended Crossover Frequency

100Hz – 300Hz

Drive Unit

Specifications

Driver Complement

1 x 381mm (15") Bass unit

Construction

Specifications

Enclosure

Horn Loaded 18mm (5/8") multiple-ply birch plywood

Finish

Textured Black or White paint Foam covered, perforated steel grille

Connectors

2 x Neutrik™ Speakon (NL4MP)

Dimensions

578 x 555 x 650mm (22 7/8 x 21 3/4 x 25 9/16)

Shipping Dimensions

720 x 680 x 670mm (28 3/8 x 26 11/16 x 26 3/8") (Pack Dimensions)

Weight (Each)

88 lbs (40 kg)

Shipping Weight

Quantity 1, (Weight) 130lbs 10oz (47kg)
