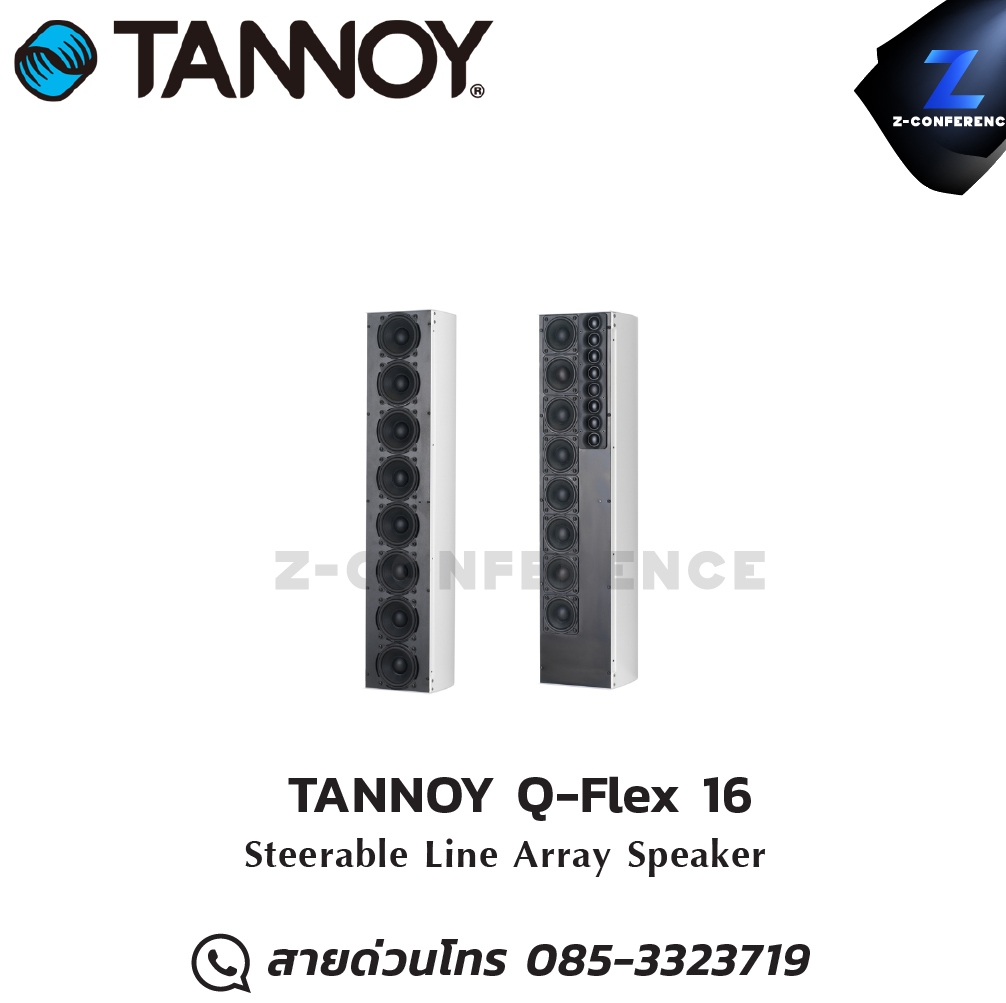

TANNOY Q-Flex 16 ลำโพง Steerable Line Array Speaker ลำโพง , ตู้ลำโพง , speaker

- Extremely intelligible speech and music reinforcement.

- Class leading steering control (+/- 70 degrees).

- Densely spaced transducers to defeatthe effects of aliasing.

- Intuitive BeamEngineTM GUI.

- Integrated cutting edge DSP, network control and amplification.

- Networkable with Tannoy VNET products.

- Architecturally pleasing.

- Fully PA/VA compliant.

- AES Connectivity.

- Input options for constant voltage systems and Dante digital audio networks.

- IP54 Certified (optional).

Model

QFlex 16

Product Type

Steerable Line Array Speaker

3" LF

8

1" HF

8

No. of Amp Channels 100W(RMS) @ 4 Ohms

16

Vertical Dispersion

Variable between 10 - 100 degrees (Asymmetric & multiple beams may also be generated)

Frequency Range

130Hz - 20kHz

Horizontal Dispersion

120 degrees

Aiming Angle Limit

/- 70 degrees

LF Beam Control Limit

700Hz

Maximum SPL @ 100ft (30m)*

94dB

Column Height

744mm (29.3")

Column Width

171.5mm (6.7")

Column Depth

150mm (5.9")

Typical Application Distance

25m (82ft.)

Sample Rate

96kHz

Audio Inputs

Analogue & AES/EBU

Weight (including brackets)

31.41 lbs (14.25kg)
