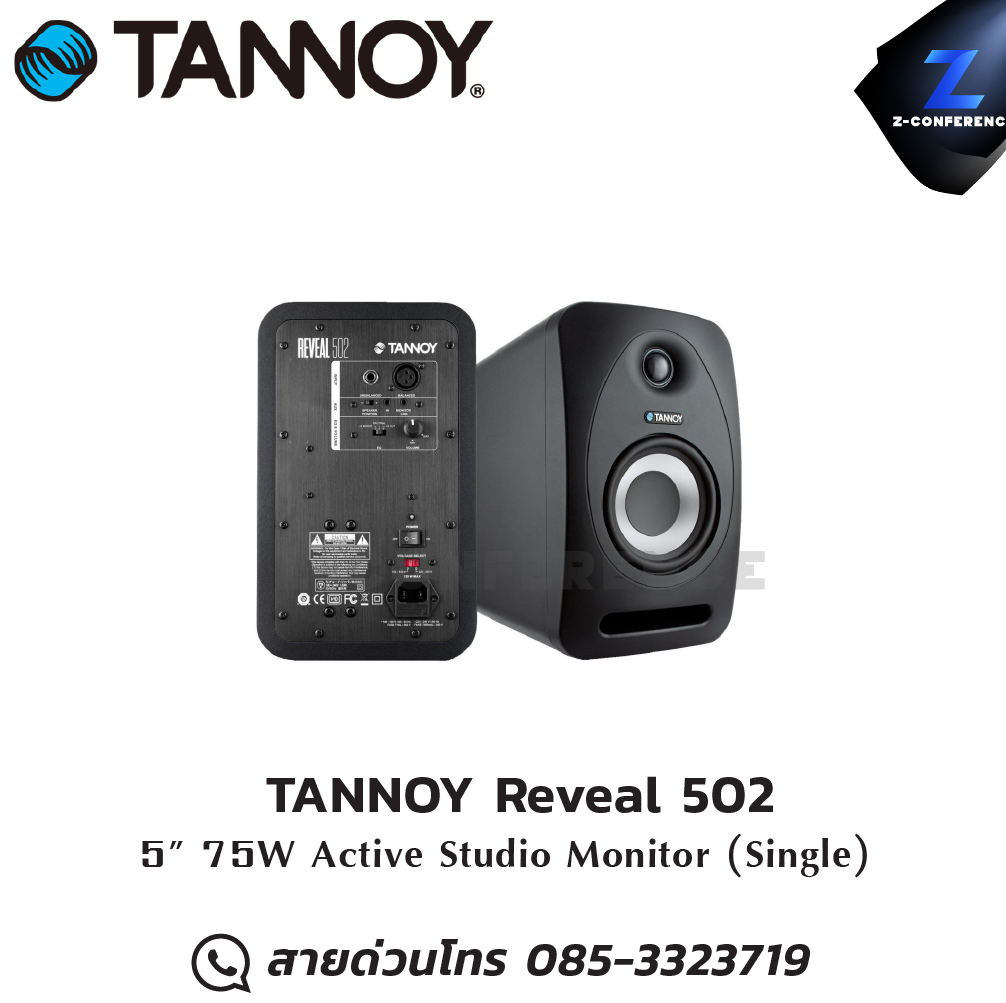

TANNOY Reveal 502 5″ powered 2-way reference speaker ลำโพง , ตู้ลำโพง , speaker

General

Frequency Response     49 Hz -43 kHz

Max SPL               108 dB

Membrane Sizes

LF/Mid Range    5" (130 mm)

HF           1" Soft Dome (25 mm)

Bi-amp Output Power, RMS

Power Output   75 Watts

LF/Mid Range    50 Watts

HF           25 Watts

THD        < 0.7 %

Input Types and Impedances

Balanced              XLR, 20 kOhm

Unbalanced        ¼" Jack, 10 kOhm

AUX Link              Mini Jack, 10 kOhm

AUX Link Output              Mini Jack

EQ Options

HF EQ Settings   -1.5 dB HF Cut / Neutral / +1.5 dB HF Boost

Crossover Frequency     2.3 kHz

Low Frequency Alignment           Optimized Front Port

Cabinet Dimensions

HxWxD, inches  11.8 x 7.2 x 9.4

HxWxD, mm       300 x 184 x 238
