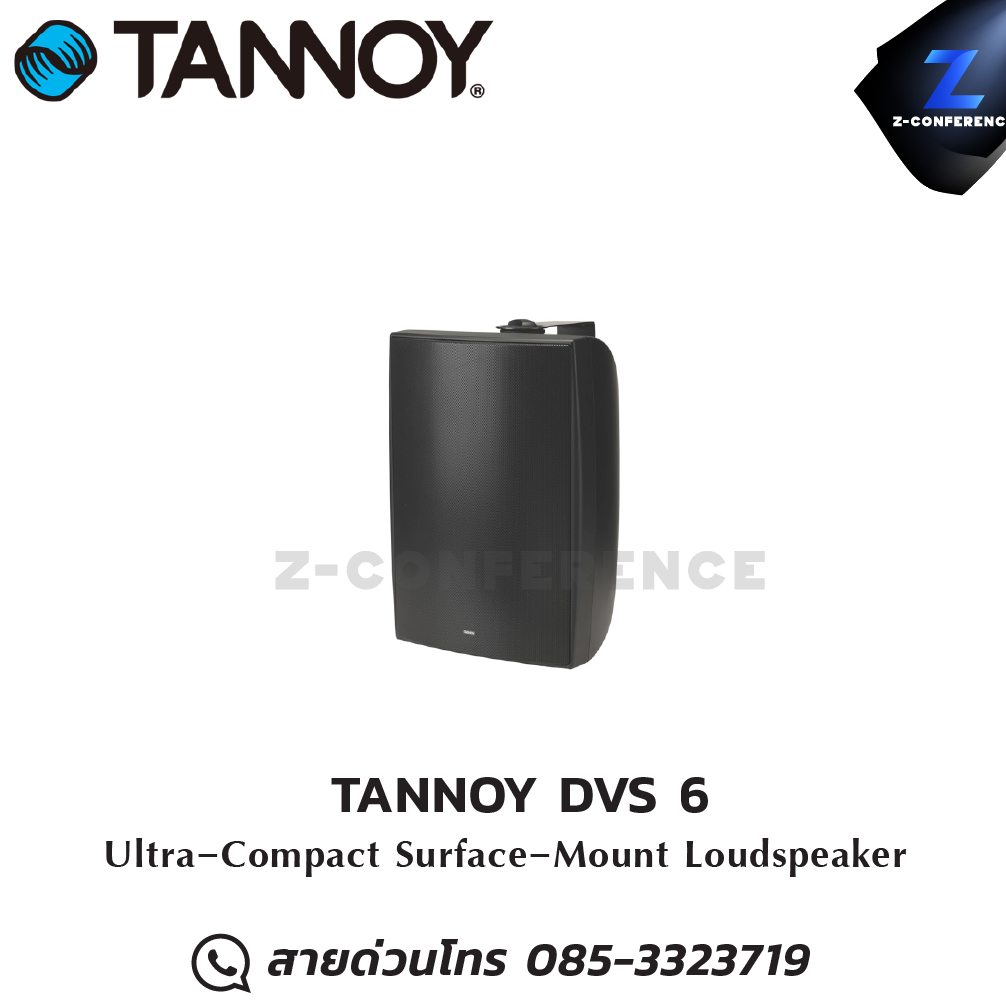

TANNOY DVS 6 Ultra-Compact Surface-Mount Loudspeaker ลำโพง , ตู้ลำโพง , speaker

FEATURES

• Coaxially mounted 150 mm (6.00") mineral loaded woofer with rubber surround and 20mm (0.79") soft dome diffraction loaded tweeter.
• High power & high sensitivity with extended frequency response and very low distortion
• Wide, controlled constant directivity dispersion for optimum coverage – minimising the number of devices required for a given space
• Lightweight self-contained enclosure
• Architecturally sensitive cylindrical form factor for minimal spatial impact
• Quick and easy hanging system for minimal contractor time
• Low insertion loss 60W line transformer
• Easily accessible tapping switch on top of enclosure.

SPECIFICATIONS

• Frequency Response (-3dB) (1):  80Hz – 20Hz
• Frequency Range (-10dB) (1):  60Hz – 30Hz
• System Sensitivity (1W @ 1m) (2):  88dB
• Dispersion (degrees conical):  90
• Transducers: Coaxial
• Low Frequency: 150mm (6.00") mineral loaded cone material
• High Frequency: 20mm (0.79")
• Crossover:  5.4kHz - 2nd order LF, 2nd order HF
• Directivity Factor (Q):  11.3 averaged 1kHz to 6.3kHz
• Directivity Index (DI):  10.5 averaged 1kHz to 6.3kHz
• Rated Maximum SPL (2):  Average: 105dB // Peak: 111dB
• Power Handling  Average: 60W // Program: 120W // Peak: 240W
• Recommended Amplifier Power: 120W @ 16 Ohms
• Nominal Impedance: 16 Ohms
