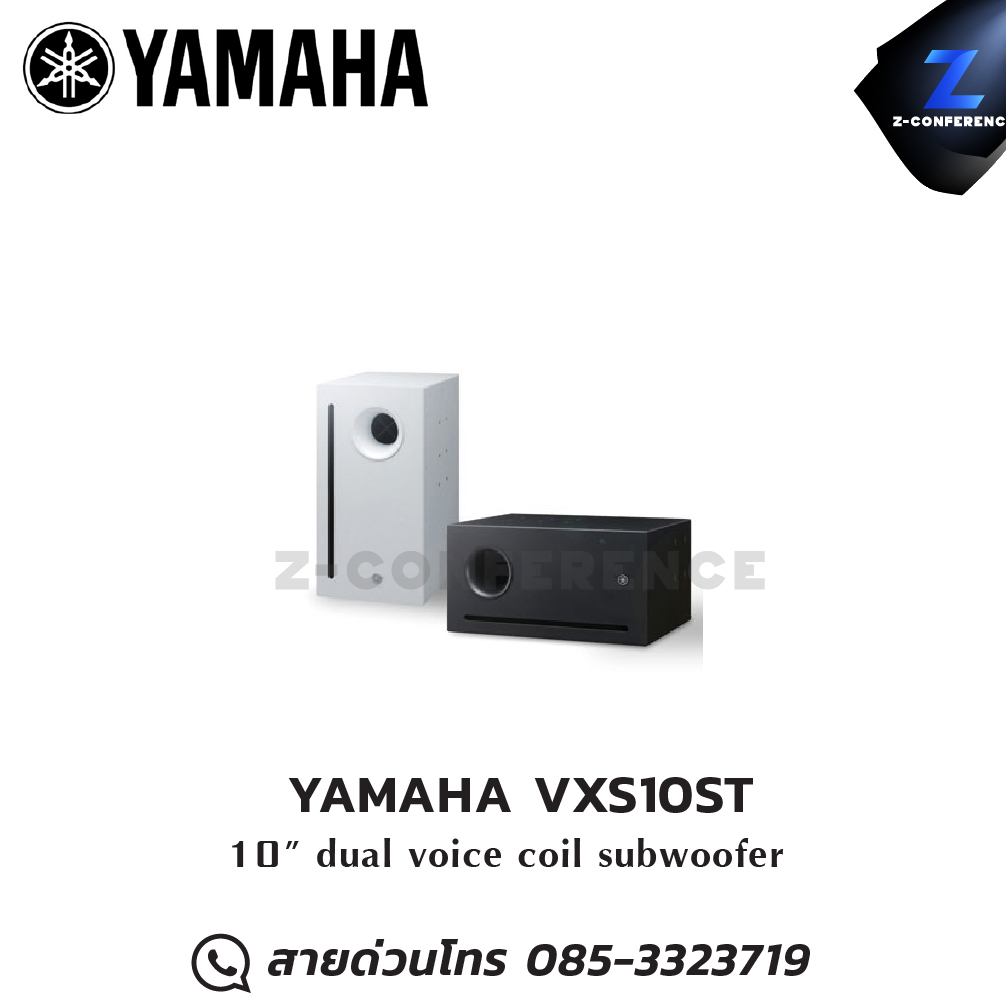

YAMAHA VXS10ST 10" dual voice coil subwoofer for low impedance systems ลำโพง , ตู้ลำโพง , speaker

specifications     VXS10S / VXS10SW          VXS10ST / VXS10STW

Speaker type     Subwoofer         Subwoofer

Frequency range (-10dB)              45Hz - 250Hz       45Hz - 250Hz

Components      LF            10" Dual Voice Coil           10" Dual Voice Coil

Power rating      NOISE   100W + 100W     -

PGM      200W + 200W     -

Nominal impedance       8Ω + 8Ω                -

Satellite impedance        8Ω load per satellite output recommended         8Ω load per satellite output recommended

SPL         Sensitivity (1W; 1m on axis)         96dB SPL              96dB SPL

Peak (Calculated)             125dB SPL            -

I/O connectors  Input: 1x Euroblock (4P)(CH1: + / -, CH2: + / -), Satellite Output: 1x Euroblock (4P)(ST 1: + / -, ST 2: + / -)             Input: 1x Euroblock (4P)(Input: + / -, Loop Thru: + / -), Satellite Output: 1x Euroblock (4P)(ST 1: + / -, ST 2: + / -)

Shape   Rectangular        Rectangular

Cabinet material               MDF      MDF

Finish    VXS10S: Black, VXS10SW: White                VXS10ST: Black, VXS10STW: White

Dimensions        W            260mm (10.2")  260mm (10.2")

H             500mm (19.7")  500mm (19.7")

D             389mm (15.3")  389mm (15.3")

Net weight         16.5kg (36.4lbs) 19.5kg (43.0lbs)

Accessories        Wall mount bracket        Wall mount bracket

Transformer taps             100V      -              200W (50Ω), 100W (100Ω), 50W (200Ω)

70V        -              200W (25Ω), 100W (50Ω), 50W (100Ω), 25W (200Ω)
