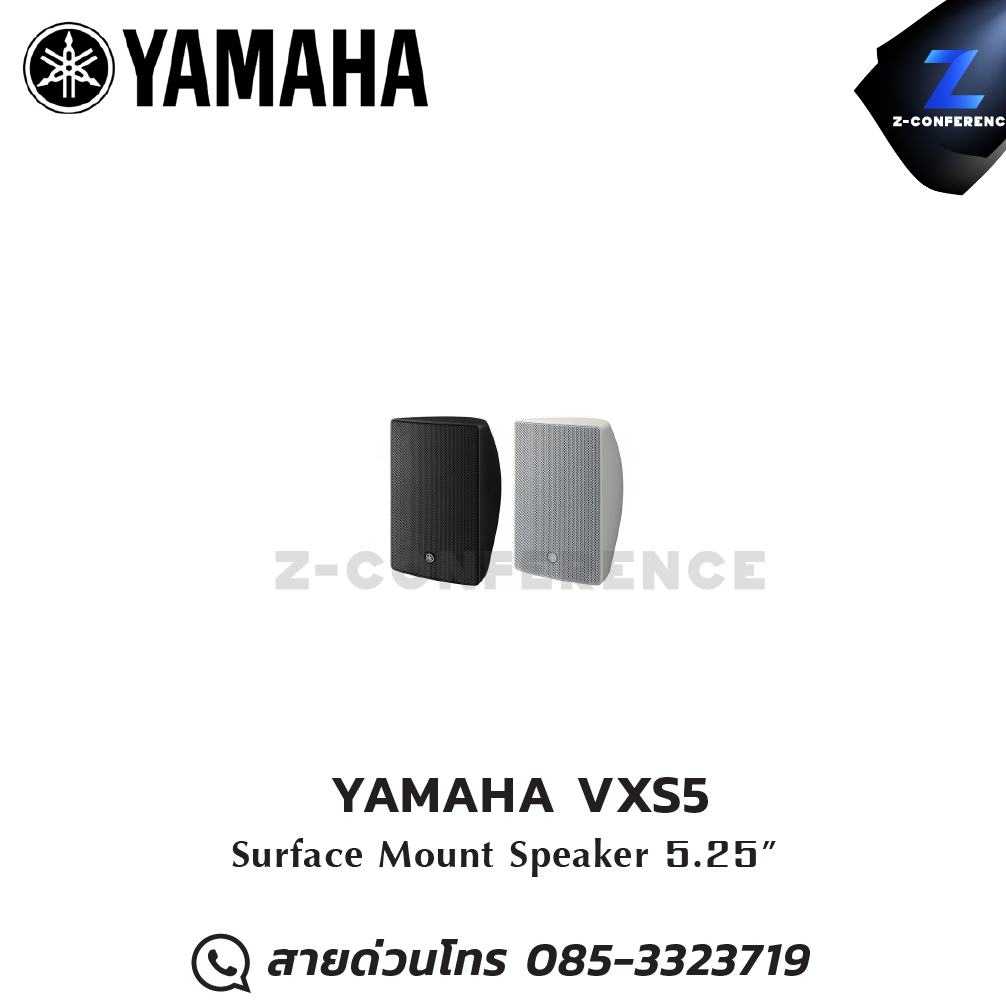

YAMAHA VXS5 Surface Mount Speaker 5.25″ cone woofer with a 0.75″ soft dome tweeter ลำโพง , ตู้ลำโพง , speaker

General specifications

VXS5 / VXS5W

Speaker type

2-way, Bass-reflex

Frequency range (-10dB)

62Hz - 20kHz

Nominal coverage

H

120°

V

120°

Components

LF

5.25" Cone

HF

0.75" Soft dome

Crossover

3kHz

Power rating

NOISE

75W

PGM

150W

Nominal impedance

8O

Transformer taps

100V

30W (330O), 15W (670O), 7.5W (1.3kO)

70V

30W (170O), 15W (330O), 7.5W (670O), 3.8W (1.3kO)

SPL

Sensitivity (1W; 1m on axis)

89dB SPL

Peak (Calculated)

114dB SPL

I/O connectors

1x Euroblock (4P) (Input: + / -, Loop Thru: + / -)

Shape

Rectangular

Cabinet material

ABS

Finish

VXS5:Black / VXS5W:White

Waterproof

IP35

Dimensions

W

176mm (6.9")

H

280mm (11.0")

D

163mm (6.4")

Net weight

3.6kg (7.9lbs)

Accessories

Wall / Ceiling mount bracket, Terminal cover

Packaging

Packaged in pairs

Certificate

UL1480, NFPA70, CE, EAC, RoHS

EN54-24 compliance

-
