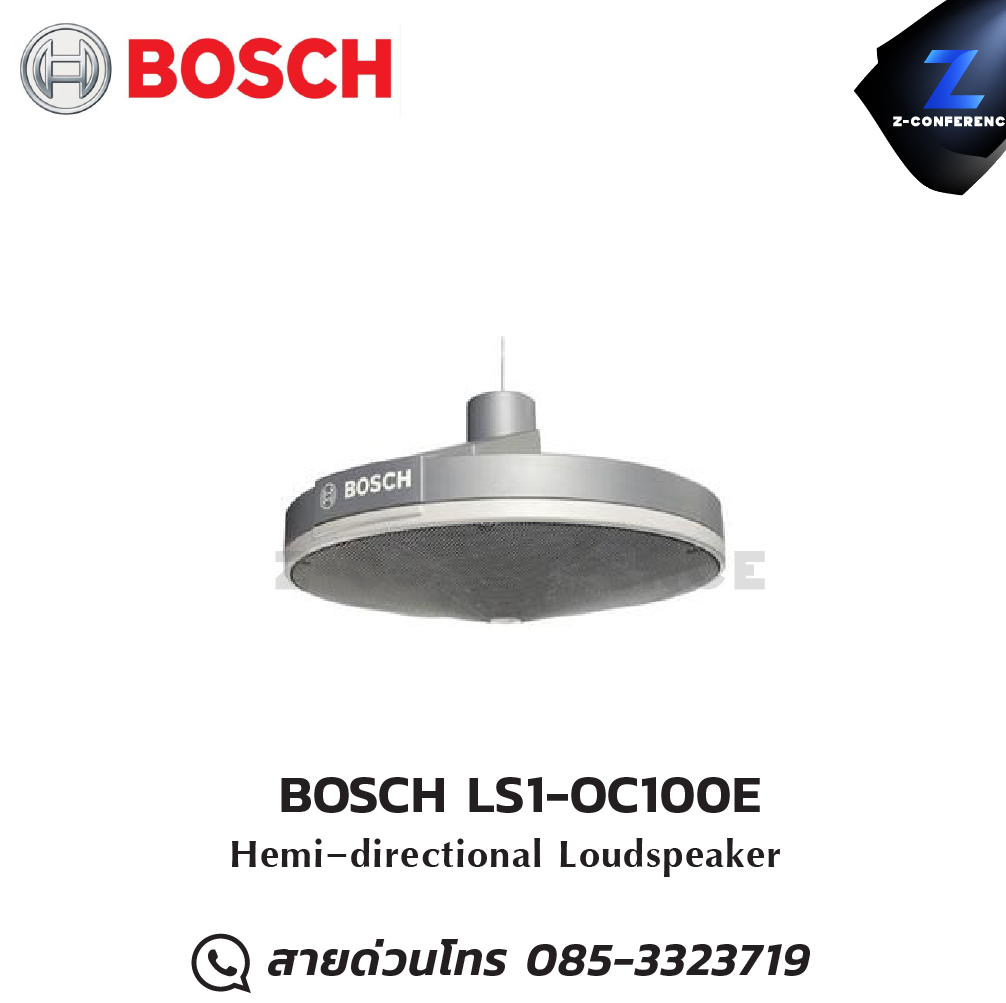

BOSCH LS1-OC100E 100 W. Hemi‑directional Loudspeaker ลำโพง , ตู้ลำโพง , speaker

Technical specifications

Electrical*

Maximum power         150 W

Rated power 100 W    (100 – 50 – 25 W)

Sound pressure level at 100 W /

1 W (1 kHz, 1 m)

109 / 89 dB

Sound pressure level at 100 W /

1 W (8 kHz, 1 m)

113 / 93 dB

Opening angle at 1 kHz / 4 kHz

(‑6 dB)

170º / 145º (horizontal)

170º / 170º (vertical)

Effective frequency range

(‑10 dB)

60 Hz to 17 kHz

Rated voltage 100 V and 28.3 V

Rated impedance 100 ohm and 8 ohm

Connector Ceramic screw terminal

* Technical performance data acc. to IEC 60268‑5

Mechanical

LS1‑OC100E

Dimensions (dia. x H) 800 x 425 mm

(31.50 x 16.74 in)

Weight 29 kg (63.93 lb)

Color baffle White (RAL 9010)

Color top cover Silver (RAL 9023)

Color grille Silver (RAL 9006)

Material ABS TSG

LM1‑MSB

Dimensions (H x W x D) 150 x 100 x 150 mm

(5.90 x 3.94 x 5.90 in)

Weight 2.9 kg (6.39 lb)

Color Silver (RAL 9023)

Material Stainless steel (sandblasted)
