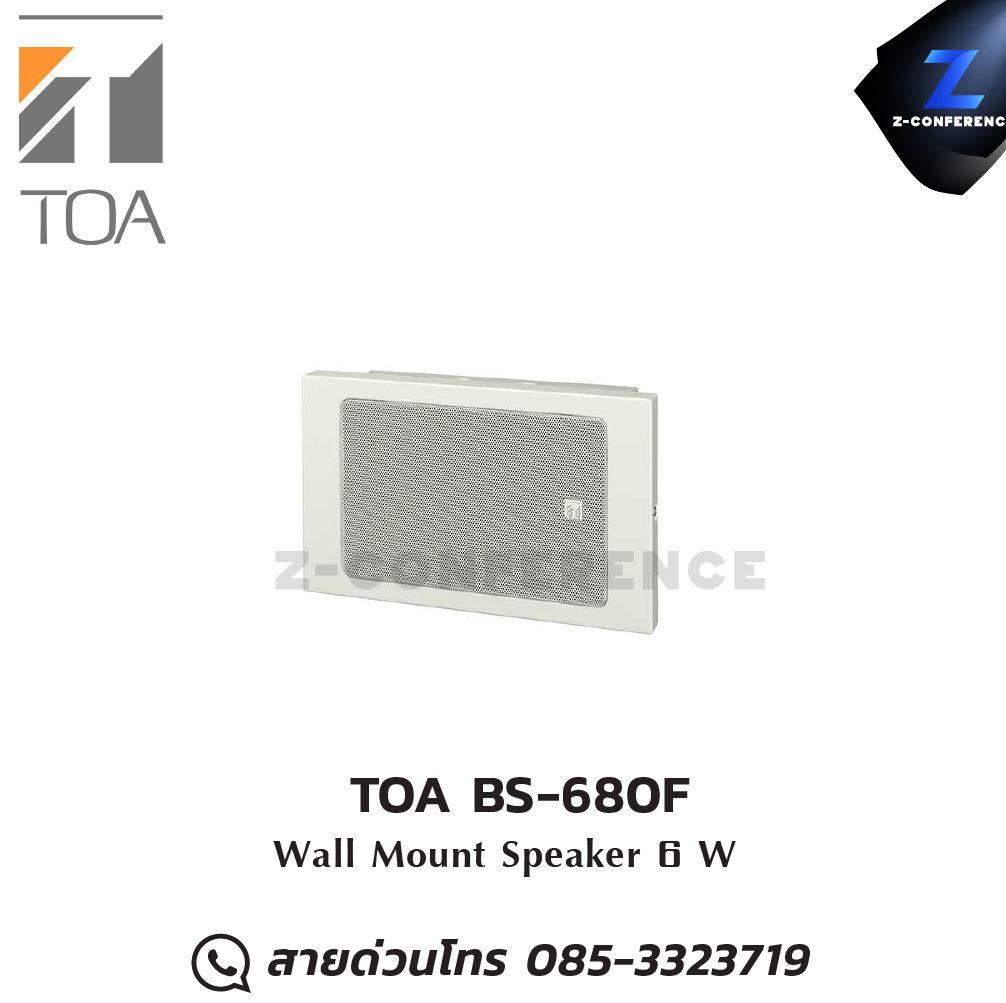

TOA BS-680F Wall Mount Speaker 6 W ลำโพง , ตู้ลำโพง , speaker

Rated Input

6 W (100 V line), 3 W (70 V line)

Rated Impedance

100 V line: 1.7 kΩ (6 W), 3.3 kΩ (3 W), 6.7 kΩ (1.5 W), 13 kΩ (0.8 W)
70 V line: 1.7 kΩ (3 W), 3.3 kΩ (1.5 W), 6.7 kΩ (0.8 W), 13 kΩ (0.4 W)

Sensitivity

94 dB (1 W, 1 m) (500 - 5,000 Hz, pink noise)

Frequency Response

150 - 20,000 Hz (peak -20 dB)

Speaker Component

16 cm (6") double cone-type

Applicable Cable

600 V vinyl-insulated cable (IV wire or HIV wire)
Solid wire: φ0.8 - φ1.6 mm (equivalent to AWG 20 - 14)
7-core twisted wire: 0.75 - 1.25 m㎡ (equivalent to AWG 18 - 16)

Connection

Push-in connector (bridging terminal)

Finish

Baffle, Cabinet: Steel plate, off-white (RAL 9010 or equivalent color)
Grille: Surface-treated steel plate net, off-white (RAL 9010 or equivalent color)

Dimensions

310 (W) × 190 (H) × 87.2 (D) mm (12.2" × 7.48" × 3.43")

Weight

3 kg (6.61 lb)

Accessory

Rubber grommet …2, Speaker mounting screw (4 × 16) …4
