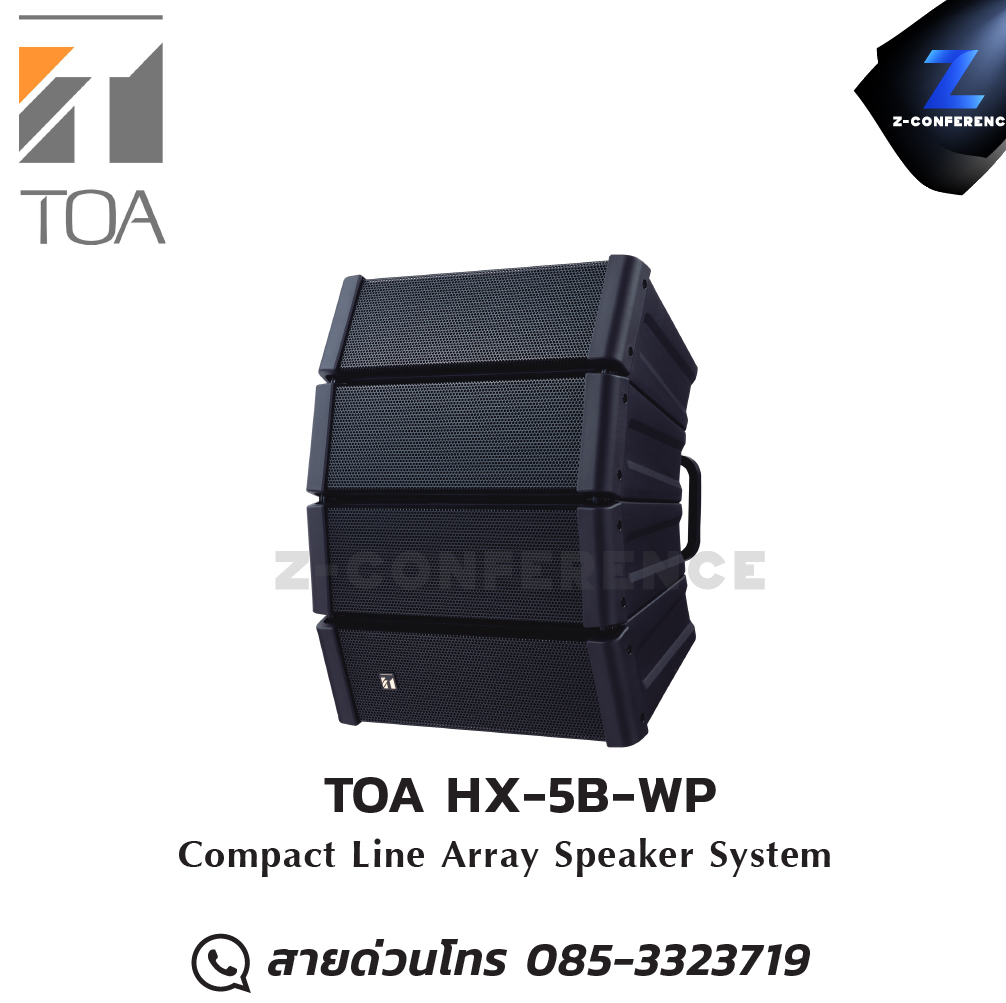

TOA HX-5B-WP Compact Line Array Speaker ลำโพง , ตู้ลำโพง , speaker

Enclosure            Sealed type

Power Handling Capacity              Continuous pink noise: 200 W, Continuous program: 600 W

Rated Impedance            8 Ω

Sensitivity (1 W, 1 m)      96 dB (60゜ mode), 97 dB (45゜ mode), 98 dB (30゜ mode), 99 dB (15゜ mode)

Frequency Response     95 Hz - 20 kHz (-10 dB) (60%%d mode), 100 Hz - 20 kHz (-10 dB) (45%%d mode),

105 Hz - 20 kHz (-10 dB) (30%%d mode), 110 Hz - 20 kHz (-10 dB) (15%%d mode)

Crossover Frequency     4 kHz

Directivity Angle               Horizontal: 100゜ (2 kHz or more)

Vertical: 60゜ (800 Hz or more), 45゜ (1.2 kHz or more), 30゜ (1.6 kHz or more),

15゜ (3.2 kHz or more) variable

Speaker Component      Low frequency: 12 cm cone-type × 4, High frequency: Balanced dome-type × 12

Speaker Cord     2-core cabtyre cord with diameter of 6 mm

Water Protection             IPX4 (Install with the every speaker module downward.)

Operating Temperature                -15 ℃ to +50 ℃

Finish    Enclosure: Polypropylene, black

Punched net: Surface-treated steel plate, black, rust proof coating

Dimensions        408 (W) × 546 (H) × 342 (D) mm

Weight 16 kg

Accessory            Hanging bracket …2, Hex. wrench …1

Option  Matching transformer: MT-200

Speaker mounting bracket: HY-PF1WP, HY-CW1WP, HY-WM1WP, HY-WM2WP,

HY-CN1B-WP
