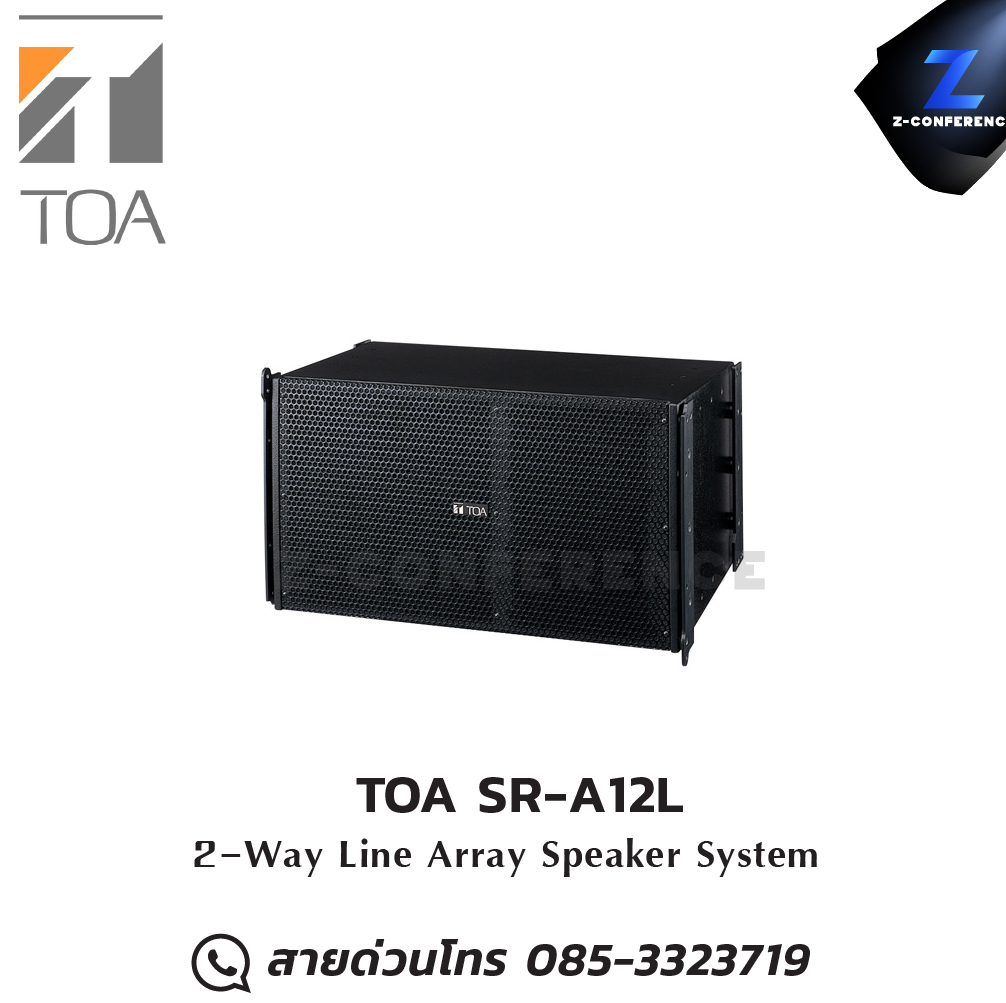

TOA SR-A12L 2-Way Line Array Speaker ลำโพง , ตู้ลำโพง , speaker

Enclosure            Bass-reflex type

Power Handling Capacity              Continuous program Low frequency: 450 W, High frequency: 180 W

Rated Impedance            Low frequency: 8 Ω, High frequency: 16 Ω

Sensitivity           Low frequency: 98 dB (1 W, 1 m), High frequency: 110 dB (1 W, 1m)

Frequency Response     50 - 20,000 Hz (when using DP-0206* (option))

Crossover Frequency     1,000 Hz (when using DP-0206* (option))

Directivity Angle               Horizontal: 90゜, Vertical: 5゜

Speaker Component      Low frequency: 30 cm cone-type

High frequency: Wave front control horn 90゜ (horizontal) × 5゜ (vertical)

+ compression driver × 2

Input Connector               M5 screw terminal, distance between barriers: 12.2 mm

and Neutrik NL4MP × 2

Finish    Enclosure: Plywood, black, paint

Front grille: Punched steel plate, black, acrylic paint

Dimensions        740 (W) × 433 (H) × 469 (D) mm

Weight 49 kg (including accessories)

Accessory            Joint plate …2, Joint plate mounting bolt (M10) …16

Option  Rigging frame: SR-RF12

Digital processor: DP-0206*

Digital Mixer: D-901

Digital Mixing Processor Unit: D-2008SP
