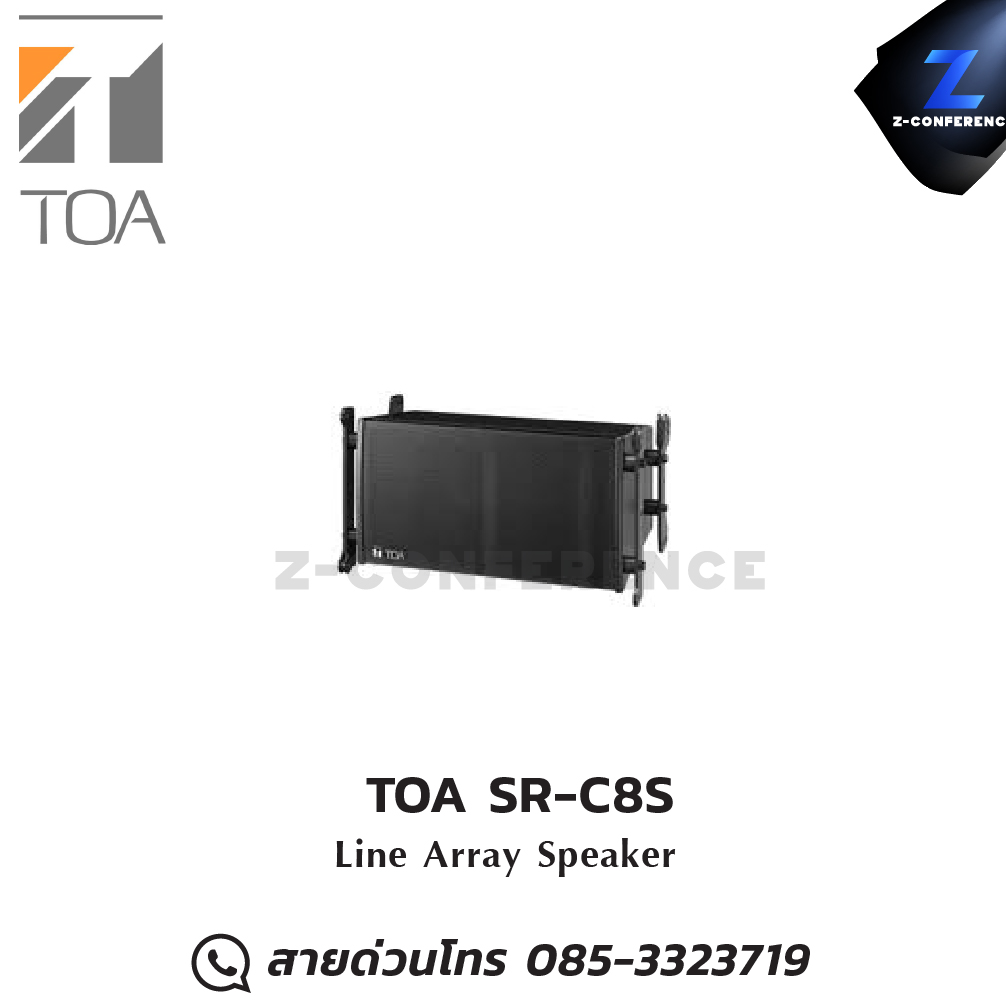

TOA SR-C8S Line Array Speaker ลำโพง , ตู้ลำโพง , speaker

Enclosure            Bass-reflex type

Power Handling Capacity              Continuous program: 360 W (single-amp mode)

Low: 360 W, High: 180 W (bi-amp mode)

Rated Impedance            16 Ω (single-amp mode)

Low: 16 Ω, High: 16 Ω (bi-amp mode)

Sensitivity           98 dB (1 W, 1 m) (single-amp mode)

Low: 95 dB (1 W, 1 m), High: 110 dB (1 W, 1 m) (bi-amp mode)

Frequency Response     65 - 20,000 Hz (when driven with the optional DP-0206's recommended parameters*)

Crossover Frequency     1,600 Hz (when driven with the optional DP-0206's recommended parameters)

Directivity Angle               Horizontal: 110゜, Vertical: 15゜

Speaker Component      Low frequency: 20 cm (8") cone-type

High frequency: Wave front control horn 110゜ (horizontal) × 15゜ (vertical)

+ compression driver × 2

Input Connector               M5 screw terminal, distance between barriers: 12.2 mm (0.48")

and Neutrik NL4MP × 2

Finish    Enclosure: Plywood, black, urethane paint

Front grille: Punched steel plate, black, paint

Dimensions        526.6 (W) × 293 (H) × 294 (D) mm (20.73 × 11.54" × 11.57")

Weight 16 kg (35.27 lb)

Accessory            M8 connection bolt …4

Option  Cluster bracket: SR-CL8

Rigging frame: SR-RF8

Tilt joint bracket: SR-TP8

Digital processor: DP-0206*

Digital Mixer: D-901

Digital Mixing Processor Unit: D-2008SP
