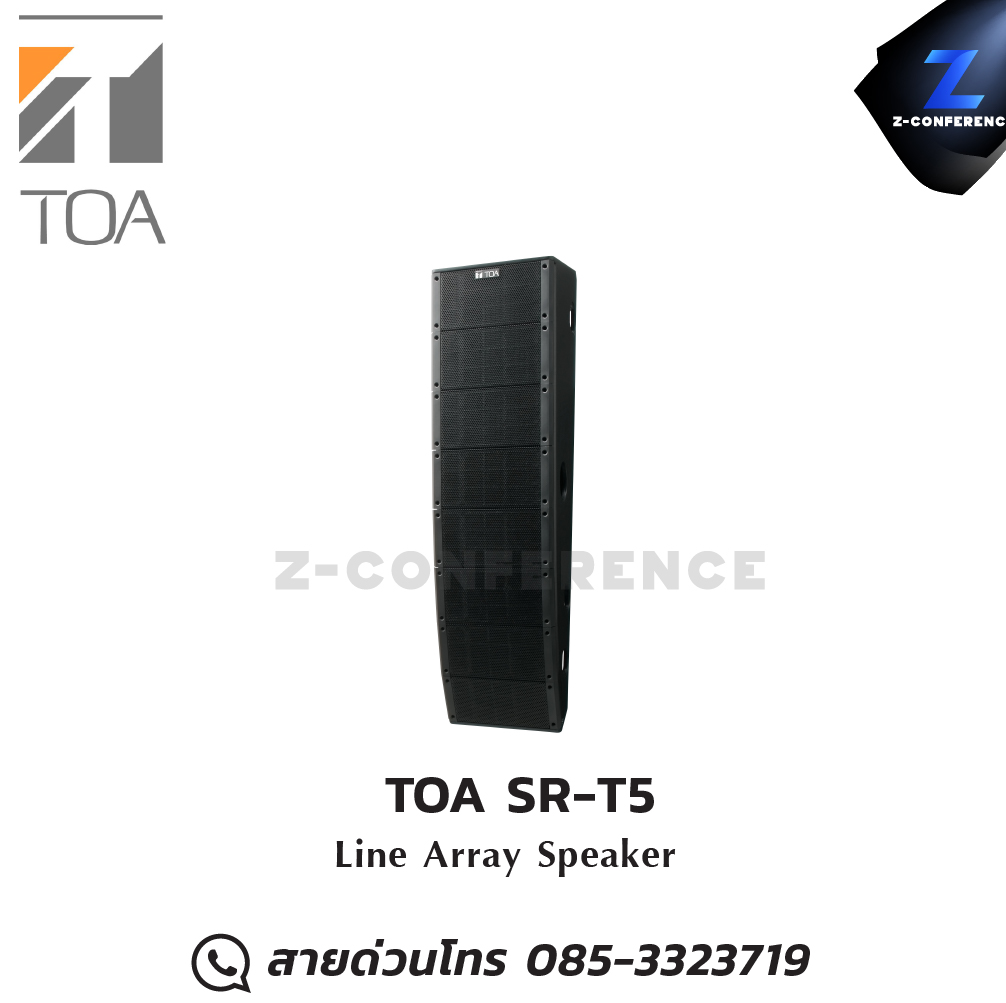

TOA SR-T5 Line Array Speaker ลำโพง , ตู้ลำโพง , speaker

Enclosure            Bass-reflex type

Power Handling Capacity              Continuous pink noise: 250 W

Continuous program: 750 W

Rated Impedance            8 Ω

Sensitivity           96 dB (1 W, 1 m equivalent, measured at 4 m)

Frequency Response     70 Hz - 20 kHz

Crossover Frequency     3 kHz

Directivity Angle               Horizontal: 100゜

Vertical: 35゜

Speaker Component      Low frequency: 13 cm (5.12") cone-type × 8

High frequency: Balanced dome-type × 24

Recommended Installation Height           4 - 5.5 m (13.12 - 18.04 ft)

(Speaker top, when installed in sport facilities 30 m (98.43 ft) in length)

Adjustable Angle Range                Downward: 0゜, 1゜, 2゜, 3゜ (when the supplied mounting bracket is used)

Horizontal (left or right): 5゜, 10゜ (when the optional SR-PB5 Wall Pan Bracket

Input Terminal  M5 screw terminal, distance between barriers: 12.2 mm (0.48")

Finish    Enclosure: Plywood, black, urethane paint

Baffle: Polypropylene, black

Punched net: Steel plate, black, acrylic paint

Mounting bracket: Steel plate, black, acrylic paint

Dimensions        310 (W) × 1239 (H) × 341 (D) mm (12.2" × 48.78" × 13.43")

Weight 29 kg (63.93 lb) (including accessories)

Accessory            Mounting bracket A …1, Mounting bracket B …1, Bracket mounting bolt …6,

Side cover …5, Side cover mounting screw …10, Eye bolt …1, Safety wire …1

Option  Wall pan bracket: SR-PB5

(to be used in conjunction with the supplied mounting bracket)

Matching transformer: MT-S0601
