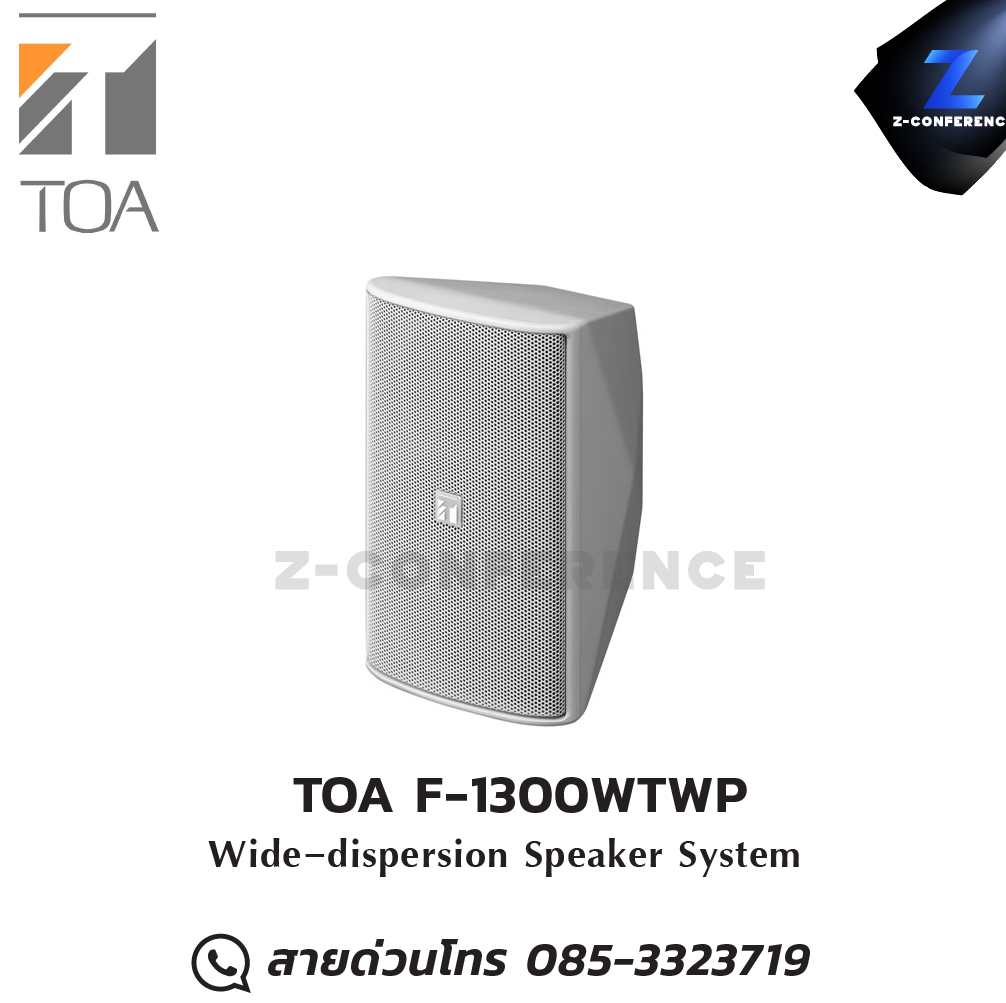

TOA F-1300WTWP Wide-dispersion Speaker system ลำโพง , ตู้ลำโพง , speaker

Enclosure            Bass-reflex type

Rated Input        30 W

Rated Impedance            100 V line: 330 Ω (30 W), 1 kΩ (10 W), 3.3 kΩ (3 W), 10 kΩ (1 W)

70 V line: 170 Ω (30 W), 330 Ω (15 W), 1 kΩ (5 W), 3.3 kΩ (1.5 W), 10 kΩ (0.5 W)

Sensitivity           90 dB (1 W, 1 m) at installation in 1/2 free sound field

Frequency Response     80 Hz - 20 kHz, -10 dB at installation in 1/2 free sound field

Crossover Frequency     2 kHz

Directivity Angle               Horizontal: 110゜, Vertical: 100゜

Speaker Component      Low frequency: 13 cm (5") cone-type, High frequency: 25 mm (1") dome tweeter

Input Terminal  Push-in terminal

Water Protection             IPX4

Operating Temperature                -10 ℃ to +50 ℃ (14 ゜F to 122 ゜F)

Finish    Enclosure: HIPS, white

Punched net: Surface-treated steel plate, white, anticorrosive paint

Joint bracket, wall bracket: Stainless steel

Speaker bracket: Die-cast aluminum, white, paint

Dimensions        162 (W) × 250 (H) × 161 (D) mm (6.38" × 9.84" × 6.34")

Weight 3.6 kg (7.94 lb) (including the supplied brackets)

Accessory            Speaker bracket …1, Joint bracket …1, Wall bracket …1,

Bracket fixing screw …1 set, Terminal cover …1, Terminal cover mounting screw …4

Option  Speaker mount bracket: YS-60B
