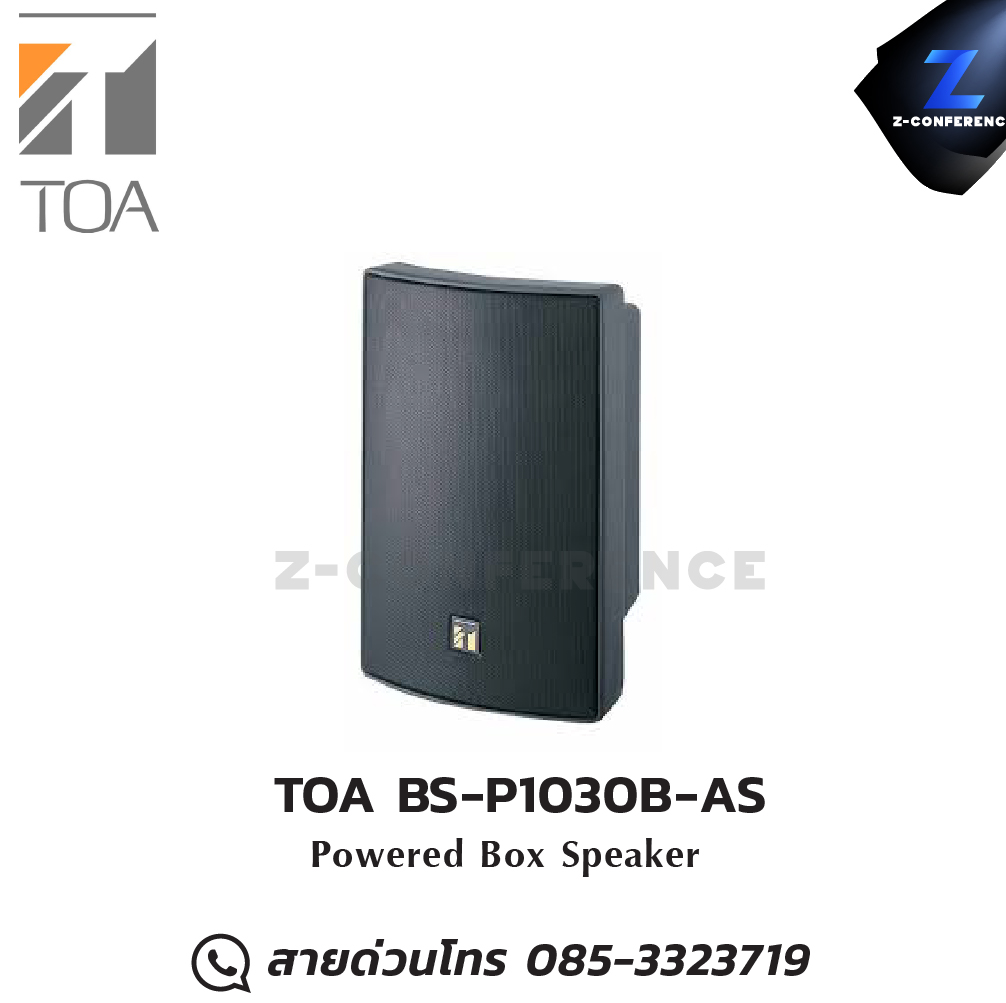

TOA BS-P1030B-AS Powered Box Speaker ลำโพง , ตู้ลำโพง , speaker

Enclosure            2-way bass-reflex type

Power Source    24 V DC, 1.5 A (DC Socket "+" Type A: 5.5 x 2.1mm)

Power Consumption      24 W (1A) at rated output

Input     5 kΩ, unbalanced (RCA plug)

Maximum input: +6 dB V ( 2 Vrms)

Signal Gain          +30 dB

Volume Adjustment       Volume Control (Factory pre-set to middle position)

Sound Pressure Level    90 dB (1 W, 1 m)

Frequency Response     80 Hz - 20 kHz

Speaker Component      12 cm cone-type + dome-type

Speaker Cord     Length: 2m Flying Lead (RCA plug) & DC socket ("+")

Operating Temperature                -10 ℃ to +50 ℃

Water Protection             IPX4 (can be installed vertically or horizontally.*)

Finish    Enclosure: ABS resin, black (RAL9011 GRAPHITE BLACK), paint

Net: Surface treated steel plate, black (RAL9011 GRAPHITE BLACK), powder coating

Bracket: Surface treated steel plate, black equivalent to RAL9011 GRAPHITE BLACK,

powder coating

Dimension          196 (W) × 290 (H) × 150 (D) mm (unit only)

Weight 2.5 kg (unit only)

Accessory            Bracket…1, Bracket mounting screw…2, Bracket mounting washer…2

Option  Applicable bracket: SP-410

Applicable stand: ST-16A
