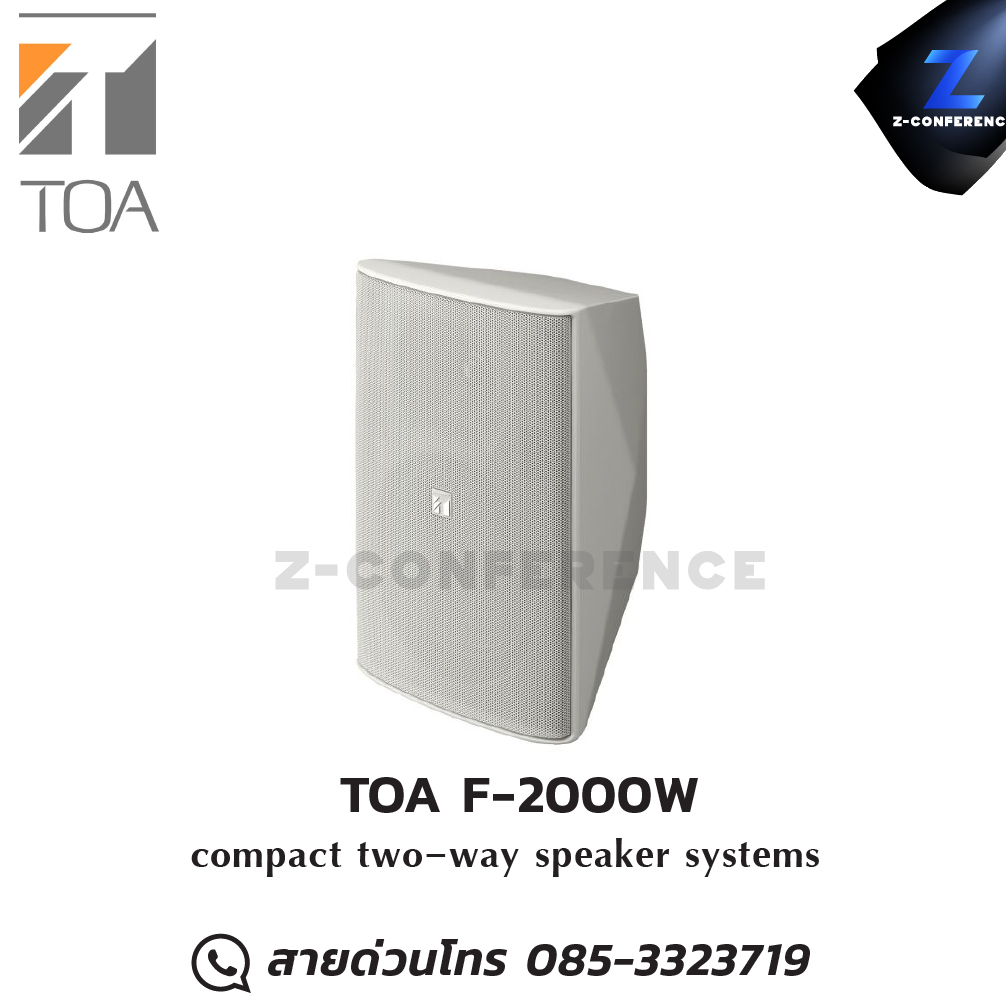

TOA F-2000W compact 2-way speaker system ลำโพง , ตู้ลำโพง , speaker

Enclosure            Bass-reflex type

Power Handling Capacity              Continuous pink noise: 60 W

Continuous program: 180 W

Rated Impedance            8 Ω

Sensitivity           92 dB (1 W, 1 m) at installation in 1/2 free sound field

93 dB (1 W, 1 m) at installation in 1/2 free sound field (with horn adapter)

Frequency Response     65 - 20,000 Hz, -10 dB at installation in 1/2 free sound field

Crossover Frequency     2.5 kHz

Directivity Angle               Horizontal: 110゜, Vertical: 100゜

Horizontal: 80゜, Vertical: 80゜ (with horn adapter)

Speaker Component      Low frequency: 20 cm (8") cone-type

High frequency: 25 mm (1") dome tweeter

Input Terminal  Push-in terminal

Finish    Enclosure: HIPS, white

Punched net: Surface-treated steel plate, white, paint

Joint bracket, wall bracket: Steel plate, t2.0, white, paint

Speaker bracket: Die-cast aluminum, white, paint

Dimensions        244 (W) × 373 (H) × 235 (D) mm (9.61" × 14.69" × 9.25")

Weight 6.5 kg (14.33 lb) (including the supplied brackets)

Accessory            Speaker bracket …1, Joint bracket …1, Wall bracket …1,

Bracket fixing screw … 1 set, Horn adapter …1, Horn adapter mounting screw …4

Option  Ceiling mount bracket: HY-CM20W (used for the horizontal speaker mounting)

Cluster bracket: HY-CL20B

Speaker stand: ST-16A
