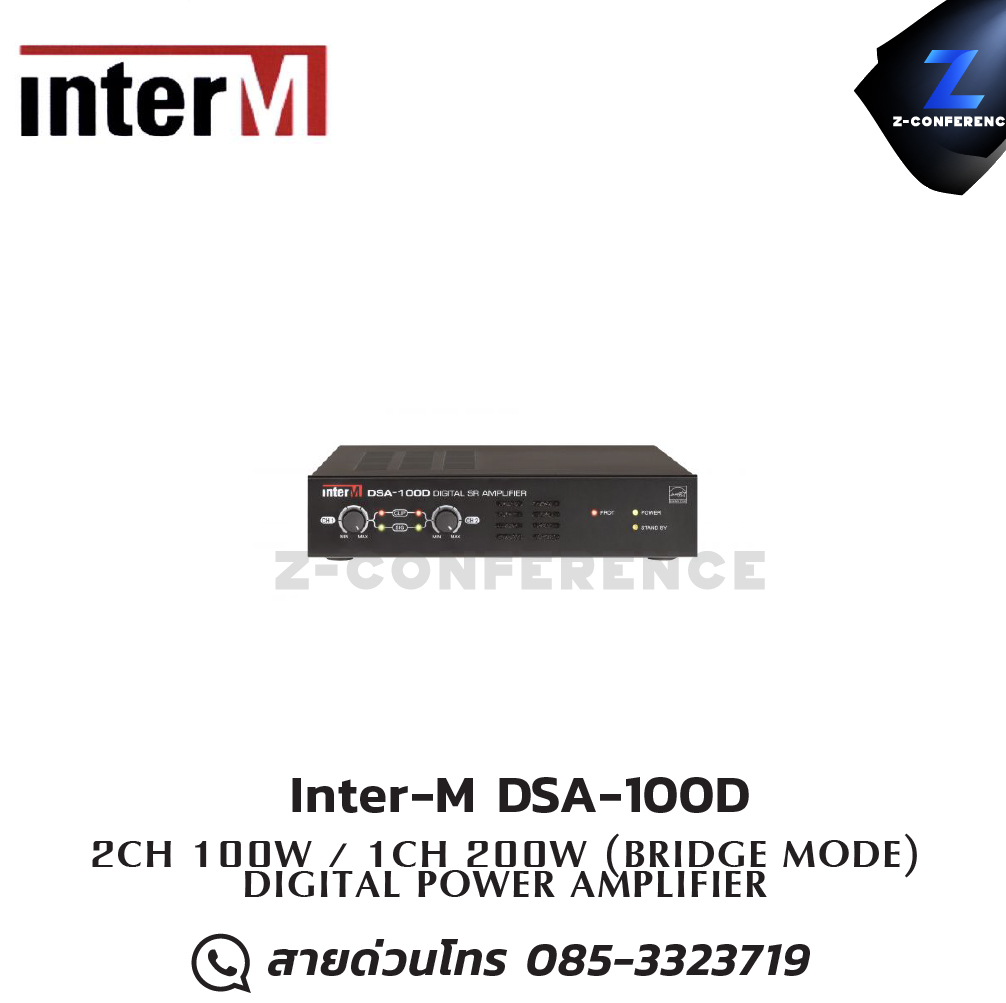

Inter-M DSA-100D Power Amplifier 2ch. 100W , แอมป์ , amplifier, power amp, power amplifier

- Compact Design

  The DSA Series is a amplifier 100 watts x 2 of Power that is housed in half rack 1 RU compact chassis. Ideal

  for applications where high power stereo amplification is required such as board room and class rooms.

- Professional Grade D-Class Amplifier and Switch Mode Power Supply (SMPS)

  Class D amplifier offer improved total harmonic distortion with an increased signal to noise ratio of

  professional grade sound quality. SMPS creates a high efficiency amplifier offering reduced power

  consumption and low heat dissipation.

- APD (Auto Power Down)

  The amplifiers automatically enter into a standby mode after 30 min when unit is not in active, it takes a

  advantage of reducing power consumption.

  The unit returns to operating status within 3 sec upon signal detection.

- GAIN selection switch

  Selectable proper input sensitivity of amplifier either +4dBu (1.2283V) or -20dBu (77.5mV)

- High Pass Filter (120Hz)

  Built in High Pass Filter to protect the speaker against unwanted low frequency.

- Bridge-Mono Mode

  Bridging allows power to be output at 200 watts.

- Power Mode Selection Switch

  There are 3 selectable power mode switch (ON/REMOTE/OFF). When switch is selected as REMOTE, the

  amplifiers can be remotely power ON/OFF control.

- Remote Power Connector

  The remote power allows the amplifier to be turned on or off from a distance or other device via dry contact

  closure.

- Front siganl and protection LED indicators

  LED indicators for POWER, STAND BY, PROTECTION, SIGNAL and CLIP on the front panel give a easy

  verification of operation status.

- Advanced Protection Circuitry

  Advanced protection circuitry guards against overheating, shorted outputs, DC output, overloads.

- Balanced Input

  This connection is used to ensure the lowest noise operation which eliminates the common noise from the cable.
