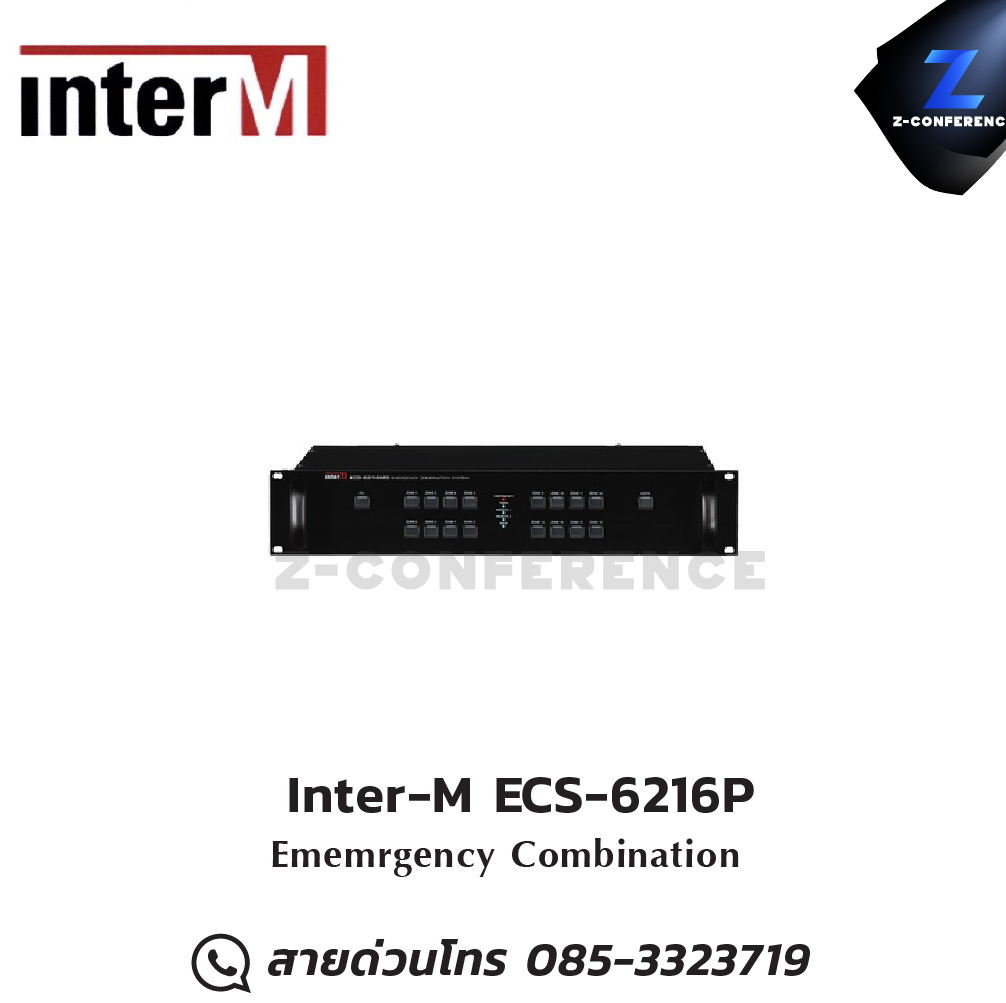

Inter-M ECS-6216P Emergency Combination , แอมป์ , amplifier, power amp, power amplifier

- INTEGRATED SYSTEM

  System consists of EMERGENCY SWITCHER, MATRIX, RELAY GROUP, SPEAKER SELECTOR, and

  TERMINAL BOARD functions.

- BROADCAST CONTROL DEPENDING ON PRIORITIES

  It controls the priority broadcasting by connecting to emergency panel (EP-6216) and remote MIC (RM-6024).

  It switches to remote or emergency broadcasting due to priorities of emergency signals or outside remote signals

  (remote MIC broadcasting signals) even if during general broadcasting.

- AUTOMATIC FIRE DETECTING FUNCTION

  With 16-channels corresponding to fire contact point signals, fire alarm broadcasting will be
  transmitted automatically.

- MANUAL CONTROL OF EMERGENCY AND GENERAL BROADCASTS

   It can broadcast to desired channels by manually selecting emergency or general broadcasting.

- DISPLAY BROADCASTING STATUS

   It displays the priority and broadcasting status on LED, so user can verify the broadcasting status
   without any effort.

- MEMORY/SAVE FUNCTION

  Fire/RM Macro information will be saved in internal PC memory allowing for normal
  operation in event of PC error.

- CHANNEL EXPANSION AND RS-485 COMMUNICATION INTERFACE

  Long distance transmission is available and system can be expanded to 160 Zones by utilizing ECS-6216S.

- INSTALLATION TIME AND SPACE

  Since it is an integrated system, it is easy to install and can save installation labor, time and space.
