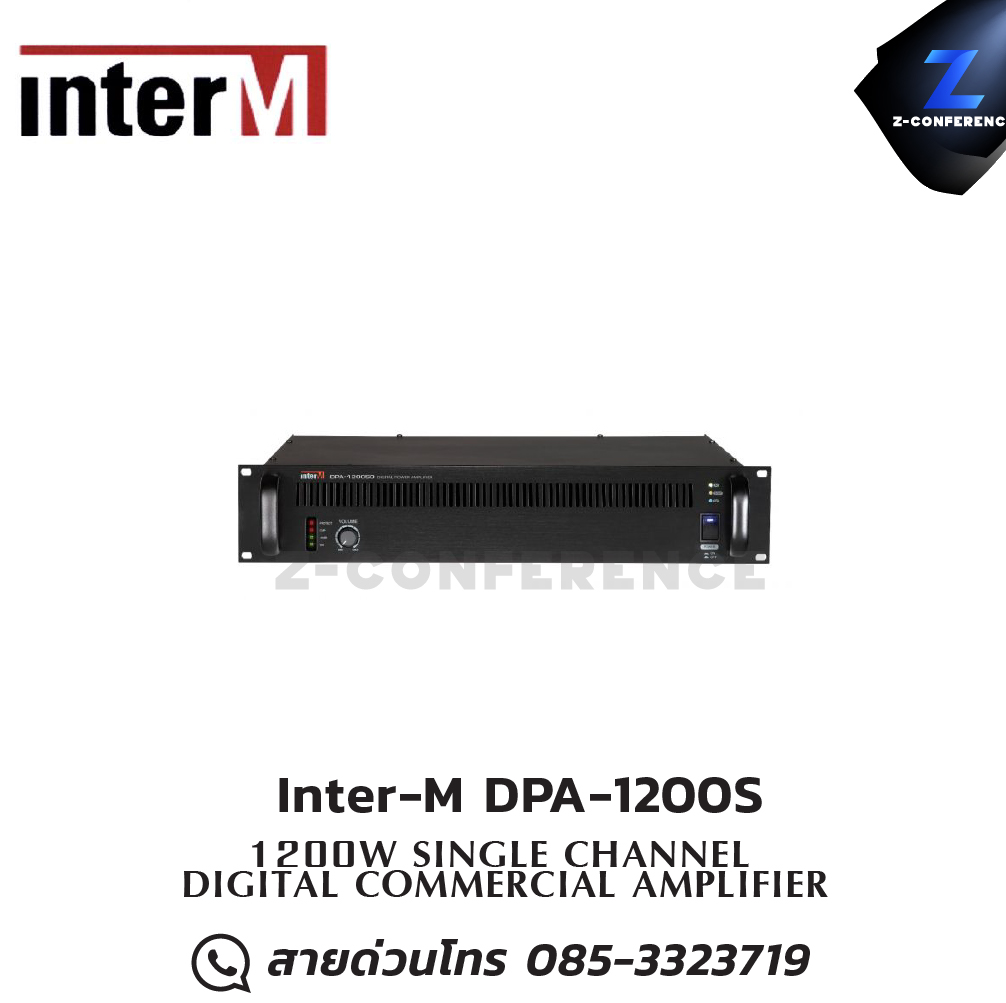

Inter-M DPA-1200S Power Amplifier 1200W , แอมป์ , amplifier, power amp, power amplifier

Features

- High Performance Class-D Power PA Amplifier

High performance Class-D Power amplifiers produce 300/600/900/1200W rated power each channel.

- Emergency Power Back Up (24VDC) Capability

The unit operates on a DC24 V battery power supply for emergency back up without UPS (DPA-SO models are

not included with emergency power back Up (24VDC))

- Rated Output Power Via DC Backup Supply

Output power can be maintained as AC power when 24VDC power supplied.

- Advanced Power Circuitry Design

The combination Class-D type amplification circuitry combined with SMPS creates a high efficiency amplifier

offering reduced power consumption and low heat dissipation and weight.

- High Quality Sound Design

The total harmonic distortion is reduced to less than 0.03% THD, with a high signal to noise S /N ratio of over

103dB

- Advanced Protection Circuitry

Advanced protection circuitry guards against overheating, shorted outputs, DC output, overloads and

mismatched power

- A Variety of operation Indicators

Signal, -10dB signal level, Clip, Protection and system power (AC, DC, STBY) indicators

- Balanced Input

This connection is used to ensure the lowest noise operation which eliminates the common noise from the cable.

- Remote Power ON/OFF

The remote power allows the amplifier to be turned on or off from a distance or other device via dry contact

closure.

- PRIORITY Input

PGM is interrupted and over ridden by the Priority input, when a contact closure is received on the PRI select

terminal. This is Ideal for Emergency message broadcasting applications.

Accessories

Ac Power Cord x1

3P Terminal Block x1

2P Terminal Block x1

2P Terminal Block (Ac Remote power) x1

8P Terminal Block x1

Operation Manual x1

Screws for Rack mount Bracket x4
