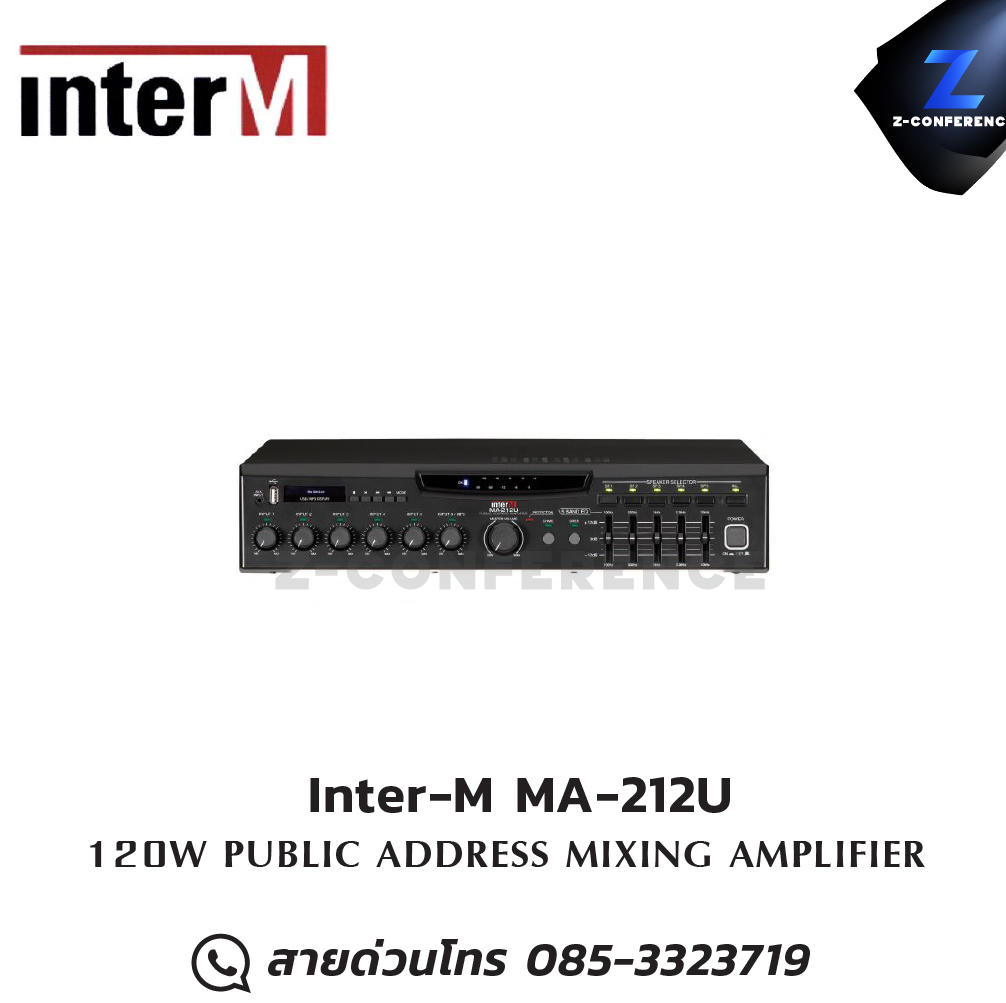

Inter-M MA-212U MIXER Power Amplifier 120W มิกเซอร์ , mixer , มิกเครื่องเสียง , มิกเซอร์ดิจิตอล , มิ๊กดิจิตอล , แอมป์ , amplifier, power amp, power amplifier

Feature

·             Built in MP3 / WMA / WAV player. Audio files are accessible via the front panel USB connector.

·             SMPS – Switch Mode power supply technology design delivers high power output with low-power consumption and low weight.

·             6 input mixer amplifier with 5 microphone or line level selection (line-level input, mic level input, and phantom power)

·             Signal indicator confirms and displays signal present for each input.

·             5-Band Equalizer for precision tone adjustment.

·             Five zone speaker selector switch, allows for independent or all zone broadcast.

·             Front panel CHIME and SIREN with external trigger.

·             External MUTE and Telephone paging input.

·             VCA remote master volume level control.

·             10 segment LED level indicator

SpecificationMA-206U MA-212U MA-224U
Rated Output (RMS) 60W 120W 240W
Frequency Response (SP OUT/1W output) 80Hz - 15kHz
Total harmonic Distortion (T.H.D @ Rated output, 1kHz) Less than 0.5%
Signal to Noise Ratio (S/N @ Rated output) Better than -78dB
GRAPHIC EQUALIZER
(100Hz,330Hz,1kHz,3.3kHz,10kHz) ±12dB
Input sensitivity / Impedance
INPUT 1~5 MIC -50dBu / 2kΩ
LINE -10dBu / 2kΩ
INPUT 6 -10dBu / 10kΩ
TEL IN 0dBu / 10kΩ
EXT IN 0dBu / 20kΩ
AMP IN 0dBu / 47kΩ
MIX OUT / Impedance 0dBu / 10kΩ
Speaker Out /
Impedance LOW-Z 15.5V / 4Ω 22V / 4Ω 31V / 4Ω
HIGH-Z 100V / 167Ω 100V / 83Ω 100V / 42Ω
Operating Temperature -10℃ ~ +40℃ / 14℉ ~ 104℉
Power Source 100–240VAC, 50/60Hz
Power Consumption (1/8W output) 38W 50W 75W
Weight (SET) 5.4kg/11.9lb 6.7kg/14.8lb 8.0kg/17.6lb
Dimension (SET) 420(W) x88(H)x328(D)mm/16.5(W)x3.5(H)x12.9(D)in
