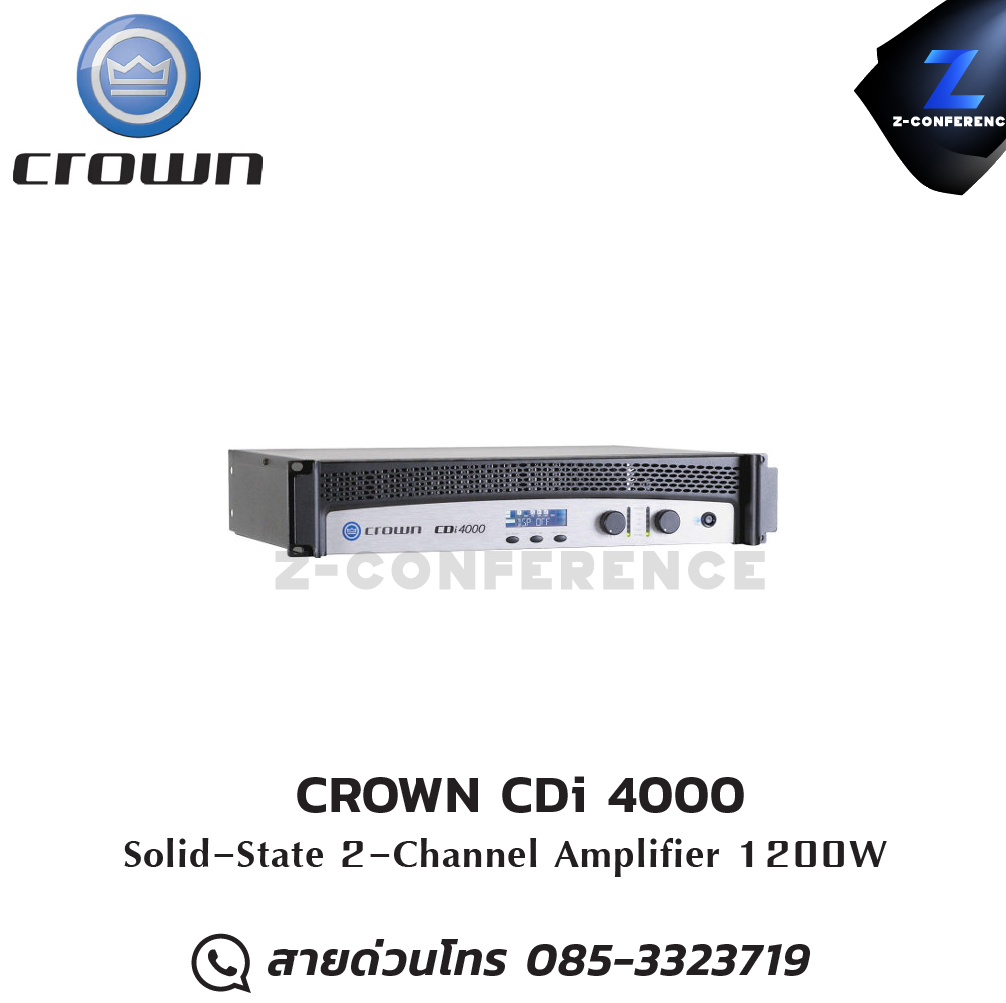

CROWN CDi 4000 Power Amplifier 2ch.1200W , แอมป์ , amplifier, power amp, power amplifier

Frequency Response         20Hz - 20kHz (@ 1W into 4 Ohms)

Sensitivity              1.4V @ 8 Ohms

Signal to Noise Ratio          100dB

Voltage Gain        30.5dB (@ 1kHz, 8 Ohm Rate Output)

Load Impedance Rated for 2-8 Ohms in Stereo Mode

Rated for 4-16 Ohms in Bridge-Mono Mode

Input Impedance 20 kOhms (Nominal)

Output Power       1600W @ 2 Ohm Dual (Per Channel)

1200W @ 4 Ohm Dual (Per Channel)

650W @ 8 Ohm Dual (Per Channel)

3200W @ 4 Ohm Bridge-Mono

1000W @ 70V Dual (Per Channel)

2000W @ 140V Bridge-Mono

Damping Factor   Better than 500 from 20 to 400Hz

Crosstalk               >70dB Below Rated Power, 20Hz to 1kHz

Max Input Signal  +22dBu Typical

Inputs     2 x 3-Pin Removable Phoenix-Type

Outputs  4-Position Barrier Strip with Connectors for Dual Loudspeakers or Bridge-Mono Loudspeaker

Power    100V, 120V-240V, 50/60 Hz

Dimensions (WxHxD)         19 x 3.5 x 12.25" (483 x 89 x 311mm)

Weight   19 lb (8.6 kg)
