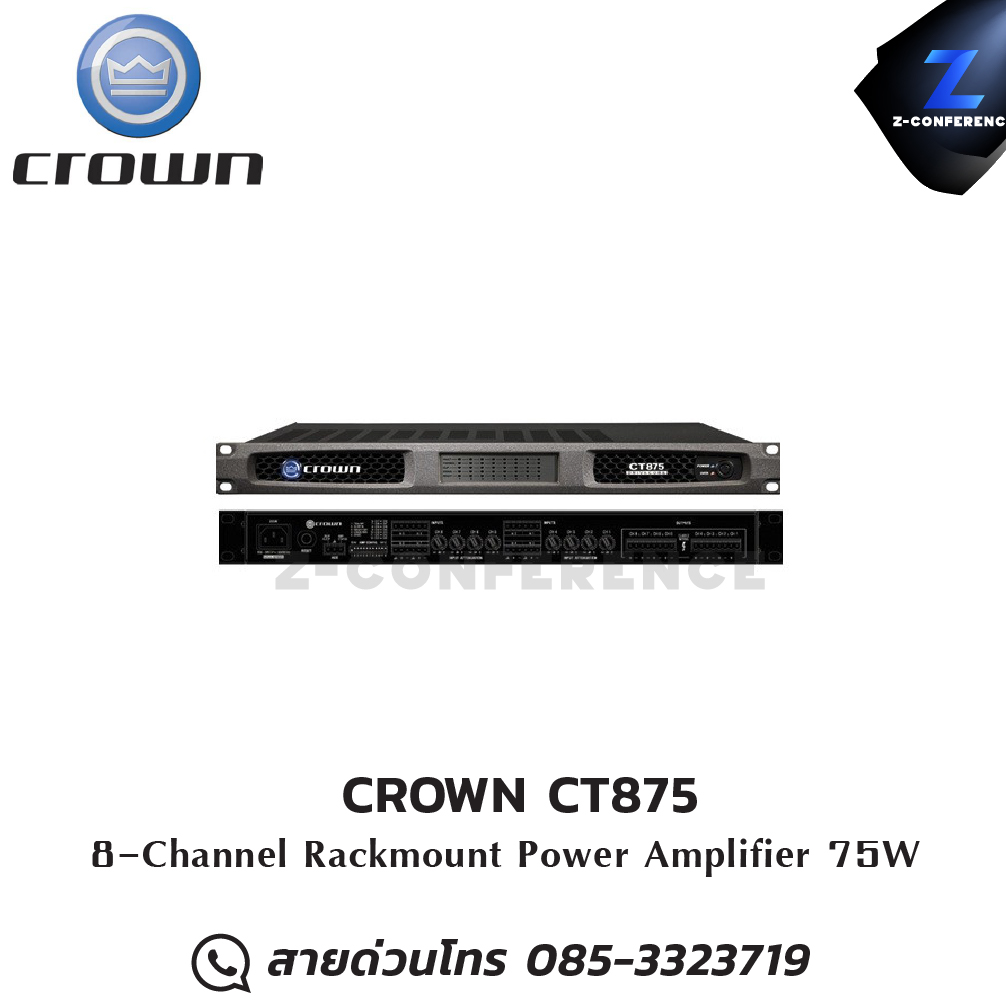

CROWN CT875 Power Amplifier 8 ch. 75W , แอมป์ , amplifier, power amp, power amplifier

Slim 1RU chassis can be installed in any standard equipment rack

Delivers 75W per channel into 8 ohms for strong, clear audio with low distortion

DriveCore technology provides excellent efficiency of over 90% for a fantastic performance to power ratio

No cooling fan required, providing silent operation

Flexible input routing allows you to send an input signal to any of the 4 outputs

Integrated Life-Safety features and patented feedback and protection circuitry protect the amplifier from damage to ensure a lifetime of reliable operation

A universal power supply lets you use the amplifier internationally, ideal for touring applications

Power Rating        75W/Channel @ 8 Ohms

Channels              8

Damping Factor   Not Specified by Manufacturer

Input Sensitivity    1.4V

Frequency Response         20Hz - 20kHz ±0.5dB

Signal-to-Noise Ratio         110dB

Total Harmonic Distortion (THD)      < 0.05%

Intermodulation Distortion (SMPTE)                < 0.05%

Crosstalk               > 70dB

Common Mode Rejection Ratio       > 55dB, > 70dB Typical

Connectors           8 x 3-Pin Phoenix Inputs

8 x 2-Pin Phoenix Outputs

1 x Power Input

Controls 8 x Input Attenuator Knobs

1 x Set of Amp Control DIP-Switches

1 x Power Switch

Indicators              1 x Power LED

8 x Signal LEDs

8 x Clip LEDs

8 x Thermal LEDs

8 x Fault LEDs

Cooling  Convection

Power Consumption           Not Specified by Manufacturer

Power Requirements          Universal Power Supply

Dimensions (HxWxD)         1.75 x 19 x 14.25" (44 x 483 x 362mm)

Weight   10 lbs (4.54kg)
